AT180R-BLMSK (1989)

Toyota Celica

Production Nov 1989 - Nov 1993
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )4AFE

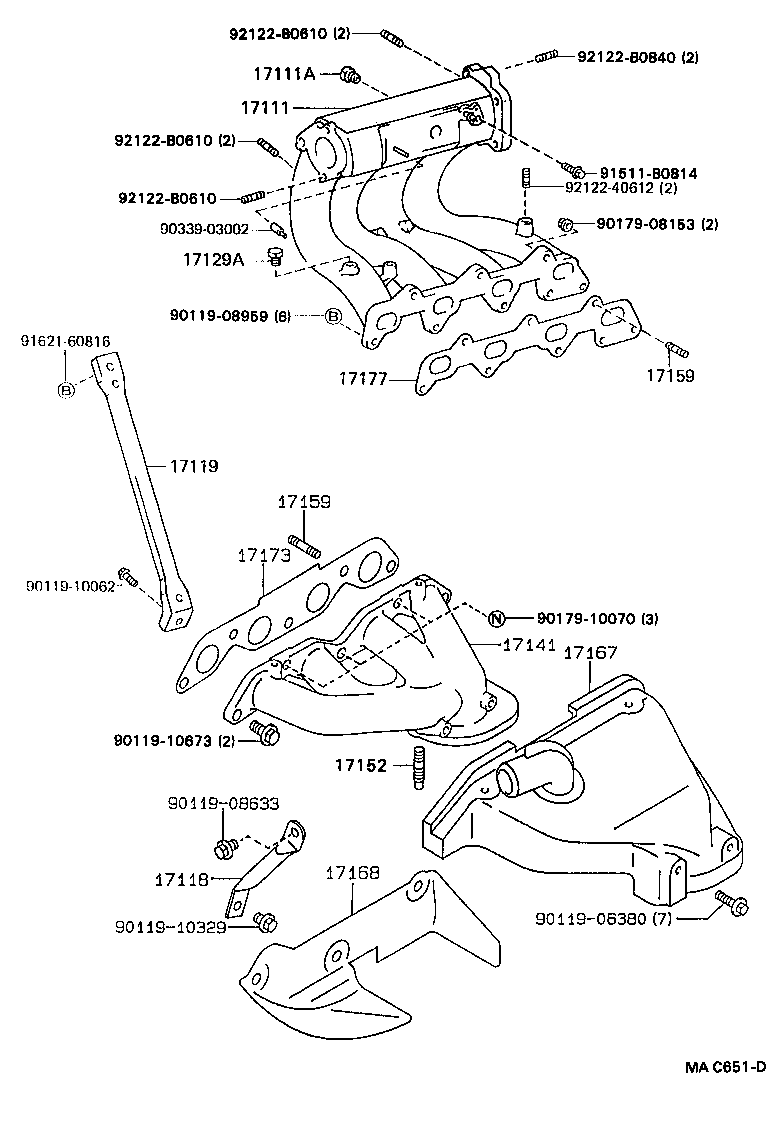

Click highlighted areas on diagram

diagram 17111 17111A 17118 17119 17129A 17141 17152 17159 17159 17167 17168 17173 17177 9011906380 9011908633 9011908959 9011910062 9011910329 9011910673 9017908153 9017910070 9033903002 91511B0814 9162160816 9212240612 92122B0610 92122B0610 92122B0610 92122B0840
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-16170

4AFE..AT180

 1
17111A - PLUG, NO.1
90345-51006

4AFE..AT180

 1
17118 - STAY, MANIFOLD
17118-16050

4AFE..AT180

 1
17119 - STAY, MANIFOLD, NO.2
17139-16030

4AFE..AT180

 1
17129A - UNION, NO.1
90345-51006

4AFE..AT180

 1
17141 - MANIFOLD, EXHAUST
17141-16200

4AFE..AT180

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10146

4AFE..AT180

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61028

4AFE..AT180

EXHAUST MANIFOLD

 3
92112-60825

4AFE..AT180

INTAKE MANIFOLD

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61028

4AFE..AT180

EXHAUST MANIFOLD

 3
92112-60825

4AFE..AT180

INTAKE MANIFOLD

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-16150

4AFE..AT180

 1
17167-16090

4AFE..AT180

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-16050

4AFE..AT180

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-15010

4AFE..AT180

 1
17173-15011

4AFE..AT180

 1
17173-15040

4AFE..AT180

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-16030

4AFE..AT180

 1
17171-16031

4AFE..AT180

 1
Common parts
90119-06380
90119-08633
90119-08959
90119-10062
90119-10329
90119-10673
90179-08153
90179-10070
90339-03002
91511-B0814
91621-60816
92122-40612
92122-B0610
92122-B0840
