AT180L-BLMSK (1989)

Toyota Celica

Production Nov 1989 - Nov 1993
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )AT180..LHD

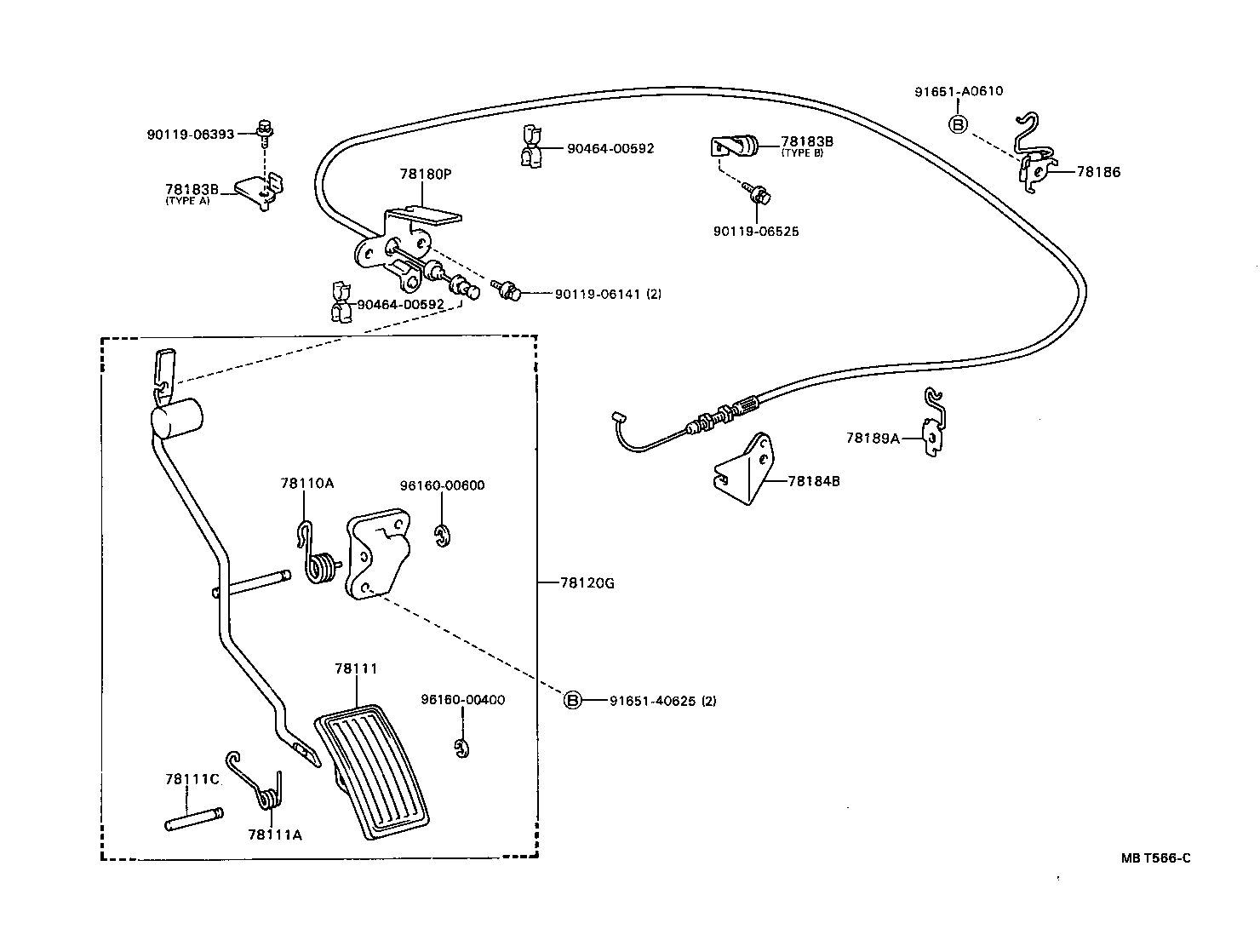

Click highlighted areas on diagram

diagram 78110A 78111 78111A 78111C 78120G 78180P 78183B 78183B 78184B 78186 78189A 9011906141 9011906393 9011906525 9046400592 9046400592 9165140625 91651A0610 9616000400 9616000600
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26062

AT180..LHD

 1
78111 - PEDAL, ACCELERATOR
78111-20030

AT180,ST18#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18050

AT180,ST18#..MTM

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

AT180,ST18#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-20420

AT180..LHD

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2B470

AT180..LHD

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-20040

AT180..LHD

TYPE A

 1
78183-20140

AT180..LHD

TYPE B

 1
78183-20040

AT180

TYPE A

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-20040

AT180..LHD

TYPE A

 1
78183-20140

AT180..LHD

TYPE B

 1
78183-20040

AT180

TYPE A

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-12260

AT180

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-20130

AT180..LHD

 1
78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78186-12260

AT180

 1
Common parts
90119-06141
90119-06393
90119-06525
90464-00592
91651-40625
91651-A0610
96160-00400
96160-00600
