AT180L-BLMSK (1989)

Toyota Celica

Production Nov 1989 - Nov 1993
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )4AFE

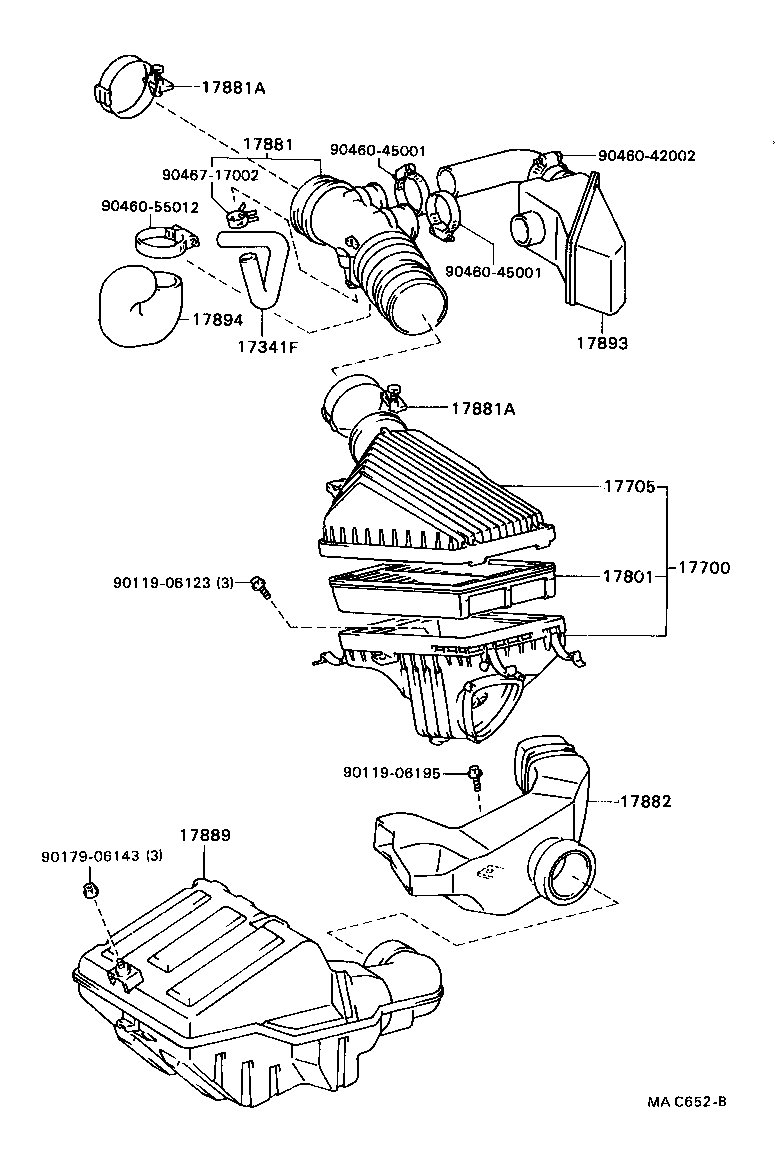

Click highlighted areas on diagram

diagram 17341F 17700 17705 17801 17881 17881A 17881A 17882 17889 17893 17894 9011906123 9011906195 9017906143 9046042002 9046045001 9046045001 9046055012 9046717002
Part # Description Qty Price
17341F - HOSE, AIR, NO.1
17341-15160

4AFE..AT180

 1
17700 - CLEANER ASSY, AIR
17700-16670

4AFE..AT180

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-16350

4AFE..AT180

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-16020

4AFE..AT180

 1
17801-16020

4AFE..AT180

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-15160

4AFE..AT180

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-27004

4AFE..AT180

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-27004

4AFE..AT180

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-74210

4AFE..AT180

 1
17889 - BOX, AIR CLEANER HOSE, NO.2
17889-74040

4AFE..AT180

 1
17893 - RESONATOR, INTAKE AIR
17893-16050

4AFE..AT180

 1
17894 - BRACKET, RESONATOR
17894-16010

4AFE..AT180

 1
Common parts
90119-06123
90119-06195
90179-06143
90460-42002
90460-45001
90460-55012
90467-17002
