AT180L-BCMSK (1989)

Toyota Celica

Production Nov 1989 - Aug 1991
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )AT180..LHD

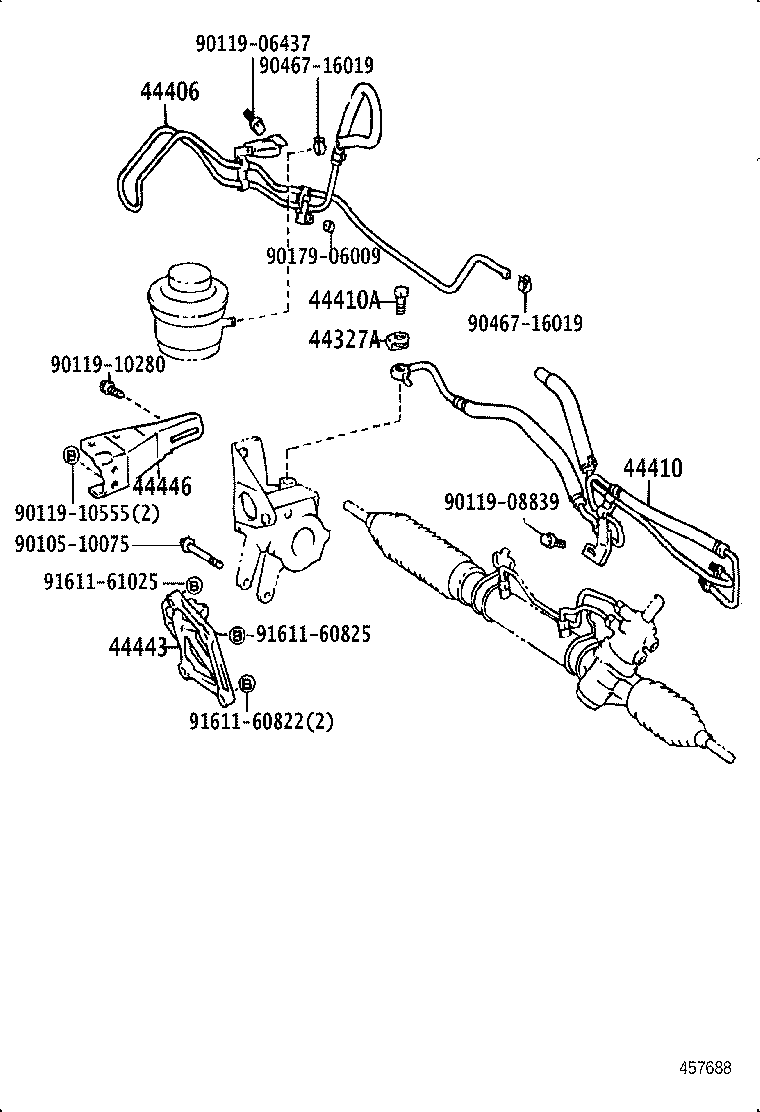

Click highlighted areas on diagram

diagram 44327A 44406 44410 44410A 44443 44446 9010510075 9011906437 9011908839 9011910280 9011910555 9017906009 9046716019 9046716019 9161160822 9161160825 9161161025
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT180,ST18#

 1
44406 - TUBE SUB-ASSY, RETURN
44406-20320

AT180..LHD

 1
Common parts
90105-10075
90119-06437
90119-08839
90119-10280
90119-10555
90179-06009
90467-16019
91611-60822
91611-60825
91611-61025
