AT180L-BCMSK (1989)

Toyota Celica

Production Nov 1989 - Aug 1991
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )AT180

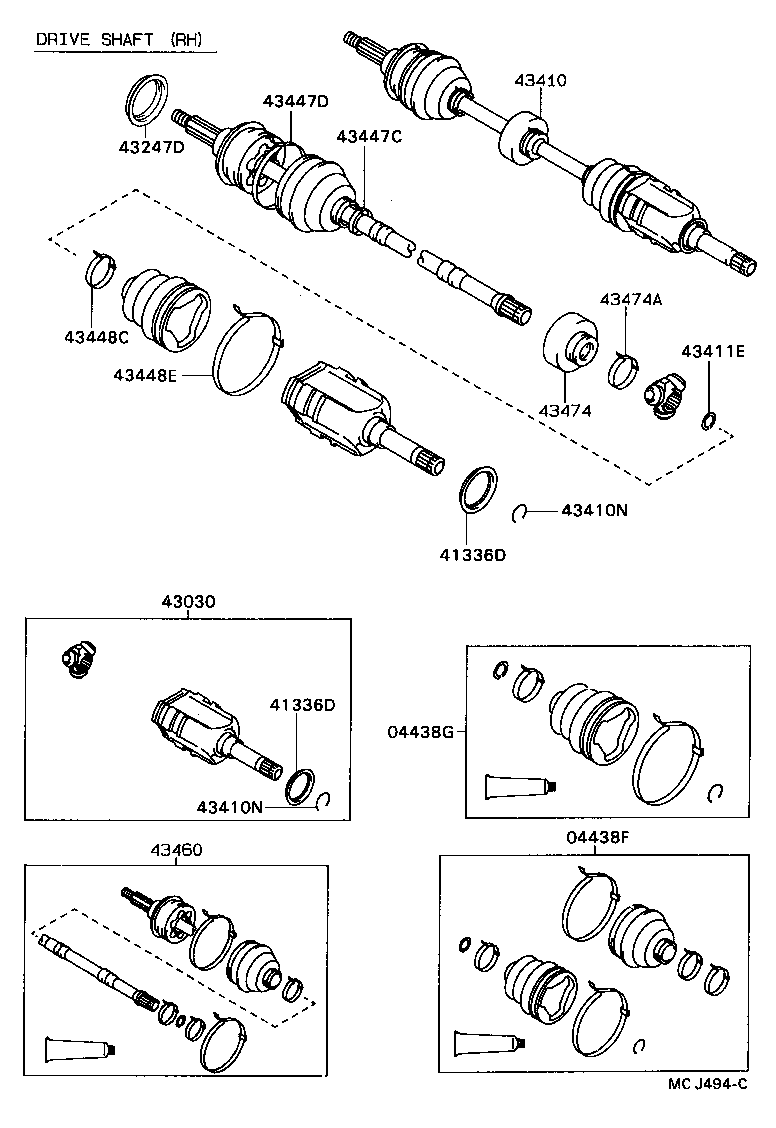

Click highlighted areas on diagram

diagram 04438F 04438G 41336D 41336D 43030 43247D 43410 43410N 43410N 43411E 43447C 43447D 43448C 43448E 43460 43474 43474A
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438-12080

AT180

 1
04438-12170

AT180

 1
04438-12171

AT180

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-12160

AT180

 1
04438-12161

AT180

 1
04438-12070

AT180

 1
43247D - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 RH
43247-32011

AT180,ST18#

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-20151

AT180

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90521-26004

AT180,ST185

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90521-26004

AT180,ST185

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-29097

AT180

 1
43460-29096

AT180

 1
