AT180L-BCMSK (1989)

Toyota Celica

Production Nov 1989 - Aug 1991
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )AT180

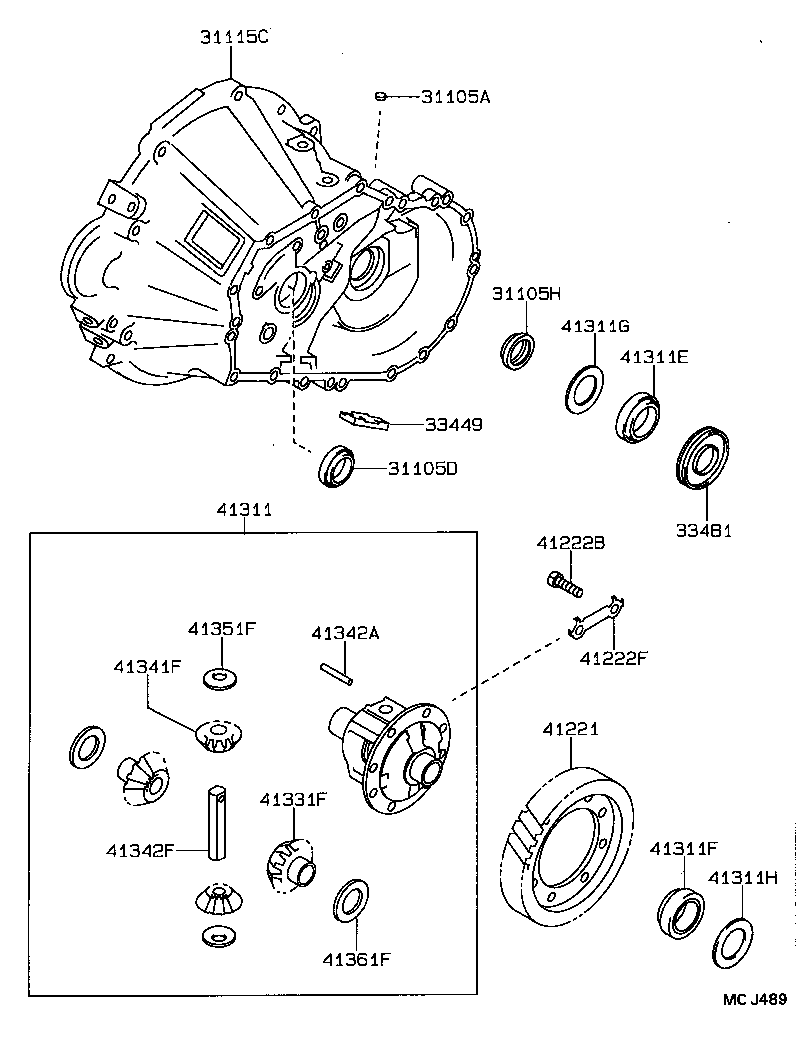

Click highlighted areas on diagram

C52

diagram 31105A 31105D 31105H 31115C 33449 33481 41221 41222B 41222F 41311 41311E 41311F 41311G 41311H 41331F 41341F 41342A 41342F 41351F 41361F
Part # Description Qty Price
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90311-34007

AT180

 1
33449 - MAGNET, TRANSMISSION
33449-12010

AT180

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-12180

AT180

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90101-11353

AT180;ST184..ATM

 8
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

AT180,ST182,184

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-12020

AT180

 1
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22030

AT180,ST182,184..MTM

T=1.10,MARK 03

 2
41361-22020

AT180,ST182,184..MTM

T=1.00,MARK 02

 2
41361-22140

AT180,ST182,184..MTM

T=0.95,MARK 14

 2
41361-22160

AT180,ST182,184..MTM

T=1.15,MARK 16

 2
41361-22040

AT180,ST182,184..MTM

T=1.20,MARK 04

 2
41361-22150

AT180,ST182,184..MTM

T=1.05,MARK 15

 2
