AT160R-BCMVF (1985)
Toyota Celica
Production
Aug 1985
-
Aug 1987
Engine
4AGEL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

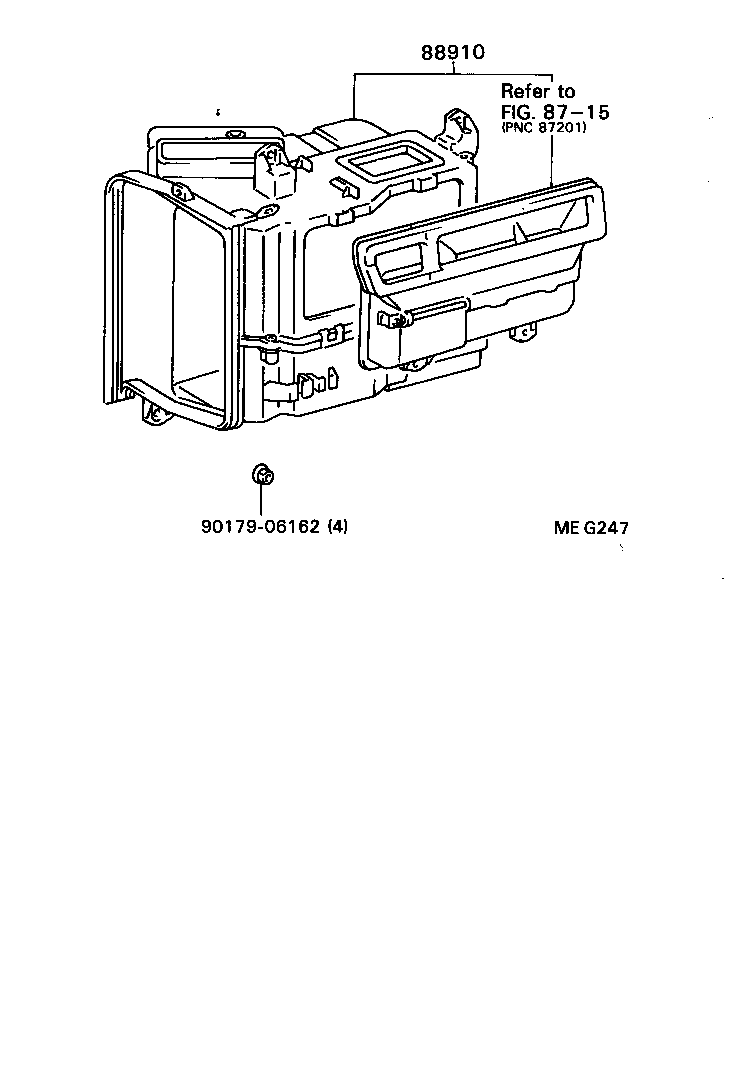

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88910 - VENTILATOR ASSY, BOOST | ||||
| 88910-20150 |
AT160..RHD |
1 | ||
| Common parts | ||||
| 90179-06162 | ||||
| Linked diagrams | ||||
| 8715 | ||||
(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-20170 |
AT160,ST162,182..RHD |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-14030 |
AT160,ST162,182..RHD |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-20340 |
AT160,ST162,182..RHD |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-20160 |
AT160,ST162,182..RHD |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-20100 |
AT160,ST162,182 |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-20370 |
AT160,ST162,182..RHD |
1 | ||
| Common parts | ||||
| 90119-06088 | ||||
| 90179-06162 | ||||
| Linked diagrams | ||||
| 8715 | ||||
