AT160R-BCMVF (1985)
Toyota Celica
Production
Aug 1985
-
Aug 1987
Engine
4AGEL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )CP ; (8508- )LB..ME

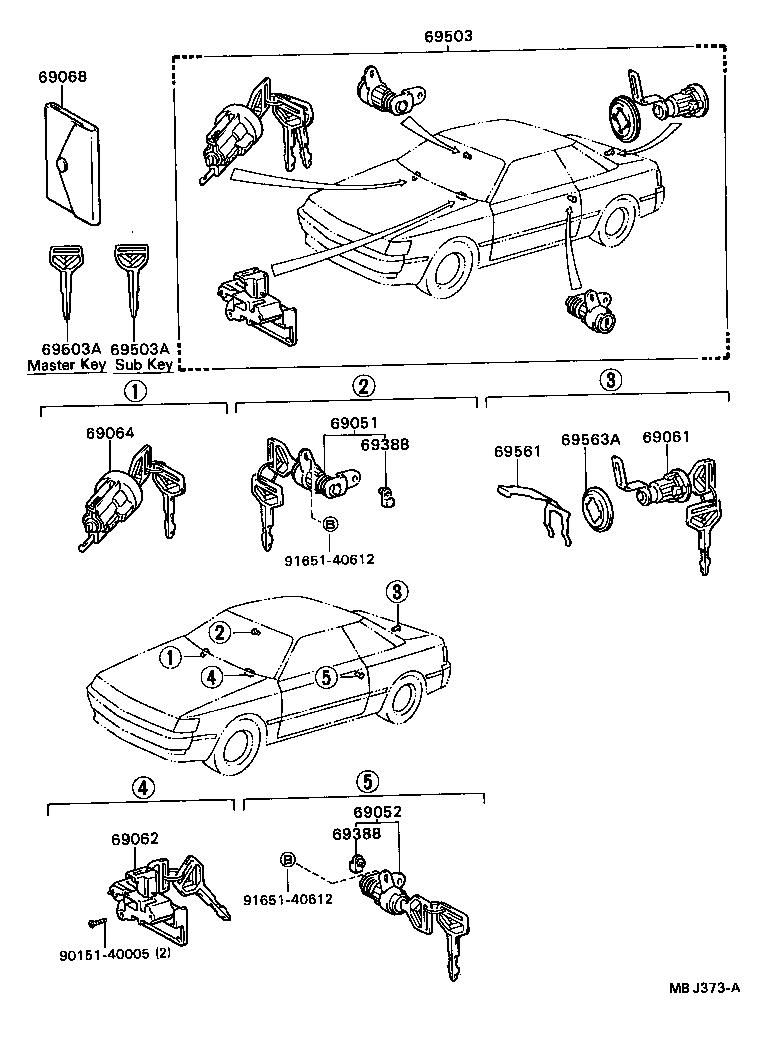

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-20160 |
AT160,ST162..CP |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-20160 |
AT160,ST162..CP |
1 | ||
| 69061 - CYLINDER & KEY SET, LUGGAGE LOCK | ||||
| 69055-20160 |
AT160,ST162..CP |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-20060 |
AT160,ST162..CP |
1 | ||
| 69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-20110 |
AT160..CP W/O *EL |
1 | ||
| 69057-20120 |
AT160,ST162..CP..GT W/*EL |
1 | ||
| 69068 - COVER SUB-ASSY, KEY | ||||
| 69555-20010 |
AT160,ST162,182 |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-30040 |
AT160,ST162,182 RH |
1 | ||
| 69759-30050 |
AT160,ST162,182 LH |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-30040 |
AT160,ST162,182 RH |
1 | ||
| 69759-30050 |
AT160,ST162,182 LH |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-20420 |
AT160..CP W/O *EL |
1 | ||
| 69005-20400 |
AT160,ST162..CP..GT W/*EL |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00085 |
AT160,ST162..CP MASTER KEY,MASTER KEY |
1 | ||
| 90999-00094 |
AT160,ST162..CP SUB KEY,SUB KEY |
1 | ||
| 90999-00106 |
AT160,ST162..CP MASTER KEY,W(*68),MASTER KEY,W/PROTECTOR |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00085 |
AT160,ST162..CP MASTER KEY,MASTER KEY |
1 | ||
| 90999-00094 |
AT160,ST162..CP SUB KEY,SUB KEY |
1 | ||
| 90999-00106 |
AT160,ST162..CP MASTER KEY,W(*68),MASTER KEY,W/PROTECTOR |
1 | ||
| 69561 - RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDE | ||||
| 69561-20070 |
AT160,ST162..CP |
1 | ||
| 69563A - PAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER | ||||
| 69563-20010 |
AT160,ST162..CP |
1 | ||
| Common parts | ||||
| 90151-40005 | ||||
| 91651-40612 | ||||
