AT160L-BLMVF (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

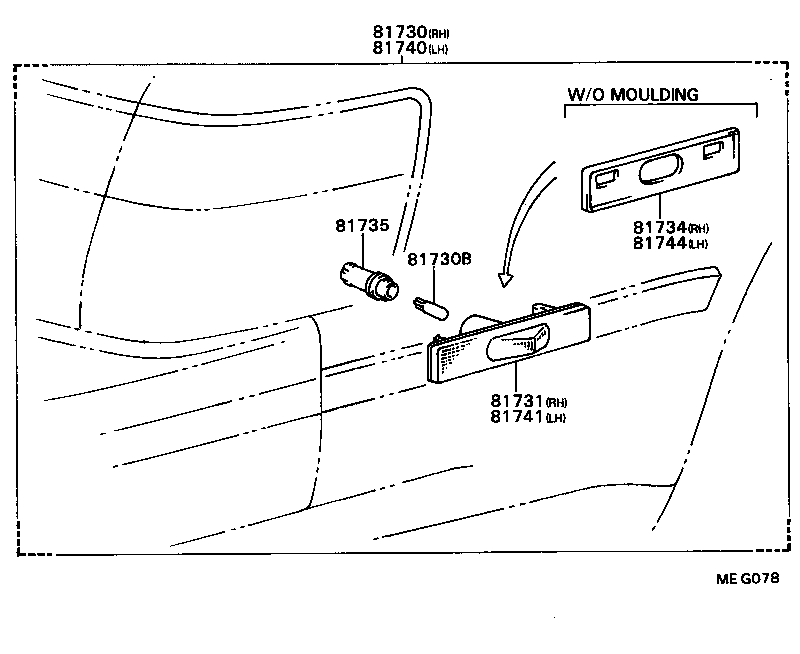

Click highlighted areas on diagram

diagram 81730 81730B 81731 81734 81735 81740 81741 81744
Part # Description Qty Price
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-20130

AT160,ST162,182

W/SIDE PROTECTION MOUL

 1
81730-20131

AT160,ST162,182

W/SIDE PROTECTION MOUL

 1
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
99132-12050

AT160,ST162,182

12V 5W,12V 5W

 2
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-20131

AT160,ST162,182

W/SIDE PROTECTION MOUL

 1
81731-20140

AT160,ST162,182

 1
81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP
81735-12180

AT160,ST162,182

 2
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81740-20130

AT160,ST162,182

W/SIDE PROTECTION MOUL

 1
81740-20131

AT160,ST162,182

W/SIDE PROTECTION MOUL

 1
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81741-20140

AT160,ST162,182

 1
81741-20131

AT160,ST162,182

W/SIDE PROTECTION MOUL

 1
