AT160L-BLMVF (1985)
Toyota Celica

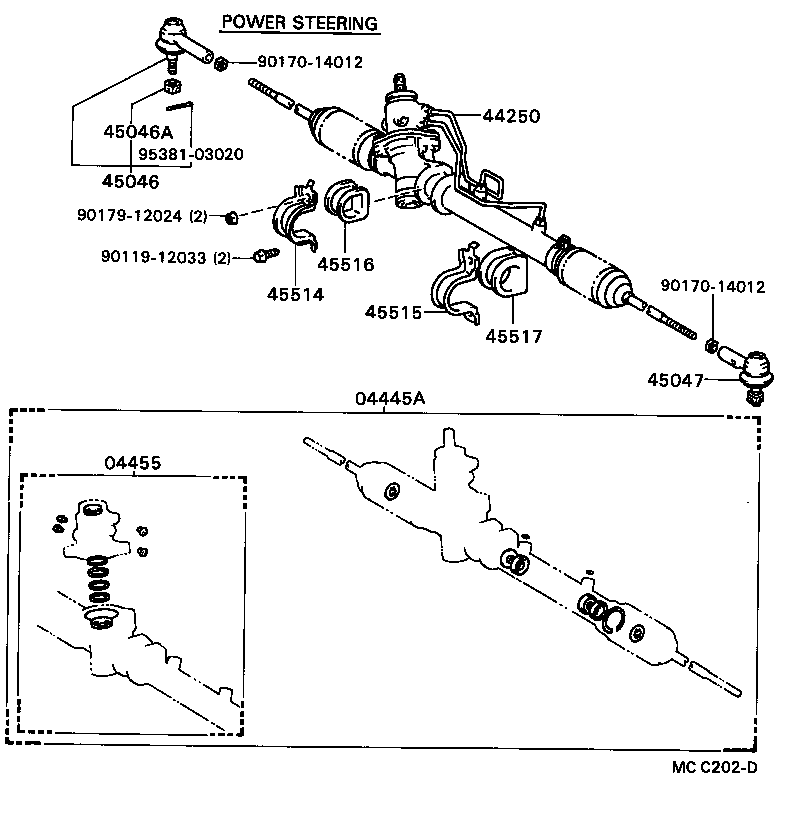

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-20040 |
AT160,ST162,182 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-20050 |
AT160,ST162,182 |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-20120 |
AT160..LHD..TWC |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19175 |
AT160,ST162,182 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AT160,ST162,182 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
AT160,ST162,182 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45515-20030 |
AT160,ST162..LHD..TWC |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45514-20010 |
AT160,ST162..LHD |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45517-12060 |
AT160,ST162..LHD W/POWER STEERING |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45516-20010 |
AT160,ST162..LHD |
1 | ||
| Common parts | ||||
| 90119-12033 | ||||
| 90170-14012 | ||||
| 90179-12024 | ||||
| 95381-03020 | ||||

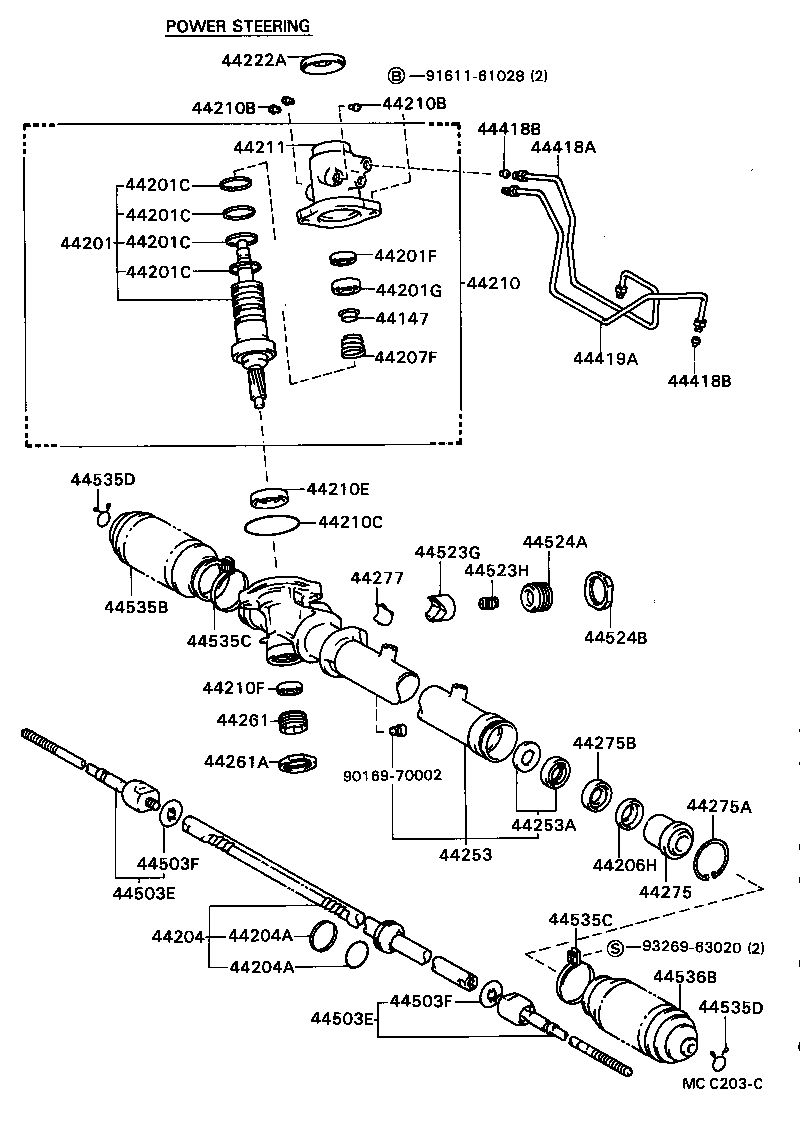

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44147 - SEAT, SPOOL VALVE SPRING | ||||
| 44147-24020 |
AT160,ST162,182 |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-20060 |
AT160,ST162..LHD |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-38001 |
AT160,ST162,182 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-38001 |
AT160,ST162,182 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-38001 |
AT160,ST162,182 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-38001 |
AT160,ST162,182 |
4 | ||
| 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19006 |
AT160,ST162,182 |
1 | ||
| 44201G - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19002 |
AT160,ST162,182 |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-20070 |
AT160,ST162..LHD |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-33003 |
AT160,ST162,182 INNER |
1 | ||
| 90562-37001 |
AT160,ST162,182 OUTER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-33003 |
AT160,ST162,182 INNER |
1 | ||
| 90562-37001 |
AT160,ST162,182 OUTER |
1 | ||
| 44206H - SPACER, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-27007 |
AT160,ST162,182 |
1 | ||
| 44207F - SPRING, CONICAL(FOR VALVE CAP SUB-ASSY) | ||||
| 90502-15001 |
AT160,ST162,182 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-20090 |
AT160..LHD..TWC |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06002 |
AT160,ST162,182 TUBE SIDE |
2 | ||
| 90410-05004 |
AT160..TWC ACV SIDE |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06002 |
AT160,ST162,182 TUBE SIDE |
2 | ||
| 90410-05004 |
AT160..TWC ACV SIDE |
1 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 96711-24060 |
AT160,ST162,182 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90310-31001 |
AT160,ST162,182 |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-13002 |
AT160,ST162,182 |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-20090 |
AT160..LHD..TWC |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-20020 |
AT160,ST162,182 |
1 | ||
| 44253 - HOUSING, POWER STEERING RACK | ||||
| 44203-20080 |
AT160,ST162..LHD |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90999-99131 |
AT160,ST162,182 |
1 | ||
| 44261 - NUT, BEARING GUIDE | ||||
| 45524-16010 |
AT160,ST162,182 |
1 | ||
| 44261A - NUT(FOR BEARING GUIDE NUT) | ||||
| 90179-36002 |
AT160,ST162,182 |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-20040 |
AT160,ST162,182 |
1 | ||
| 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) | ||||
| 90521-50002 |
AT160,ST162,182 |
1 | ||
| 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-26002 |
AT160,ST162,182 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-20020 |
AT160,ST162,182 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-20070 |
AT160,ST162..LHD |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04003 |
AT160,ST162,182 RACK HOUSING SIDE |
2 | ||
| 96390-71200 |
AT160,ST162,182 CONTROL VALVE SIDE |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04003 |
AT160,ST162,182 RACK HOUSING SIDE |
2 | ||
| 96390-71200 |
AT160,ST162,182 CONTROL VALVE SIDE |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-20060 |
AT160,ST162..LHD |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29105 |
AT160,ST162,182 |
2 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29105 |
AT160,ST162,182 |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
AT160,ST162,182 |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
AT160,ST162,182 |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-20020 |
AT160,ST162,182 |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23007 |
AT160,ST162,182 |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16010 |
AT160,ST162,182 |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
AT160,ST162,182 |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-20050 |
AT160,ST162,182 |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90949-01081 |
AT160,ST162,182 |
2 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90949-01081 |
AT160,ST162,182 |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
AT160,ST162,182 |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
AT160,ST162,182 |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-20050 |
AT160,ST162,182 |
1 | ||
| Common parts | ||||
| 90169-70002 | ||||
| 91611-61028 | ||||
| 93269-63020 | ||||
