AT160L-BLMSS (1985)
Toyota Celica
Production
Aug 1985
-
Aug 1987
Engine
4AL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

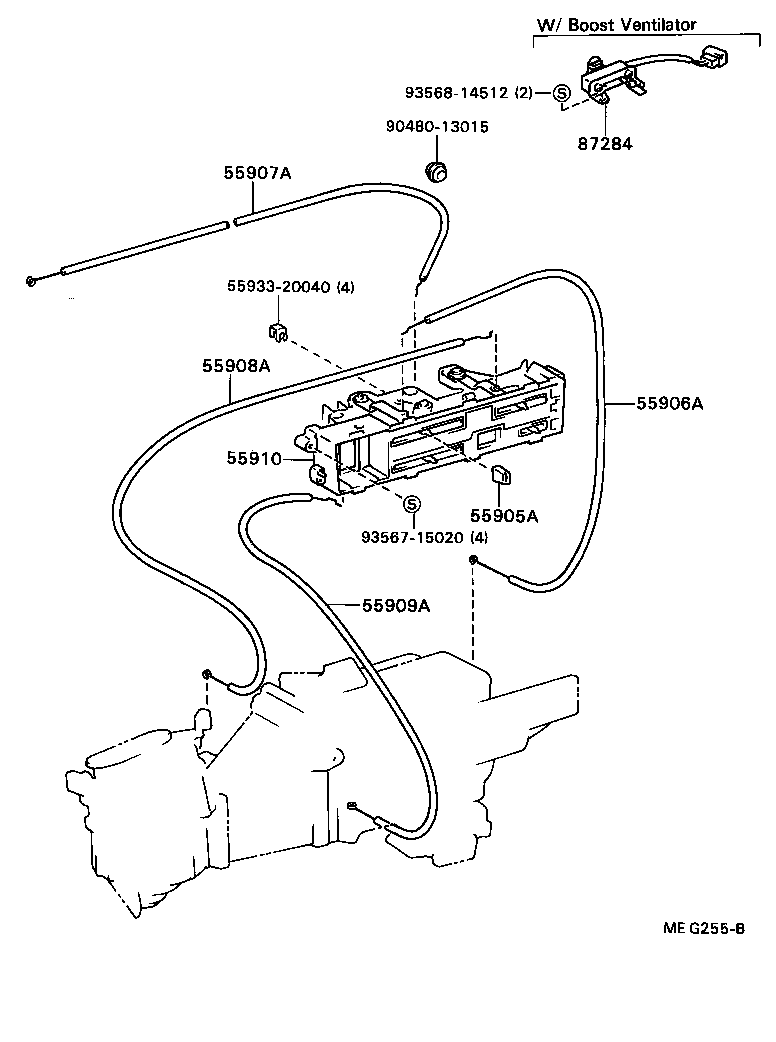

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12070 |
AT160,ST162,182 |
4 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-20230 |
AT160,ST162..LHD |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-20190 |
AT160,ST162..LHD |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-20110 |
AT160,ST162..LHD |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-20060 |
AT160,ST162..LHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-20390 |
AT160,ST162..LHD W/HEATER |
1 | ||
| 55910-20400 |
AT160,ST162..LHD W/*BV |
1 | ||
| 55910-20430 |
AT160,ST162..LHD W/*BV & COOLER |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-20080 |
AT160,ST162..LHD |
1 | ||
| Common parts | ||||
| 55933-20040 | ||||
| 90480-13015 | ||||
| 93567-15020 | ||||
| 93568-14512 | ||||
(8508- )LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-20160 |
AT160,ST162..LHD |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87220-20020 |
AT160,ST162..LHD |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-20100 |
AT160,ST162..LHD |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87202-20020 |
AT160,ST162,182 |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55086-20060 |
AT160,ST162..LHD |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55085-20070 |
AT160,ST162..LHD W/COOLER |
1 | ||
| 55085-20080 |
AT160,ST162..LHD |
1 | ||
| 87215B - DUCT, AIR, SIDE NO.3 LH | ||||
| 55084-20120 |
AT160,ST162..LHD |
1 | ||
| Common parts | ||||
| 90159-60125 | ||||
| 93568-55014 | ||||
