AT160L-BLMSS (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 4AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

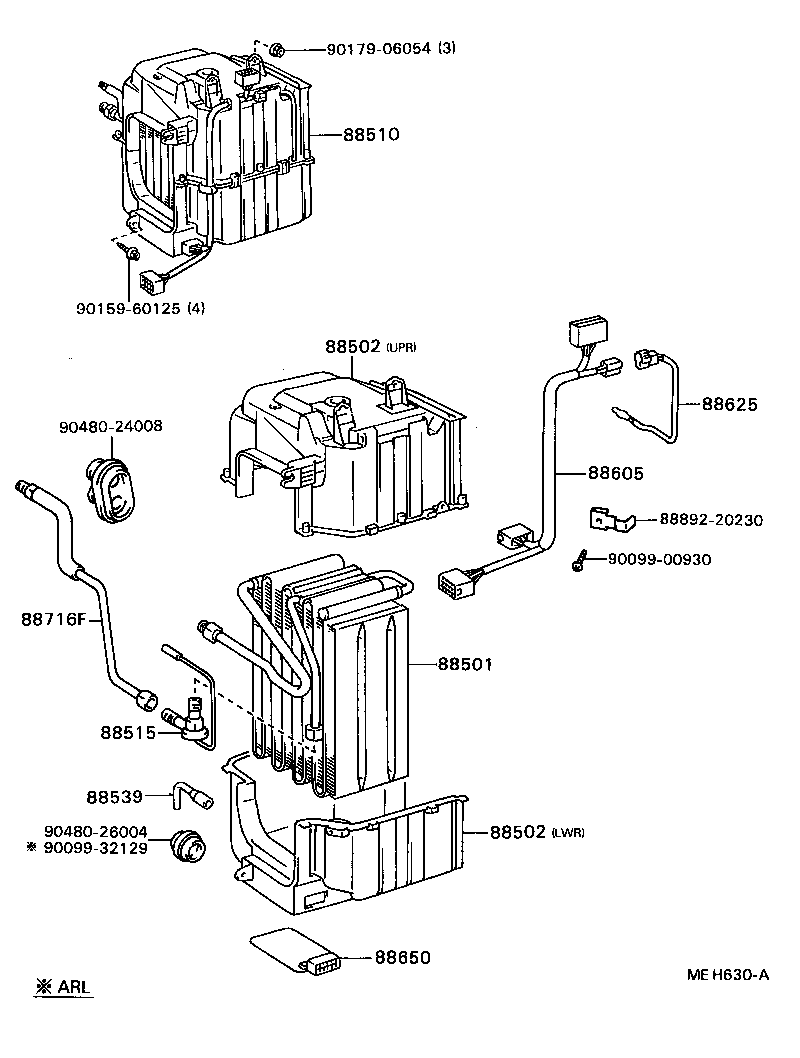

Click highlighted areas on diagram

diagram 88501 88502 88502 88510 88515 88539 88605 88625 88650 88716F 8889220230 9009900930 9009932129 9015960125 9017906054 9048024008 9048026004
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20210

AT160,ST162..LHD

 1
88501-20211

AT160,ST162..LHD

 1
88510 - UNIT ASSY, COOLER
88510-20410

AT160,ST162..LHD

 1
88510-20380

AT160,ST162..LHD

W/HEATER

 1
88515 - VALVE, COOLER EXPANSION
88515-16031

AT160,ST162,182

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-20130

AT160,ST162,182

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-20620

AT160,ST162..GEN,ME

 1
88605-20590

AT160,ST162..GT,ST

W/HEATER

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12070

AT160,ST162,182

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20241

AT160,ST162..GT,ST

W/HEATER

 1
88650-20250

AT160,ST162..GEN,ME

 1
88650-20251

AT160,ST162..GEN,ME

 1
88650-20240

AT160,ST162..GEN,ME

W/HEATER

 1
Common parts
88892-20230
90099-00930
90099-32129
90159-60125
90179-06054
90480-24008
90480-26004
