AT160L-BLMSS (1985)
Toyota Celica
Production
Aug 1985
-
Aug 1987
Engine
4AL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

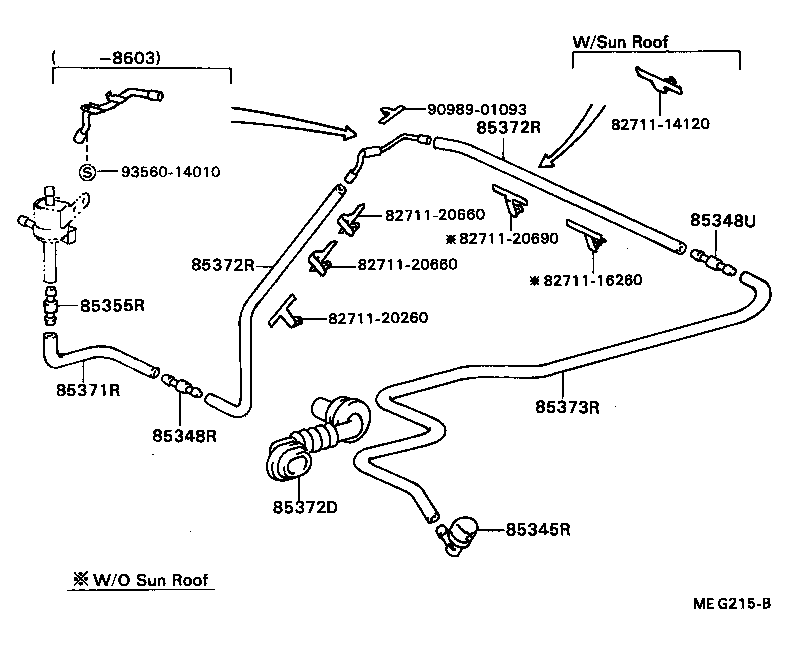

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85345R - NOZZLE, REAR WASHER | ||||
| 85035-20160 |
AT160,ST162,182..LB |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AT160,ST162,182..LB |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85355-20080 |
AT160,ST162,182..LB |
1 | ||
| 85355R - VALVE, REAR WASHER HOSE | ||||
| 85031-12250 |
AT160,ST162,182..LB |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
AT160,ST162,182..LB *H,L=300 |
1 | ||
| 85372D - GROMMET, REAR WASHER HOSE | ||||
| 85372-14020 |
AT160,ST162,182..LB |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33382 |
AT160,ST162,182..LB *H,L=1020 |
1 | ||
| 90099-33299 |
AT160,ST162,182..LB *H,L=695 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33382 |
AT160,ST162,182..LB *H,L=1020 |
1 | ||
| 90099-33299 |
AT160,ST162,182..LB *H,L=695 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
AT160,ST162,182..LB *H,L=600 |
1 | ||
| Common parts | ||||
| 82711-14120 | ||||
| 82711-16260 | ||||
| 82711-20260 | ||||
| 82711-20660 | ||||
| 82711-20690 | ||||
| 90989-01093 | ||||
| 93560-14010 | ||||
