AT160L-BLMSS (1985)
Toyota Celica
Production
Aug 1985
-
Aug 1987
Engine
4AL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

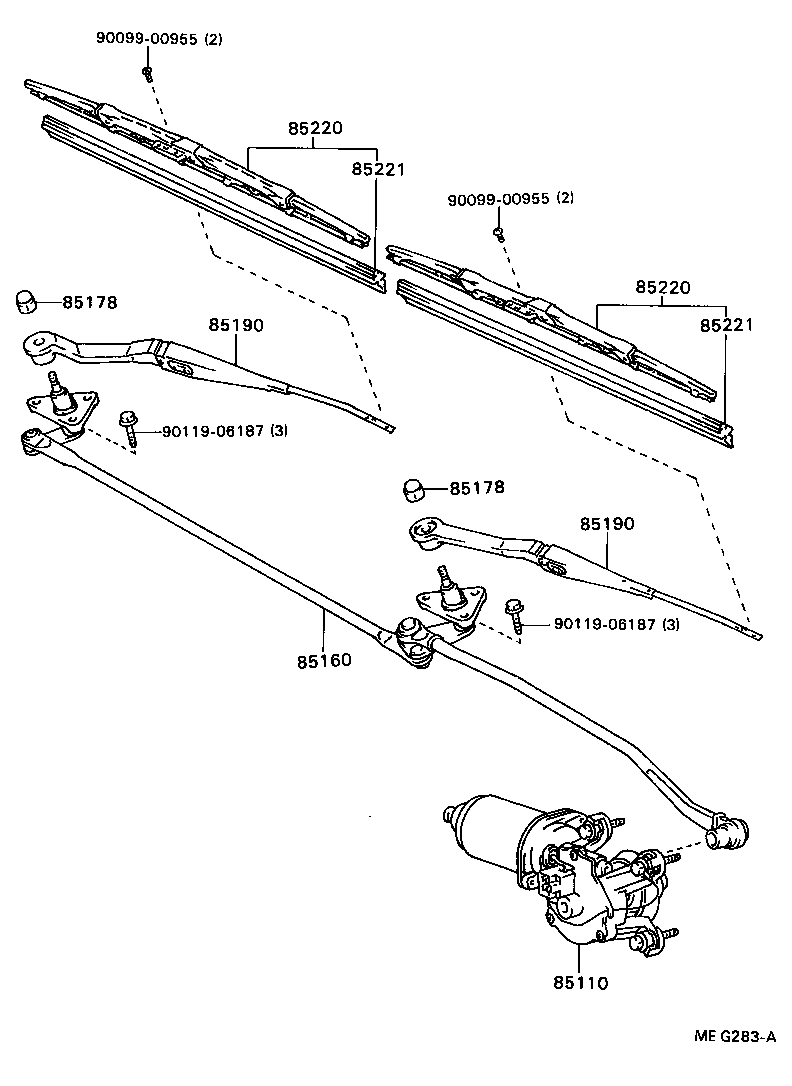

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-20250 |
AT160,ST162..LHD |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85160-20160 |
AT160,ST162..LHD |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-08033 |
AT160,ST162,182 |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-08033 |
AT160,ST162,182 |
2 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85210-20140 |
AT160,ST162..LHD RH |
1 | ||
| 85190-20430 |
AT160,ST162..LHD LH |
1 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85210-20140 |
AT160,ST162..LHD RH |
1 | ||
| 85190-20430 |
AT160,ST162..LHD LH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-16340 |
AT160,ST162..LHD RH |
1 | ||
| 85220-32280 |
AT160,ST162..LHD LH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-16340 |
AT160,ST162..LHD RH |
1 | ||
| 85220-32280 |
AT160,ST162..LHD LH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-30100 |
AT160,ST162..LHD RH |
1 | ||
| 85221-32060 |
AT160,ST162..LHD LH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-30100 |
AT160,ST162..LHD RH |
1 | ||
| 85221-32060 |
AT160,ST162..LHD LH |
1 | ||
| Common parts | ||||
| 90099-00955 | ||||
| 90119-06187 | ||||
