AT160L-BLMSS (1985)
Toyota Celica
(8508- )AT160

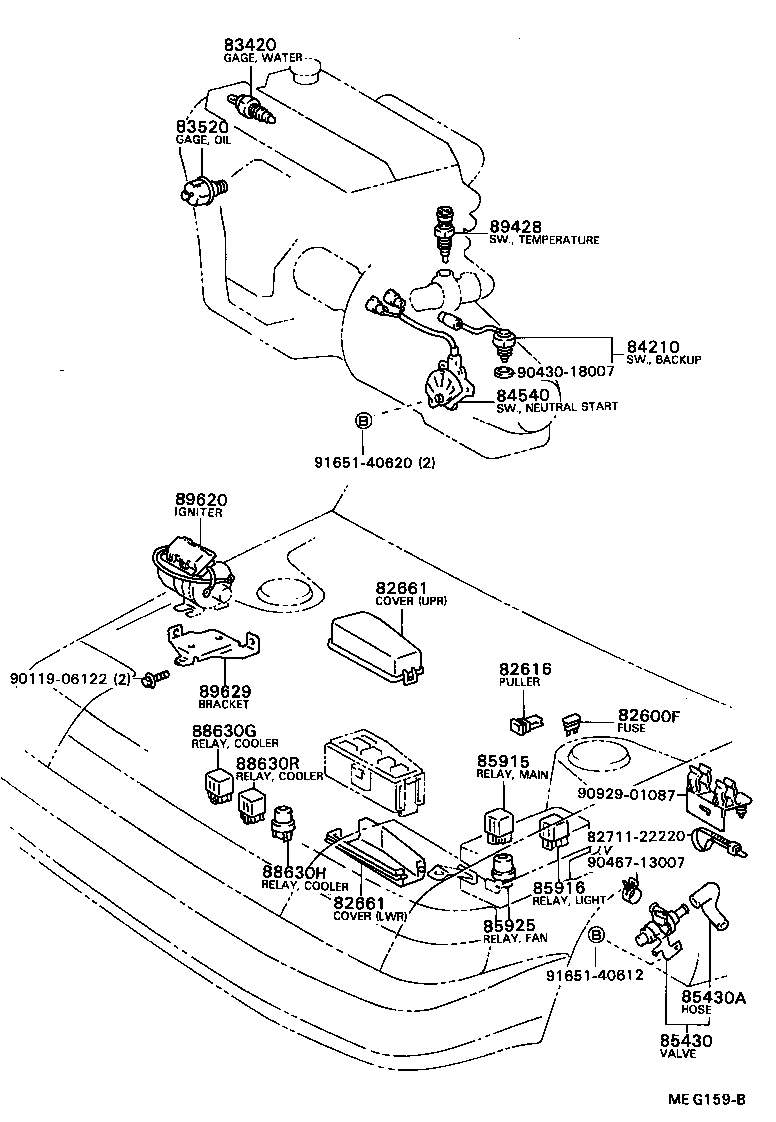

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AT160,ST162,182 7.5A,7.5A |
4 | ||
| 90982-07011 |
AT160,ST162,182 30A,GREEN,30A |
2 | ||
| 90982-09003 |
AT160,ST162,182 15A,15A |
7 | ||
| 90982-09004 |
AT160,ST162,182 20A,YELLOW,20A |
1 | ||
| 90982-09002 |
AT160,ST162,182 10A,10A |
4 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
AT160,ST162,182 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-20080 |
AT160,ST162,182 UPR |
1 | ||
| 82661-20110 |
AT160,ST162,182 LWR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-20080 |
AT160,ST162,182 UPR |
1 | ||
| 82661-20110 |
AT160,ST162,182 LWR |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
AT160..CBR |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-14022 |
AT160 |
1 | ||
| 83520-14023 |
AT160 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
AT160,ST162,182..5F |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 90925-09007 |
AT160..CBR |
1 | ||
| 85430A - HOSE | ||||
| 23829-16010 |
AT160..CBR |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AT160,ST162,182 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
AT160,ST162,182 TAIL,DENSO |
1 | ||
| 90987-02002 |
AT160,ST162,182 TAIL,MARUKO |
1 | ||
| 90987-02006 |
AT160,ST162,182 HEAD |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
AT160,ST162,182 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
AT160,ST162,182 A.C FAN NO.2 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AT160,ST162,182 A.C FAN NO.3 |
1 | ||
| 88630R - RELAY ASSY, COOLER, NO.3 | ||||
| 85926-30020 |
AT160,ST162,182 A.C MG RELAY |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15011 |
AT160 |
1 | ||
| Common parts | ||||
| 82711-22220 | ||||
| 90119-06122 | ||||
| 90430-18007 | ||||
| 90467-13007 | ||||
| 90929-01087 | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||

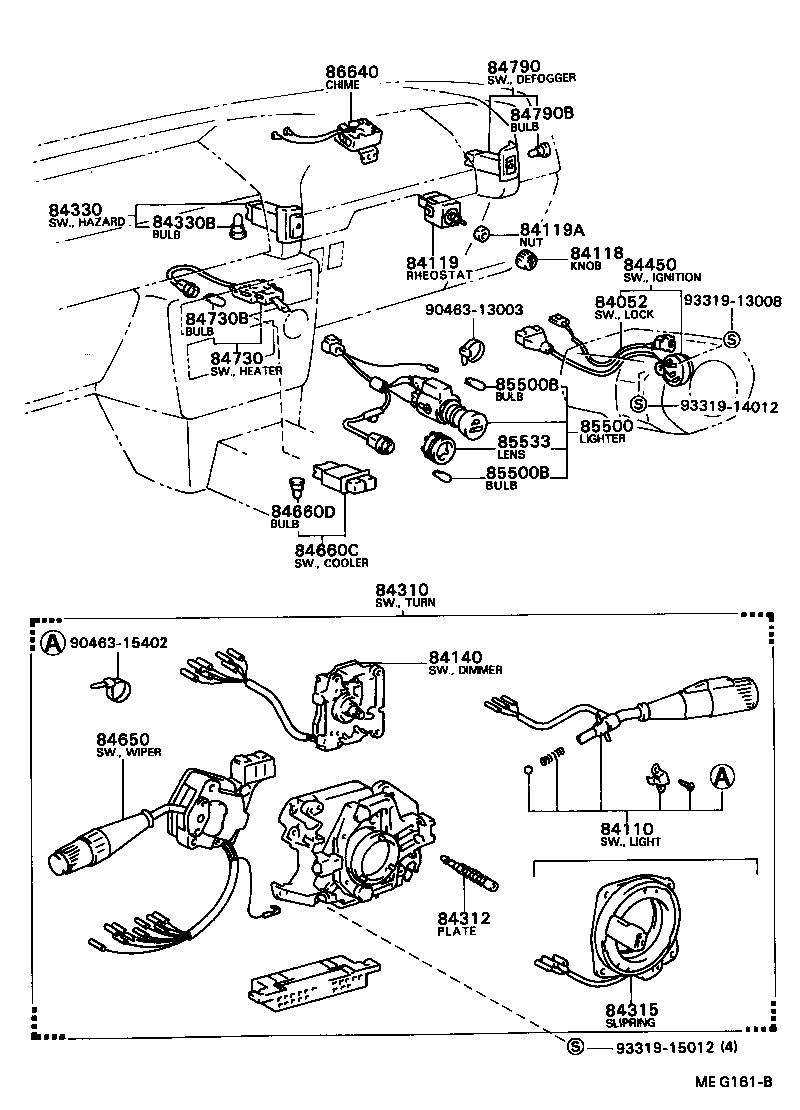

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29465 |
AT160..LHD |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20011 |
AT160,ST162,182 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20082 |
AT160,ST162,182 |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09167 |
AT160,ST162,182 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20170 |
AT160..LHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-2B620 |
AT160..CBR |
1 | ||
| 84310-2B600 |
AT160..LHD W/*IW |
1 | ||
| 84310-2B580 |
AT160..LB..LHD W/*RW |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32010 |
AT160,ST162,182 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-2017003 |
AT160,ST162..LHD GRAY,SHADOW GRAY |
1 | ||
| 84332-2017004 |
AT160,ST162..LHD BLUE,DEEP BLUE |
1 | ||
| 84332-2017006 |
AT160,ST162..LHD BROWN,BROWN |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10160 |
AT160,ST162,182 12V 1.8W,12V 1.8W |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-20170 |
AT160 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-20850 |
AT160..CBR |
1 | ||
| 84652-20840 |
AT160..LHD W/*IW |
1 | ||
| 84652-2B050 |
AT160..LHD MATSUSHITA,W/*IW |
1 | ||
| 84652-20890 |
AT160..LB..LHD W/*RW |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20100 |
AT160,ST162..LHD |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-20060 |
AT160,ST162,182 14V 0.08A,12V 1.12W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20160 |
AT160,ST162,182 |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AT160,ST162,182 14V 1.4W,12V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-2017004 |
AT160..LHD BLUE,DEEP BLUE |
1 | ||
| 84790-2017006 |
AT160..LHD BROWN,BROWN |
1 | ||
| 84790-2017003 |
AT160..LHD GRAY,SHADOW GRAY |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10160 |
AT160..LHD 12V 1.8W,12V 1.8W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20200 |
AT160,ST162,182 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
AT160,ST162,182 14V 1.4W,12V 1.4W |
2 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
AT160,ST162,182 14V 1.4W,12V 1.4W |
2 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20010 |
AT160,ST162,182 |
1 | ||
| Common parts | ||||
| 90463-13003 | ||||
| 90463-15402 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

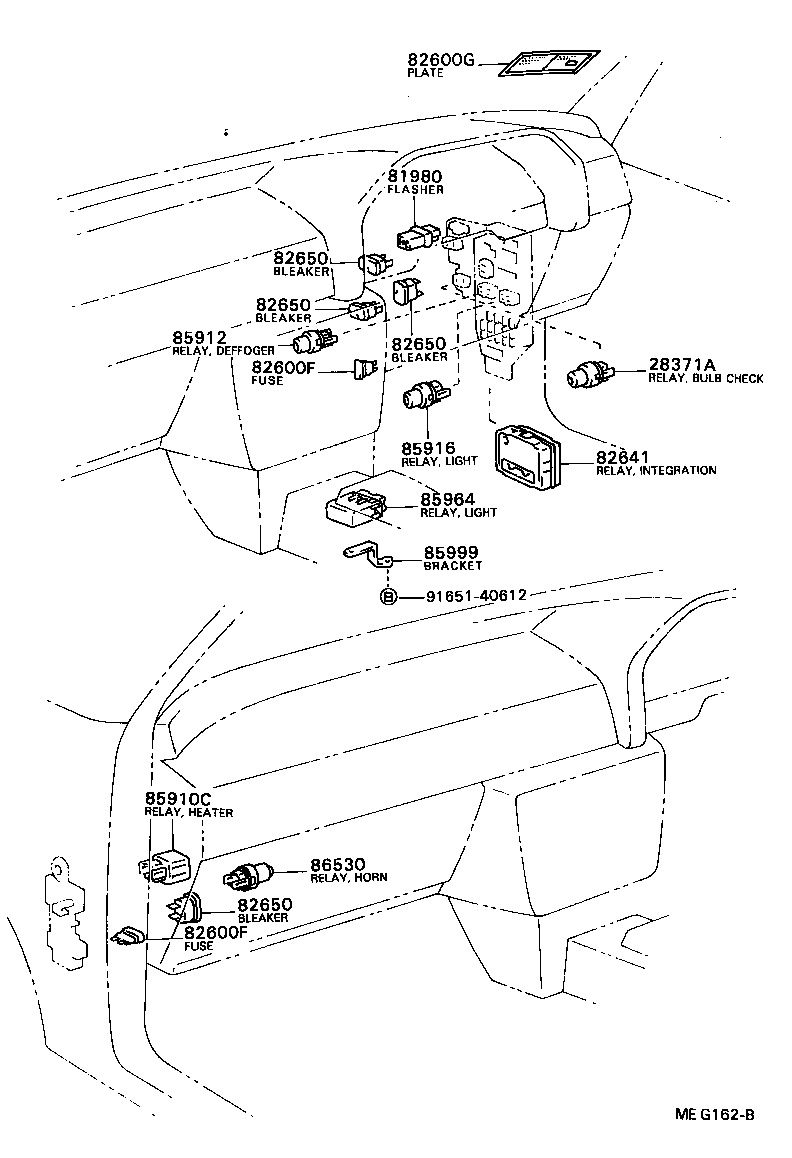

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
AT160,ST162,182 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AT160,ST162,182 7.5A,7.5A |
4 | ||
| 90982-07011 |
AT160,ST162,182 30A,GREEN,30A |
2 | ||
| 90982-09003 |
AT160,ST162,182 15A,15A |
7 | ||
| 90982-09004 |
AT160,ST162,182 20A,YELLOW,20A |
1 | ||
| 90982-09002 |
AT160,ST162,182 10A,10A |
4 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AT160,ST162,182 7.5A,7.5A |
4 | ||
| 90982-07011 |
AT160,ST162,182 30A,GREEN,30A |
2 | ||
| 90982-09003 |
AT160,ST162,182 15A,15A |
7 | ||
| 90982-09004 |
AT160,ST162,182 20A,YELLOW,20A |
1 | ||
| 90982-09002 |
AT160,ST162,182 10A,10A |
4 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82685-20010 |
AT160,ST162,182 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AT160,ST162,182 30A,30A |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AT160,ST162,182 30A,30A |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AT160,ST162,182 30A,30A |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AT160,ST162,182 30A,30A |
3 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AT160,ST162,182 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
AT160,ST162,182 DENSO |
1 | ||
| 90987-02002 |
AT160,ST162,182 MARUKO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
AT160,ST162,182 TAIL,DENSO |
1 | ||
| 90987-02002 |
AT160,ST162,182 TAIL,MARUKO |
1 | ||
| 90987-02006 |
AT160,ST162,182 HEAD |
1 | ||
| 85964 - RELAY, LIGHT RETRACTOR | ||||
| 85964-17010 |
AT160,ST162,182 |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-20140 |
AT160..CBR |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02002 |
AT160,ST162,182 MARUKO |
1 | ||
| 90987-02004 |
AT160,ST162,182 DENSO |
1 | ||
| Common parts | ||||
| 91651-40612 | ||||

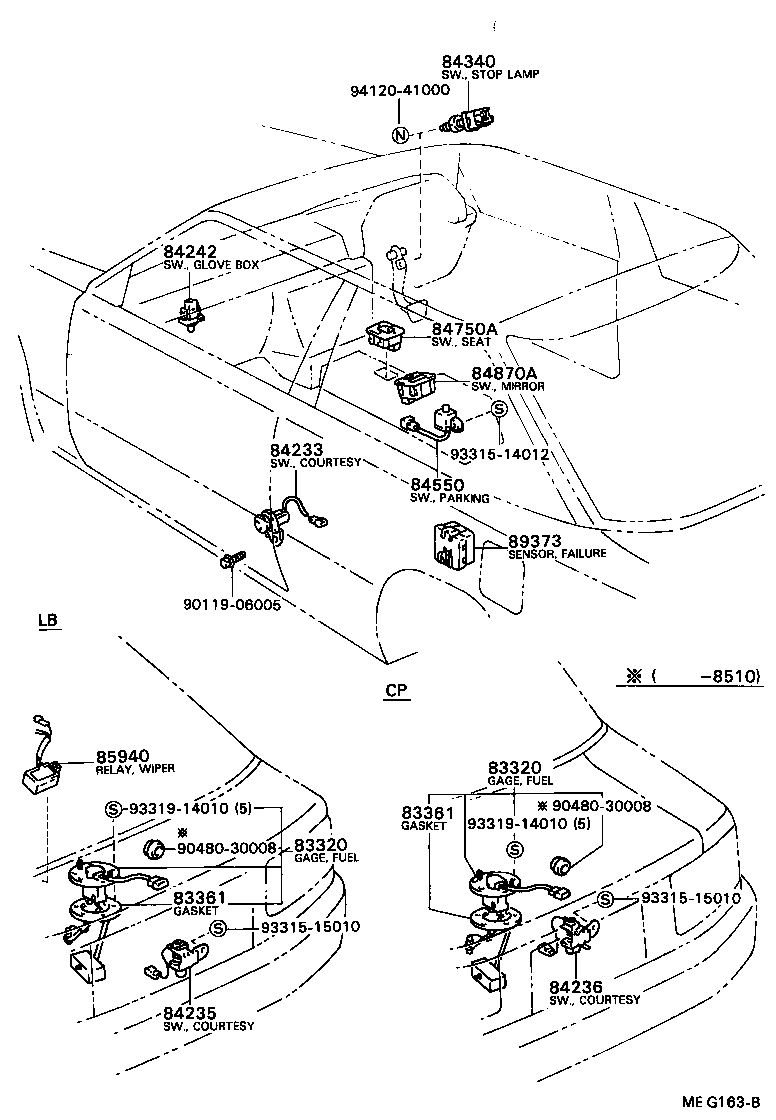

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80020 |
AT160,ST162,182 |
1 | ||
| 83320-80022 |
AT160,ST162..GEN,ME |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80020 |
AT160,ST162,182 |
1 | ||
| 83320-80022 |
AT160,ST162..GEN,ME |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
AT160,ST162,182 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
AT160,ST162,182 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20120 |
AT160,ST162,182 |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-20130 |
AT160,ST162,182..LB |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
AT160,ST162,182 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
AT160,ST162,182 MATSUSHITA |
1 | ||
| 84340-32010 |
AT160,ST162,182 TOKAIRIKA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16010 |
AT160,ST162,182 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20050 |
AT160,ST162,182 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-20080 |
AT160,ST162,182..LB |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90480-30008 | ||||
| 93315-14012 | ||||
| 93315-15010 | ||||
| 93319-14010 | ||||
| 94120-41000 | ||||

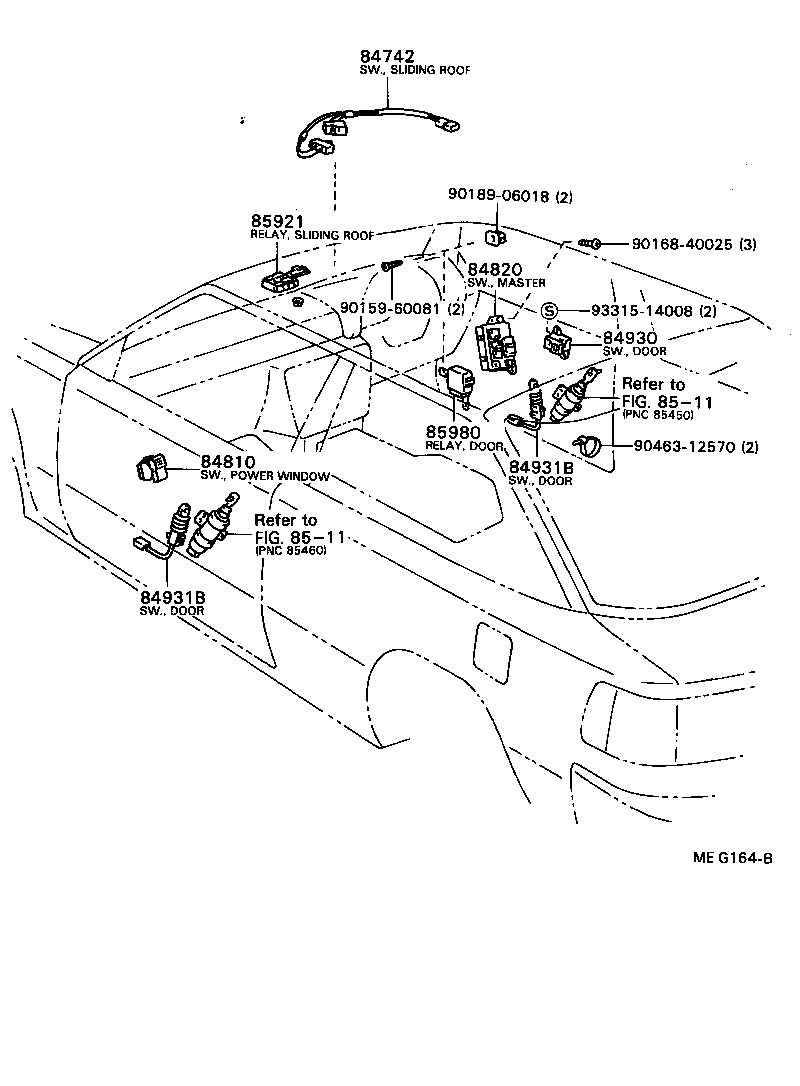

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84742 - SWITCH, SLIDE ROOF LIMIT | ||||
| 84742-20020 |
AT160,ST162,182 |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-20020 |
AT160,ST162,182 |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90168-40025 | ||||
| 90189-06018 | ||||
| 90463-12570 | ||||
| 93315-14008 | ||||
| Linked diagrams | ||||
| 8511 | ||||
