Toyota Celica AT160 WIRING & CLAMP

AT160L-BLMSS (1985)

Toyota Celica

Production Aug 1985 - Aug 1987

Engine 4AL

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8508- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-12200
82711-12270
82711-12450
82711-14110
82711-14350
82711-1A160
82711-1A170
82711-1A180
82711-1A210
82711-1A330
82711-1A390
82711-20490
82711-20570
82711-20850
82711-22270
82711-22300
82711-24070
82711-30660
82711-32090
82711-32100
82711-32270
82711-32460
82711-32490
82711-32500
90464-00284

(8508- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82817-20690
82817-32010
82819-20140
90950-01061
90950-01066

(8508- )CBR

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07206	AT160,ST162,182 FENDER RH	08/1985 - 08/1987	1
90980-07236	AT160..CBR ENGINE HANGGER	08/1985 - 08/1987	1
90980-07264	AT160,ST162,182 TRANSMISSION-FENDER LH	08/1985 - 08/1987	1
82001 - CABLE, BOND, NO.1
90980-07206	AT160,ST162,182 FENDER RH	08/1985 - 08/1987	1
90980-07236	AT160..CBR ENGINE HANGGER	08/1985 - 08/1987	1
90980-07264	AT160,ST162,182 TRANSMISSION-FENDER LH	08/1985 - 08/1987	1
82001 - CABLE, BOND, NO.1
90980-07206	AT160,ST162,182 FENDER RH	08/1985 - 08/1987	1
90980-07236	AT160..CBR ENGINE HANGGER	08/1985 - 08/1987	1
90980-07264	AT160,ST162,182 TRANSMISSION-FENDER LH	08/1985 - 08/1987	1

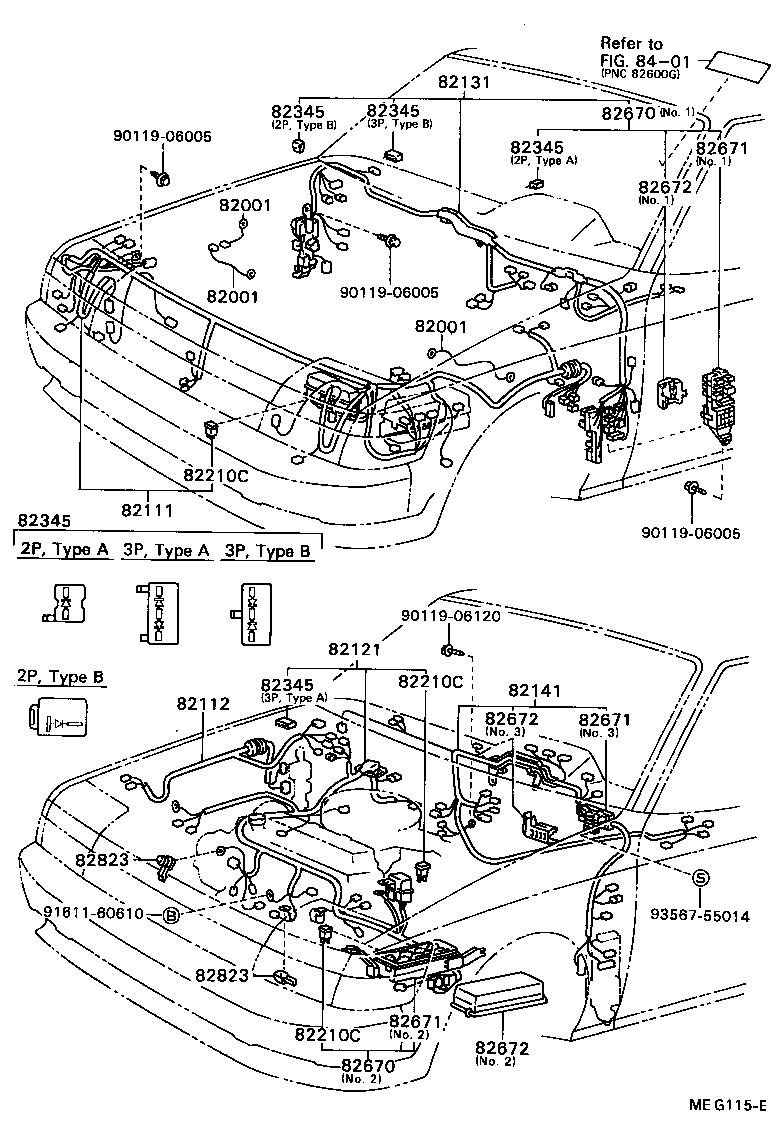

82111 - WIRE, ENGINE ROOM MAIN
82111-20450	AT160,ST162..LHD	08/1985 - 08/1987	1
82112 - WIRE, ENGINE ROOM, NO.2
82112-20100	AT160..CBR	08/1985 - 08/1987	1
82121 - WIRE, ENGINE
82121-20501	AT160..CBR	09/1986 - 12/1986	1
82121-20500	AT160..CBR	08/1985 - 09/1986	1
82121-20502	AT160..CBR	12/1986 - 08/1987	1
82131 - WIRE, COWL
82131-2B800	AT160..LHD	08/1985 - 08/1987	1
82141 - WIRE, INSTRUMENT PANEL
82141-20400	AT160,ST162..LHD	08/1985 - 04/1986	1
82141-20401	AT160,ST162..LHD	04/1986 - 08/1987	1
82210C - FUSIBLE LINK
90982-08188	AT160,ST162,182 30A,TERM.:FEMALE,PNK,30A	08/1985 - 08/1987	3
90982-08223	AT160,ST162,182 30A,TERM.:MALE,PNK,30A	08/1985 - 08/1987	1
90982-08203	AT160..CBR 80A,TERM.:MALE,BLK,80A	08/1985 - 08/1987	1
90982-08189	AT160,ST162,182 40A,TERM.:FEMALE,GRN,40A	08/1985 - 08/1987	1
82210C - FUSIBLE LINK
90982-08188	AT160,ST162,182 30A,TERM.:FEMALE,PNK,30A	08/1985 - 08/1987	3
90982-08223	AT160,ST162,182 30A,TERM.:MALE,PNK,30A	08/1985 - 08/1987	1
90982-08203	AT160..CBR 80A,TERM.:MALE,BLK,80A	08/1985 - 08/1987	1
90982-08189	AT160,ST162,182 40A,TERM.:FEMALE,GRN,40A	08/1985 - 08/1987	1
82210C - FUSIBLE LINK
90982-08188	AT160,ST162,182 30A,TERM.:FEMALE,PNK,30A	08/1985 - 08/1987	3
90982-08223	AT160,ST162,182 30A,TERM.:MALE,PNK,30A	08/1985 - 08/1987	1
90982-08203	AT160..CBR 80A,TERM.:MALE,BLK,80A	08/1985 - 08/1987	1
90982-08189	AT160,ST162,182 40A,TERM.:FEMALE,GRN,40A	08/1985 - 08/1987	1
82345 - DIODE
82345-20040	AT160,ST162,182 3P,TYPE B	08/1985 - 08/1987	1
82345-20060	AT160,ST162,182 2P,TYPE A	08/1985 - 08/1987	2
82345-12020	AT160 2P,TYPE B	08/1985 - 08/1987	1
82345 - DIODE
82345-20040	AT160,ST162,182 3P,TYPE B	08/1985 - 08/1987	1
82345-20060	AT160,ST162,182 2P,TYPE A	08/1985 - 08/1987	2
82345-12020	AT160 2P,TYPE B	08/1985 - 08/1987	1
82345 - DIODE
82345-20040	AT160,ST162,182 3P,TYPE B	08/1985 - 08/1987	1
82345-20060	AT160,ST162,182 2P,TYPE A	08/1985 - 08/1987	2
82345-12020	AT160 2P,TYPE B	08/1985 - 08/1987	1
82345 - DIODE
82345-20040	AT160,ST162,182 3P,TYPE B	08/1985 - 08/1987	1
82345-20060	AT160,ST162,182 2P,TYPE A	08/1985 - 08/1987	2
82345-12020	AT160 2P,TYPE B	08/1985 - 08/1987	1
82345 - DIODE
82345-20040	AT160,ST162,182 3P,TYPE B	08/1985 - 08/1987	1
82345-20060	AT160,ST162,182 2P,TYPE A	08/1985 - 08/1987	2
82345-12020	AT160 2P,TYPE B	08/1985 - 08/1987	1
82670 - BLOCK ASSY, JUNCTION, NO.1
82670-20050	AT160 NO.2	08/1986 - 08/1987	1
82670-20050	AT160,ST162,182 NO.2	08/1985 - 08/1986	1
82670-20010	AT160,ST162,182 NO.1	08/1985 - 08/1987	1
82670 - BLOCK ASSY, JUNCTION, NO.1
82670-20050	AT160 NO.2	08/1986 - 08/1987	1
82670-20050	AT160,ST162,182 NO.2	08/1985 - 08/1986	1
82670-20010	AT160,ST162,182 NO.1	08/1985 - 08/1987	1
82671 - BLOCK, JUNCTION
82671-20040	AT160,ST162,182 NO.2	08/1985 - 08/1986	1
82671-20030	AT160,ST162,182 NO.1	08/1985 - 08/1987	1
82671-20040	AT160 NO.2	08/1986 - 08/1987	1
82671-20050	AT160,ST162,182 NO.3	08/1985 - 08/1987	1
82671 - BLOCK, JUNCTION
82671-20040	AT160,ST162,182 NO.2	08/1985 - 08/1986	1
82671-20030	AT160,ST162,182 NO.1	08/1985 - 08/1987	1
82671-20040	AT160 NO.2	08/1986 - 08/1987	1
82671-20050	AT160,ST162,182 NO.3	08/1985 - 08/1987	1
82671 - BLOCK, JUNCTION
82671-20040	AT160,ST162,182 NO.2	08/1985 - 08/1986	1
82671-20030	AT160,ST162,182 NO.1	08/1985 - 08/1987	1
82671-20040	AT160 NO.2	08/1986 - 08/1987	1
82671-20050	AT160,ST162,182 NO.3	08/1985 - 08/1987	1
82672 - COVER, JUNKTION BLOCK
82672-20040	AT160,ST162,182 NO.2	08/1985 - 08/1986	1
82672-20040	AT160 NO.2	08/1986 - 08/1987	1
82672-20010	AT160,ST162,182 NO.1	08/1985 - 08/1987	1
82672-20080	AT160,ST162,182 NO.3	08/1985 - 08/1987	1
82672 - COVER, JUNKTION BLOCK
82672-20040	AT160,ST162,182 NO.2	08/1985 - 08/1986	1
82672-20040	AT160 NO.2	08/1986 - 08/1987	1
82672-20010	AT160,ST162,182 NO.1	08/1985 - 08/1987	1
82672-20080	AT160,ST162,182 NO.3	08/1985 - 08/1987	1
82672 - COVER, JUNKTION BLOCK
82672-20040	AT160,ST162,182 NO.2	08/1985 - 08/1986	1
82672-20040	AT160 NO.2	08/1986 - 08/1987	1
82672-20010	AT160,ST162,182 NO.1	08/1985 - 08/1987	1
82672-20080	AT160,ST162,182 NO.3	08/1985 - 08/1987	1
82823 - CAP, TERMINAL, NO.1
82823-20030	AT160,ST162..ST STARTER	08/1985 - 08/1987	1
82823-20040	AT160 ALTERNATOR	08/1985 - 07/1986	1
82823-22050	AT160 ALTERNATOR	07/1986 - 08/1987	1
82823 - CAP, TERMINAL, NO.1
82823-20030	AT160,ST162..ST STARTER	08/1985 - 08/1987	1
82823-20040	AT160 ALTERNATOR	08/1985 - 07/1986	1
82823-22050	AT160 ALTERNATOR	07/1986 - 08/1987	1
Common parts
90119-06005
90119-06120
91611-60610
93567-55014
Linked diagrams
8401

(8508- )LB..ARL,GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty

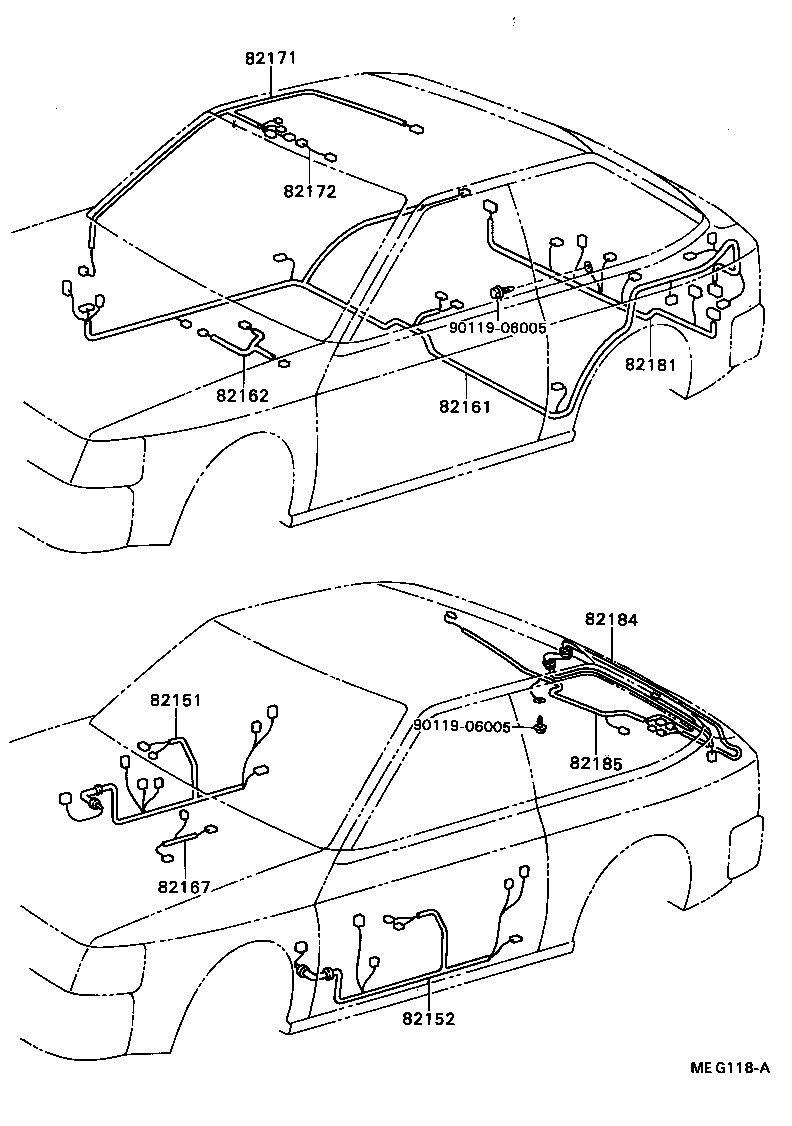

82151 - WIRE, FRONT DOOR, RH
82151-20260	ST162..ARL;AT160,ST182 W/*RCM	08/1985 - 08/1987	1
82151-20250	AT160	08/1985 - 08/1987	1
82152 - WIRE, FRONT DOOR, LH
82152-20230	AT160	08/1985 - 08/1987	1
82152-20240	ST162..ARL;AT160,ST182 W/*RCM	08/1985 - 08/1987	1
82161 - WIRE, FLOOR
82161-2B060	AT160..LB..LHD	08/1985 - 07/1986	1
82161-2B061	AT160..LB..LHD	07/1986 - 08/1987	1
82171 - WIRE, ROOF, NO.1
82171-20200	AT160,ST162..LHD	08/1985 - 08/1987	1
82171-20210	AT160,ST162..LHD W/SUN ROOF	08/1985 - 08/1987	1
82172 - WIRE, ROOF, NO.2
82172-20010	AT160,ST162,182	08/1985 - 08/1987	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-20150	AT160,ST162,182..LB	08/1985 - 08/1987	1
82184 - WIRE, BACK DOOR, NO.1
82184-20050	AT160,ST162,182..LB W/*RW	08/1986 - 08/1987	1
82184-20040	AT160,ST162,182..LB	08/1985 - 08/1987	1
82185 - WIRE, BACK DOOR, NO.2
82185-20070	AT160,ST162,182..LB	08/1985 - 08/1987	1
82185-20080	AT160,ST162..LB..(GT,ST) W/*RW	08/1986 - 08/1987	1
82185-20090	AT160,ST162,182..LB W/RW & RWD	10/1986 - 08/1987	1
Common parts
90119-06005

(8508- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82981 - WIRE, HEADLAMP REPAIR
82981-20020	AT160,ST162,182	08/1985 - 08/1987	1
82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR
82983-12010	AT160,ST162,182	08/1985 - 08/1987	1
82984 - WIRE, HORN REPAIR
82984-20010	AT160,ST162,182	08/1985 - 08/1987	1
82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR
82985-20010	AT160,ST162,182	08/1985 - 08/1987	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-20010	AT160,ST162,182	08/1985 - 08/1987	1
Common parts
82981-20020
82983-12010
82984-20010
82985-20010
82991-20010

(8508- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-20720
82711-22220
82711-2B160
82711-32620
82711-32650
82711-32660
82711-32780

AT160L-BLMSS (1985)

(8508- )

(8508- )

(8508- )CBR

(8508- )LB..ARL,GEN

(8508- )

(8508- )

Part Price Details
