AT160L-BLMSS (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 4AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )CBR

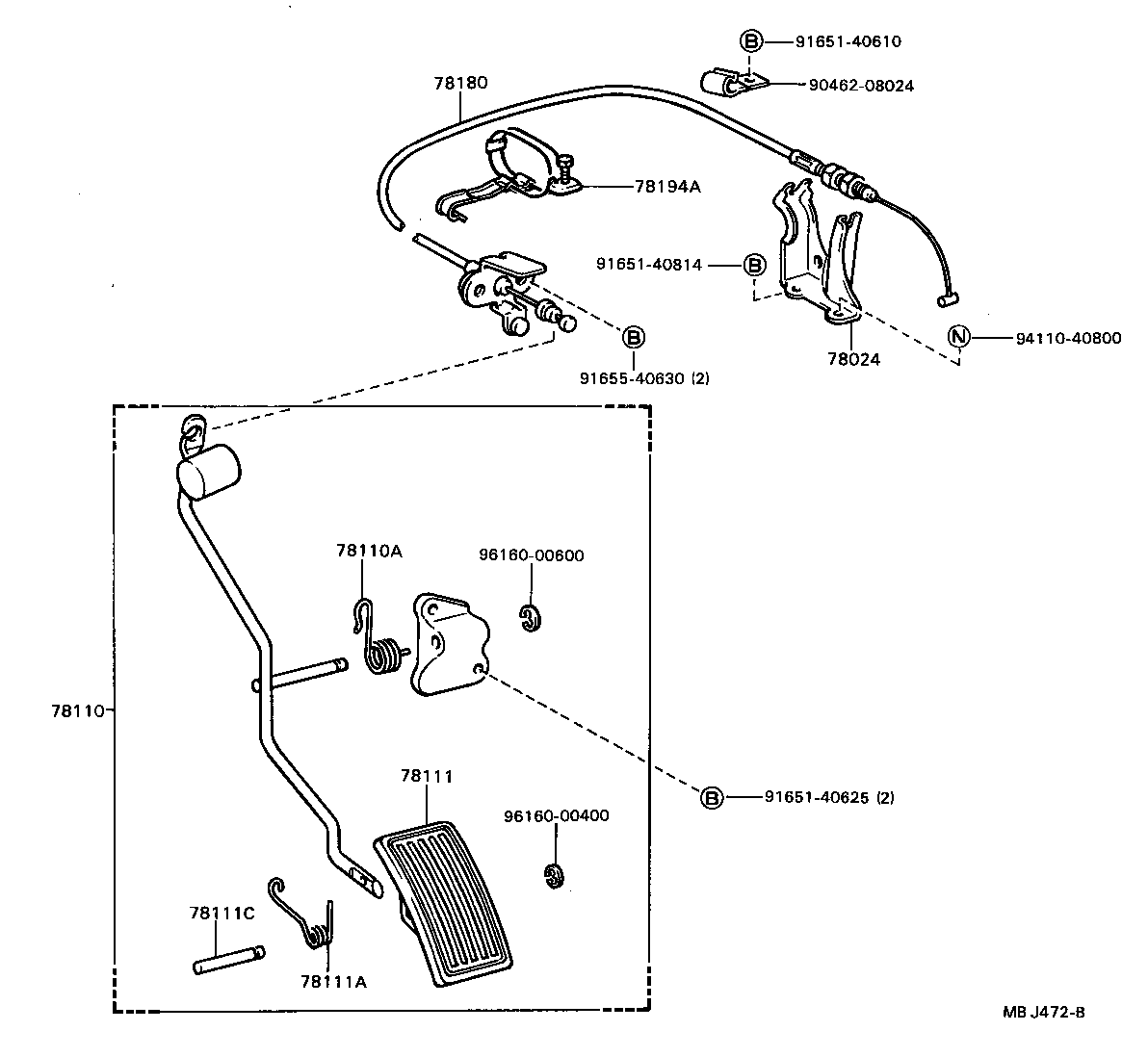

Click highlighted areas on diagram

diagram 78024 78110 78110A 78111 78111A 78111C 78180 78194A 9046208024 9165140610 9165140625 9165140814 9165540630 9411040800 9616000400 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-12160

AT160..CBR

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-20280

AT160,ST162..LHD..5F

W/O AUTO DRIVE

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26062

AT160,ST162..LHD..5F

W/O AUTO DRIVE

 1
78111 - PEDAL, ACCELERATOR
78111-20030

AT160,ST162,182

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18050

AT160,ST162,182

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

AT160,ST162,182

 1
78180 - WIRE ASSY, ACCELERATOR
78180-20240

AT160..CBR

 1
78180-20350

AT160..CBR

 1
78194A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.4
78194-20040

AT160..CBR

 1
Common parts
90462-08024
91651-40610
91651-40625
91651-40814
91655-40630
94110-40800
96160-00400
96160-00600
