AT160L-BLMSS (1985)
Toyota Celica
Production
Aug 1985
-
Aug 1987
Engine
4AL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )LB..ARL,GEN

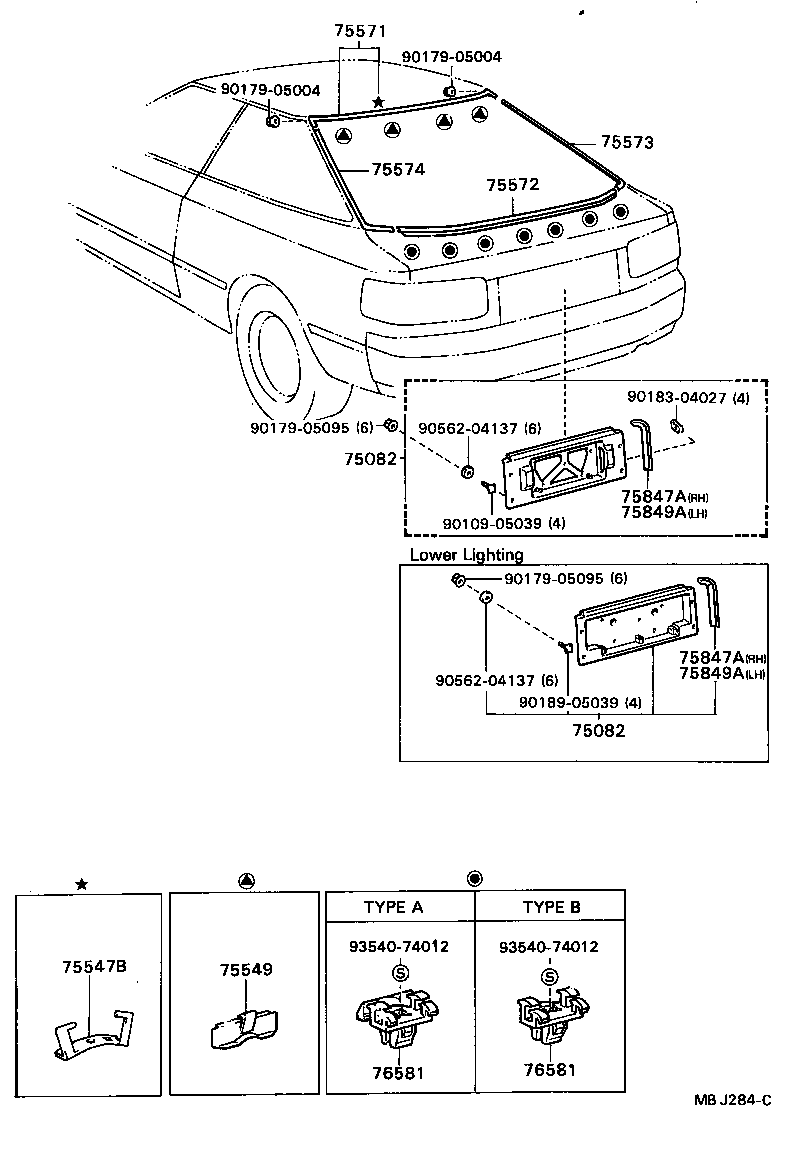

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER | ||||
| 75082-20140 |
AT160,ST162..LB..GEN *LPL=LOWER LIGHTING |
1 | ||
| 75082-20130 |
AT160,ST162,182..LB *LPL=SIDE LIGHTING |
1 | ||
| 75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER | ||||
| 75082-20140 |
AT160,ST162..LB..GEN *LPL=LOWER LIGHTING |
1 | ||
| 75082-20130 |
AT160,ST162,182..LB *LPL=SIDE LIGHTING |
1 | ||
| 75547B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3 | ||||
| 75547-20050 |
AT160,ST162,182..LB |
4 | ||
| 75549 - FASTENER, BACK WINDOW OUTSIDE MOULDING, NO.2 | ||||
| 75549-20080 |
AT160,ST162,182..LB |
4 | ||
| 75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER | ||||
| 75507-20170 |
AT160,ST162,182..LB |
1 | ||
| 75572 - MOULDING, BACK WINDOW, LOWER | ||||
| 75575-20200 |
AT160,ST162,182..LB |
1 | ||
| 75573 - MOULDING, BACK WINDOW SIDE, RH | ||||
| 75501-20030 |
AT160,ST162,182..LB |
1 | ||
| 75501-20031 |
AT160,ST162,182..LB |
1 | ||
| 75501-20032 |
AT160,ST162,182..LB |
1 | ||
| 75574 - MOULDING, BACK WINDOW SIDE, LH | ||||
| 75502-20012 |
AT160,ST162,182..LB |
1 | ||
| 75502-20011 |
AT160,ST162,182..LB |
1 | ||
| 75502-20010 |
AT160,ST162,182..LB |
1 | ||
| 75847A - PAD, LOWER BACK PANEL MOULDING, RH | ||||
| 75847-20070 |
AT160,ST162,182..LB |
1 | ||
| 75847A - PAD, LOWER BACK PANEL MOULDING, RH | ||||
| 75847-20070 |
AT160,ST162,182..LB |
1 | ||
| 75849A - PAD, LOWER BACK PANEL MOULDING, LH | ||||
| 75849-20060 |
AT160,ST162,182..LB |
1 | ||
| 75849A - PAD, LOWER BACK PANEL MOULDING, LH | ||||
| 75849-20060 |
AT160,ST162,182..LB |
1 | ||
| 76581 - RETAINER, BACK WINDOW OUTSIDE MOULDING | ||||
| 76583-20010 |
AT160,ST162,182..LB TYPE B |
5 | ||
| 76581-20020 |
AT160,ST162,182..LB TYPE A |
2 | ||
| 76581 - RETAINER, BACK WINDOW OUTSIDE MOULDING | ||||
| 76583-20010 |
AT160,ST162,182..LB TYPE B |
5 | ||
| 76581-20020 |
AT160,ST162,182..LB TYPE A |
2 | ||
| Common parts | ||||
| 90109-05039 | ||||
| 90179-05004 | ||||
| 90179-05095 | ||||
| 90183-04027 | ||||
| 90189-05039 | ||||
| 90562-04137 | ||||
| 93540-74012 | ||||
