AT160L-BLMSS (1985)
Toyota Celica
Production
Aug 1985
-
Aug 1987
Engine
4AL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )LB..ARL,GEN

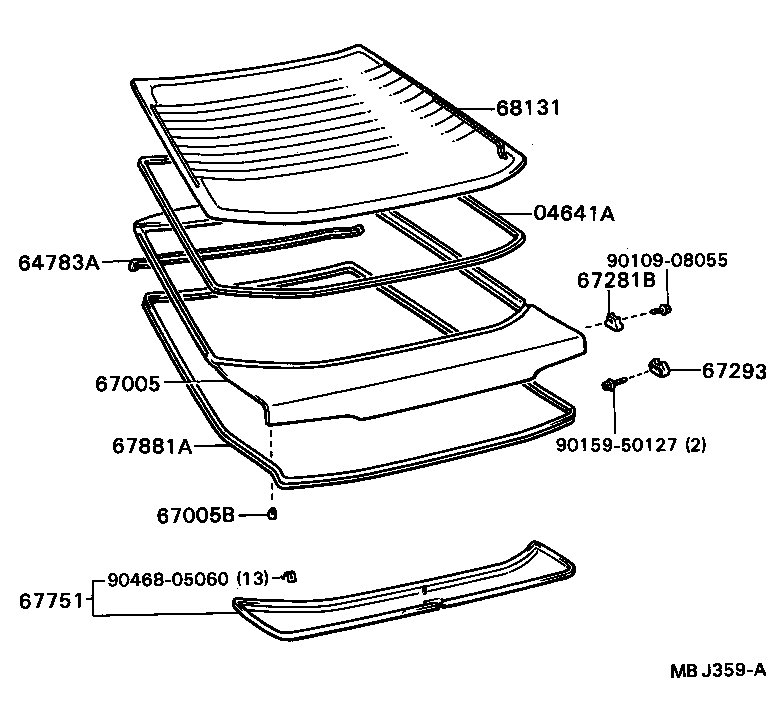

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641A - DAM KIT, BACK WINDOW GLASS ADHESIVE | ||||
| 04562-30040 |
AT160,ST162,182..LB |
1 | ||
| 64783A - TRIM, BACK WINDOW PANEL, UPPER | ||||
| 64783-20020 |
AT160,ST162,182..LB |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-20611 |
AT160..LB W/*RW,W/O SPOILER |
1 | ||
| 67005-20620 |
AT160,ST162,182..LB W/O *RW,SPOILER |
1 | ||
| 67005-20621 |
AT160,ST162,182..LB W/O *RW,SPOILER |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-09041 |
AT160,ST162,182..LB |
2 | ||
| 67281B - STOPPER, BACK DOOR, LOWER | ||||
| 67281-20020 |
AT160,ST162,182..LB |
2 | ||
| 67293 - CUSHION, BACK DOOR LOWER STOPPER | ||||
| 67293-20020 |
AT160,ST162,182..LB |
2 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 64781-2004003 |
AT160,ST162,182..LB GRAY,SHADOW GRAY |
1 | ||
| 64781-2004006 |
AT160,ST162,182..LB BROWN,BROWN |
1 | ||
| 64781-2004004 |
AT160,ST162,182..LB BLUE,DEEP BLUE |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-20050 |
AT160,ST162,182..LB |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68131-20140 |
AT160,ST162..LB..(GEN,ME) *TT,T=4.0,*TT,T=4.0 |
1 | ||
| 68131-20150 |
AT160,ST162,182..LB *EHTT,T=4.0,*EHTT,T=4.0 |
1 | ||
| Common parts | ||||
| 90109-08055 | ||||
| 90159-50127 | ||||
| 90468-05060 | ||||
