AT160L-BLMSS (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 4AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )CBR

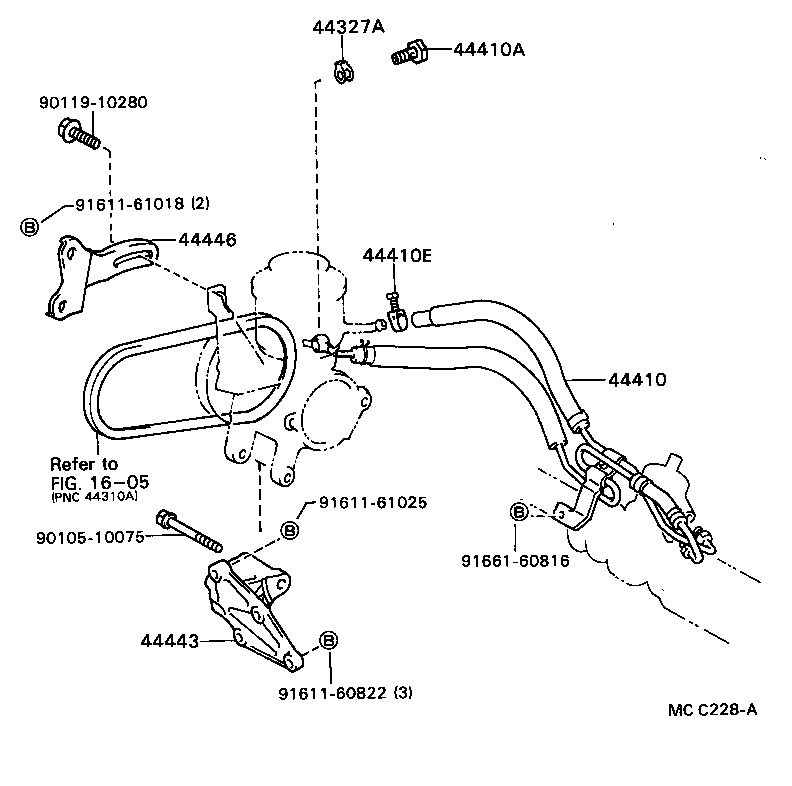

Click highlighted areas on diagram

diagram 1605 44327A 44410 44410A 44410E 44443 44446 9010510075 9011910280 9161160822 9161161018 9161161025 9166160816
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

ST162;AT160,ST182..ST,SX

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-20220

AT160..CBR

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

AT160..CBR

 1
44410E - CLAMP(FOR PRESSURE FEED TUBE)
90467-16008

AT160..LHD

RESERVOIR SIDE

 1
44443 - BRACKET, PUMP
44443-12050

AT160..CBR

 1
44446 - STRUT, ADJUSTING
44446-12030

AT160..CBR

 1
Common parts
90105-10075
90119-10280
91611-60822
91611-61018
91611-61025
91661-60816
Linked diagrams
1605
