AT160L-BLMSS (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 4AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

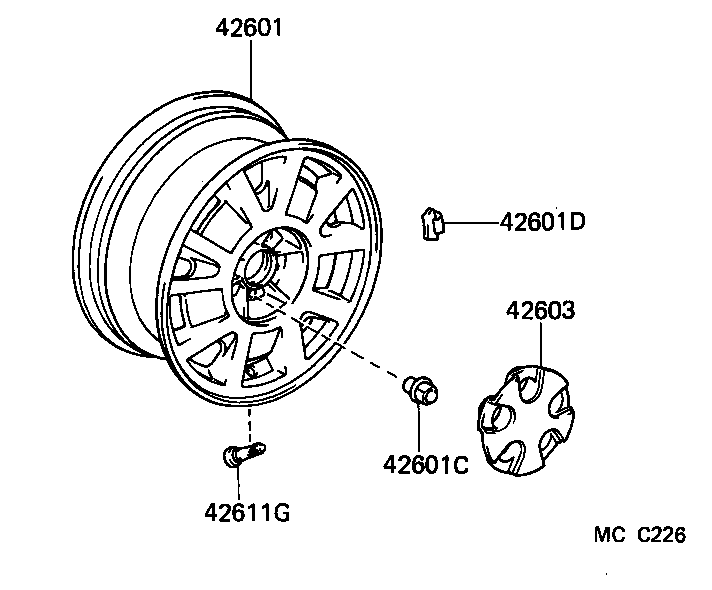

Click highlighted areas on diagram

diagram 42601 42601C 42601D 42603 42611G
Part # Description Qty Price
42601 - WHEEL, DISC
42611-16170

AT160..CBR

13X5J,5J-13

 5
42601C - NUT, HUB (FOR AXLE)
90942-01027

AT160..CBR

CAP NUT

 16
90942-01059

AT160..CBR

CAP NUT

 16
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03025

AT160

50G,T=9.5,50G

 1
90942-03029

AT160

70G,T=9.5,70G

 1
90942-03031

AT160

80G,T=9.5,80G

 1
90942-03022

AT160

40G,T=9.5,40G

 1
90942-03098

AT160

15G,15G

 1
90942-03017

AT160

20G,T=8,20G

 1
90942-03041

AT160

10G,T=7.5,10G

 1
90942-03100

AT160

35G,35G

 1
90942-03108

AT160

65G,65G

 1
90942-03027

AT160

60G,T=9.5,60G

 1
90942-03099

AT160

25G,25G

 1
90942-03109

AT160

75G,75G

 1
90942-03020

AT160

30G,T=10,30G

 1
90942-03101

AT160

45G,45G

 1
90942-03161

AT160

5G,5G

 1
90942-03102

AT160

55G,55G

 1
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42638-16200

AT160..CBR

 4
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

AT160,ST162,182

 5
