AT160L-BLMSS (1985)
Toyota Celica
(8508- )AT160..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90119-12042 |
AT160..5F *12-1.25PX75-30,*12-1.25PX75-30 |
1 | ||
| 90105-10077 |
AT160,ST162,182..5F *10-1.25PX43-26,*10-1.25PX43-26 |
1 | ||
| 90119-12168 |
AT160,ST162,182..5F *12-1.25PX55-30,*10-1.25PX55-30 |
3 | ||
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90119-12042 |
AT160..5F *12-1.25PX75-30,*12-1.25PX75-30 |
1 | ||
| 90105-10077 |
AT160,ST162,182..5F *10-1.25PX43-26,*10-1.25PX43-26 |
1 | ||
| 90119-12168 |
AT160,ST162,182..5F *12-1.25PX55-30,*10-1.25PX55-30 |
3 | ||
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90119-12042 |
AT160..5F *12-1.25PX75-30,*12-1.25PX75-30 |
1 | ||
| 90105-10077 |
AT160,ST162,182..5F *10-1.25PX43-26,*10-1.25PX43-26 |
1 | ||
| 90119-12168 |
AT160,ST162,182..5F *12-1.25PX55-30,*10-1.25PX55-30 |
3 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08064 |
AT160..5F *8-1.25PX51-28 |
16 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
AT160..5F |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
AT160,ST162,182..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
AT160,ST162,182..5F |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
AT160,ST162,182..5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-16040 |
AT160..5F |
1 | ||
| 33111-12170 |
AT160..5F |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AT160,ST162,182..5F L=23,OD=8 |
6 | ||
| 33111Q - SEAL, OIL(FOR TRANSMISSION CASE) | ||||
| 90311-34008 |
AT160..5F |
1 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
AT160..5F L=11,OD=11 |
2 | ||
| 33117 - PROTECTOR, MANUAL TRANSMISSION CASE | ||||
| 33117-17010 |
AT160..5F |
1 | ||
| 33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
AT160,ST162,182..5F |
2 | ||
| 33121G - COVER, MANUAL TRANSMISSION CASE | ||||
| 33102-12020 |
AT160..5F |
1 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 91611-60835 |
AT160..5F |
9 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-12010 |
AT160..5F |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-12020 |
AT160..5F |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 91611-60820 |
AT160..5F |
2 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 91611-60820 |
AT160..5F |
2 | ||
| 33131D - RETAINER, BEARING, FRONT | ||||
| 33131-12070 |
AT160..5F |
1 | ||
| 33131E - SCREW(FOR BEARING RETAINER FRONT) | ||||
| 90149-60028 |
AT160..5F |
3 | ||
| Common parts | ||||
| 91611-60816 | ||||
| 91611-61020 | ||||

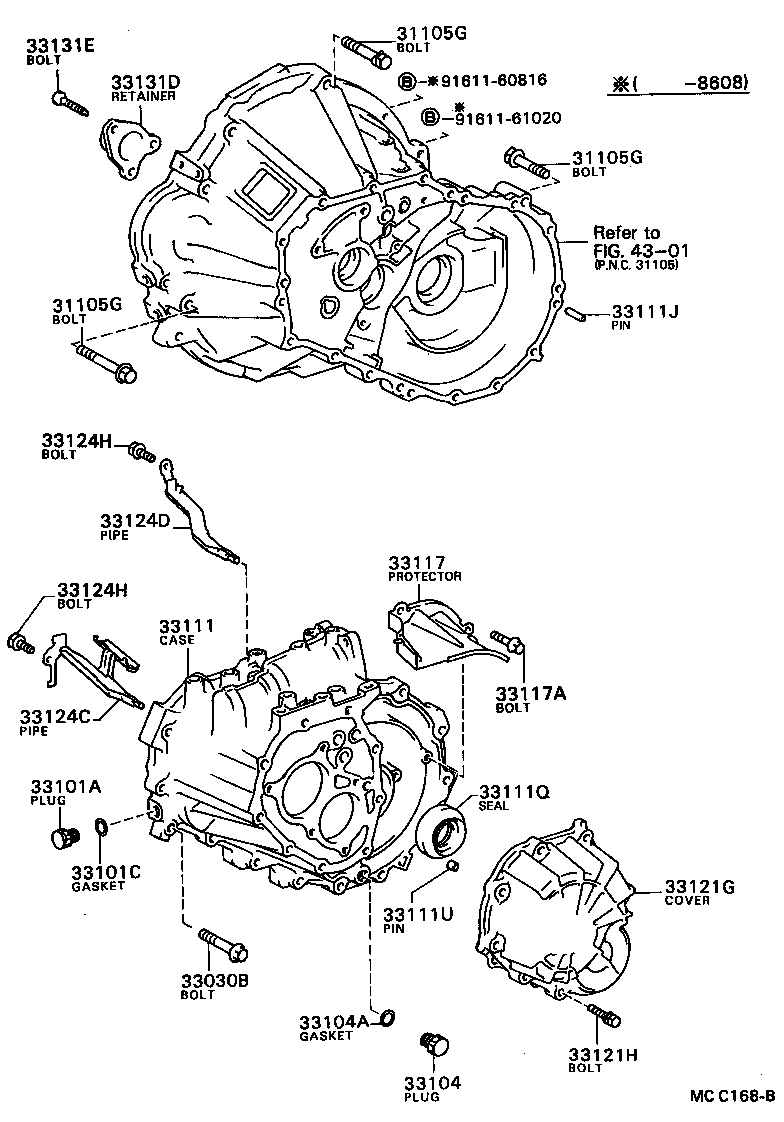

| Linked diagrams | ||||
| 4301 | ||||
