AT160L-BLMSS (1985)
Toyota Celica
Production
Aug 1985
-
Aug 1987
Engine
4AL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )4AL

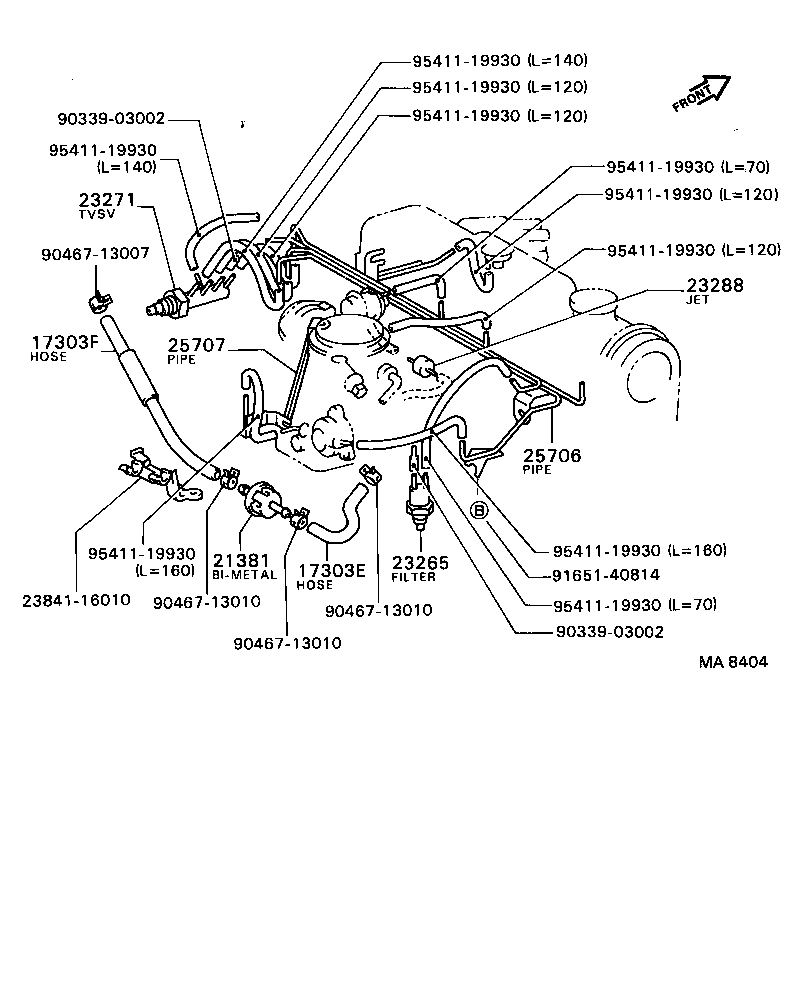

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 77791-12080 |
4AL..AT160 |
1 | ||
| 77791-12041 |
4AL..AT160 |
1 | ||
| 17303F - HOSE, NO.2(FOR AIR PIPE) | ||||
| 90447-14010 |
4AL..AT160 |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-71010 |
4AL..AT160 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
4AL..AT160 |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02076 |
4AL..AT160 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04003 |
4AL..AT160 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-14030 |
4AL..AT160 |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-14010 |
4AL..AT160 |
1 | ||
| Common parts | ||||
| 23841-16010 | ||||
| 90339-03002 | ||||
| 90467-13007 | ||||
| 90467-13010 | ||||
| 91651-40814 | ||||
| 95411-19930 | ||||
(8508- )4A#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95411-10030 | ||||
| 95411-10130 | ||||
| 95411-10160 | ||||
| 95411-19995 | ||||
