AT160L-BLMSS (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 4AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )4AL

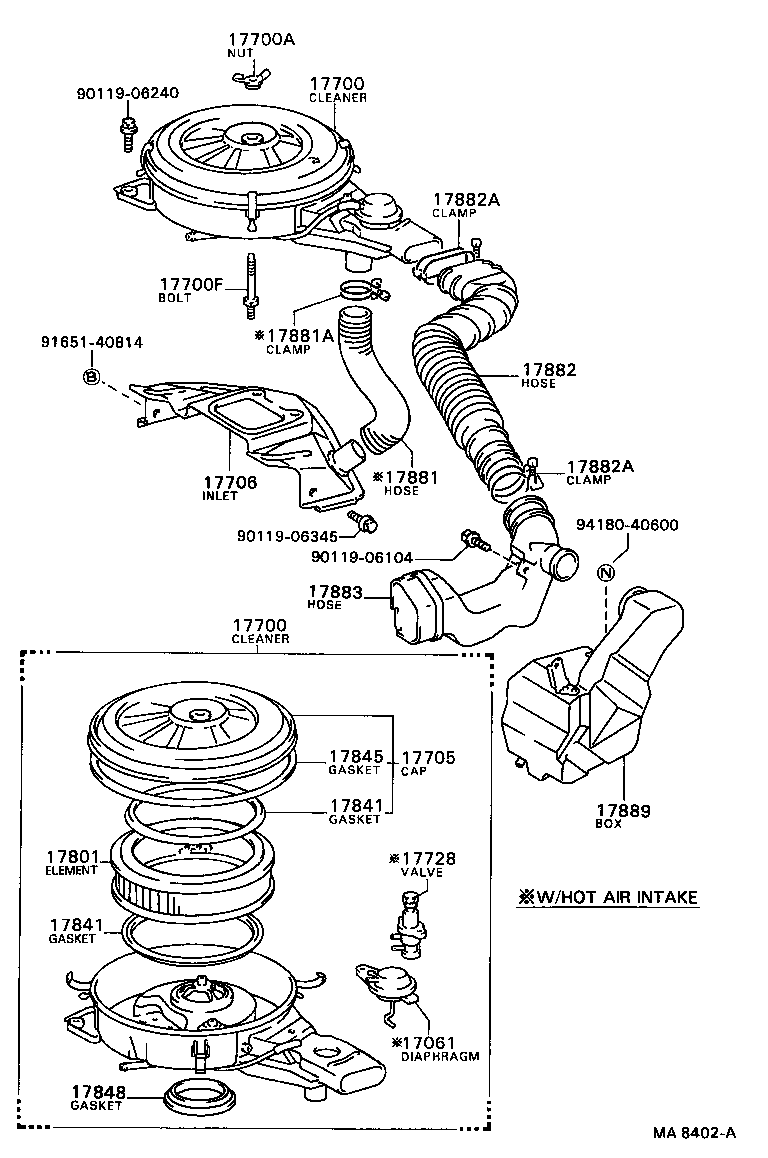

Click highlighted areas on diagram

diagram 17061 17700 17700 17700A 17700F 17705 17706 17728 17801 17841 17841 17845 17848 17881 17881A 17882 17882A 17882A 17883 17889 9011906104 9011906240 9011906345 9165140814 9418040600
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-15030

4AL..AT160

W/HOT AIR INTAKE

 1
17700 - CLEANER ASSY, AIR
17700-16050

4AL..AT160

 1
17700-16070

4AL..AT160

W/HOT AIR INTAKE

 1
17700 - CLEANER ASSY, AIR
17700-16050

4AL..AT160

 1
17700-16070

4AL..AT160

W/HOT AIR INTAKE

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

4AL..AT160

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06039

4AL..AT160

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-16050

4AL..AT160

 1
17706 - INLET SUB-ASSY, AIR CLEANER, NO.2
17902-16020

4AL..AT160

 1
17728 - VALVE, THERMOSTATIC
17728-24011

4AL..AT160

W/HOT AIR INTAKE

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-15010

4AL..AT160

 1
17841 - GASKET, FILTER ELEMENT
17841-15010

4AL..AT160

 2
17841 - GASKET, FILTER ELEMENT
17841-15010

4AL..AT160

 2
17845 - GASKET, AIR CLEANER CAP
17845-61011

4AL..AT160

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-63001

4AL..AT160

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-16110

4AL..AT160

W/HOT AIR INTAKE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90929-01117

4AL..AT160

W/HOT AIR INTAKE

 1
17882 - HOSE, AIR CLEANER, NO.2
17881-12060

4AL..AT160

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10670

4AL..AT160

HOSE SIDE

 1
90460-01005

4AL..AT160

AIR CLEANER SIDE

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10670

4AL..AT160

HOSE SIDE

 1
90460-01005

4AL..AT160

AIR CLEANER SIDE

 1
17883 - HOSE, AIR CLEANER, NO.3
17882-20110

4AL..AT160

 1
17889 - BOX, AIR CLEANER HOSE, NO.2
17889-20010

4A#..AT160

 1
Common parts
90119-06104
90119-06240
90119-06345
91651-40814
94180-40600

(8708-8908)4AL

Click highlighted areas on diagram

diagram 17061 17700 17700 17700A 17700F 17705 17706 17728 17801 17841 17841 17845 17848 17881 17881A 17882 17882A 17882A 17883 17889 9011906104 9011906240 9011906345 9165140814 9418040600
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-15030

4AL..AT160

W/HOT AIR INTAKE

 1
17700 - CLEANER ASSY, AIR
17700-16050

4AL..AT160

 1
17700-16070

4AL..AT160

W/HOT AIR INTAKE

 1
17700 - CLEANER ASSY, AIR
17700-16050

4AL..AT160

 1
17700-16070

4AL..AT160

W/HOT AIR INTAKE

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

4AL..AT160

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06039

4AL..AT160

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-16050

4AL..AT160

 1
17706 - INLET SUB-ASSY, AIR CLEANER, NO.2
17902-16020

4AL..AT160

 1
17728 - VALVE, THERMOSTATIC
17728-24011

4AL..AT160

W/HOT AIR INTAKE

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-15010

4AL..AT160

 1
17841 - GASKET, FILTER ELEMENT
17841-15010

4AL..AT160

 2
17841 - GASKET, FILTER ELEMENT
17841-15010

4AL..AT160

 2
17845 - GASKET, AIR CLEANER CAP
17845-61011

4AL..AT160

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-63001

4AL..AT160

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-16110

4AL..AT160

W/HOT AIR INTAKE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90929-01117

4AL..AT160

W/HOT AIR INTAKE

 1
17882 - HOSE, AIR CLEANER, NO.2
17881-12060

4AL..AT160

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10670

4AL..AT160

HOSE SIDE

 1
90460-01005

4AL..AT160

AIR CLEANER SIDE

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10670

4AL..AT160

HOSE SIDE

 1
90460-01005

4AL..AT160

AIR CLEANER SIDE

 1
17883 - HOSE, AIR CLEANER, NO.3
17882-20110

4AL..AT160

 1
17889 - BOX, AIR CLEANER HOSE, NO.2
17889-20010

4A#..AT160

 1
Common parts
90119-06104
90119-06240
90119-06345
91651-40814
94180-40600
