AT160L-BLMSS (1985)
Toyota Celica
Production
Aug 1985
-
Aug 1987
Engine
4AL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )4AL

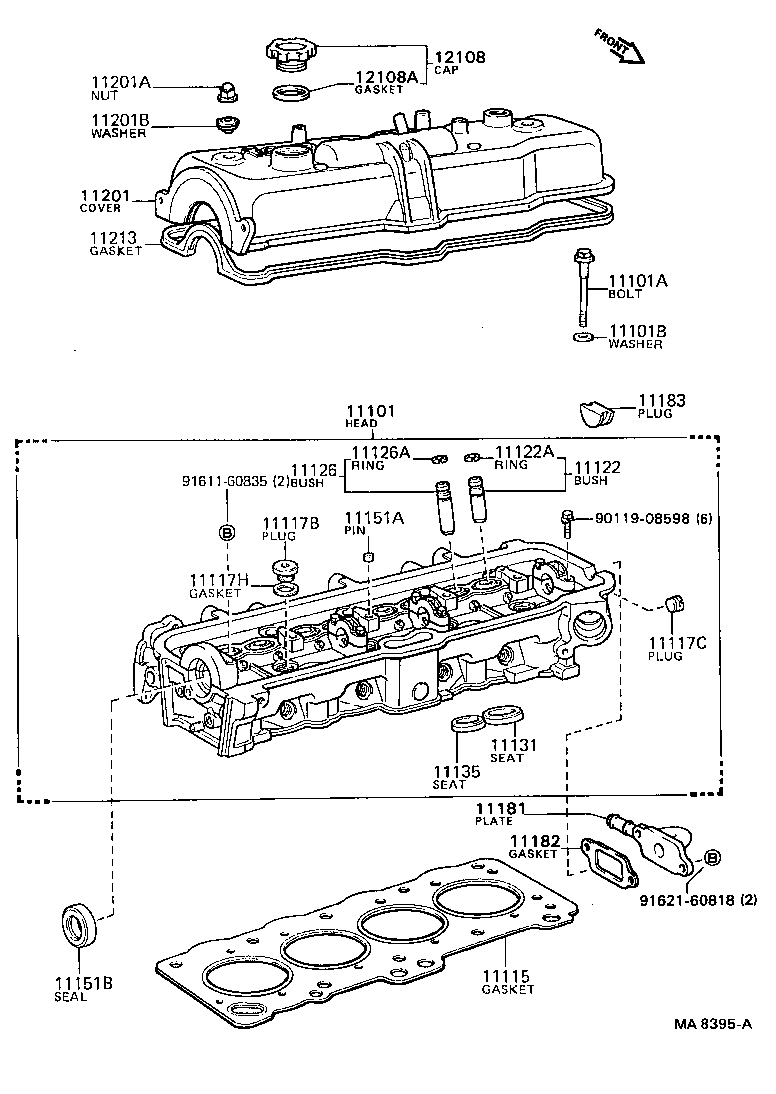

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-15080 |
4AL..AT160 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90109-10025 |
4AL..AT160 *10-1,25PX97.5-22 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
4A#..AT160 |
10 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-16050 |
4AL..AT160 |
1 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90341-20002 |
4AL..AT160 |
2 | ||
| 11117C - PLUG, W/HEAD TAPER SCREW, NO.3 | ||||
| 90344-54002 |
4AL..AT160 |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
4AL..AT160 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-15020 |
4AL..AT160 STD,STD |
4 | ||
| 11122-15011 |
4AL..AT160 STD,STD |
4 | ||
| 11123-15020 |
4AL..AT160 O/S 0.05,O/S 0.05 |
4 | ||
| 11123-15011 |
4AL..AT160 O/S 0.05,O/S 0.05 |
4 | ||
| 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) | ||||
| 90520-10001 |
4AL..AT160 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-15011 |
4AL..AT160 STD,STD |
4 | ||
| 11127-15011 |
4AL..AT160 O/S 0.05,O/S 0.05 |
4 | ||
| 11126-15020 |
4AL..AT160 STD,STD |
4 | ||
| 11127-15020 |
4AL..AT160 O/S 0.05,O/S 0.05 |
4 | ||
| 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) | ||||
| 90520-10001 |
4AL..AT160 |
4 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-15020 |
4AL..AT160 STD,STD |
4 | ||
| 11132-15020 |
4AL..AT160 O/S 0.03,O/S 0.03 |
4 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-15020 |
4AL..AT160 STD,STD |
4 | ||
| 11136-15020 |
4AL..AT160 O/S 0.03,O/S 0.03 |
4 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-11021 |
4AL..AT160 L=8,OD=11 |
10 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90311-35013 |
4AL..AT160 |
1 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-15050 |
4AL..AT160 |
1 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-15011 |
4AL..AT160 |
1 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-15010 |
4AL..AT160 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11210-15040 |
4AL..AT160 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-08007 |
4AL..AT160 |
3 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-09001 |
4AL..AT160 |
3 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-15040 |
4AL..AT160 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-70010 |
4AL..AT160 |
1 | ||
| 12180-70010 |
4A#..AT160 |
1 | ||
| 12180-70010 |
4A#..AT160 |
1 | ||
| 12180-13030 |
4AL..AT160 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
4A#..AT160 |
1 | ||
| Common parts | ||||
| 90119-08598 | ||||
| 91611-60835 | ||||
| 91621-60818 | ||||
