AT160L-BCPSS (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 4AL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

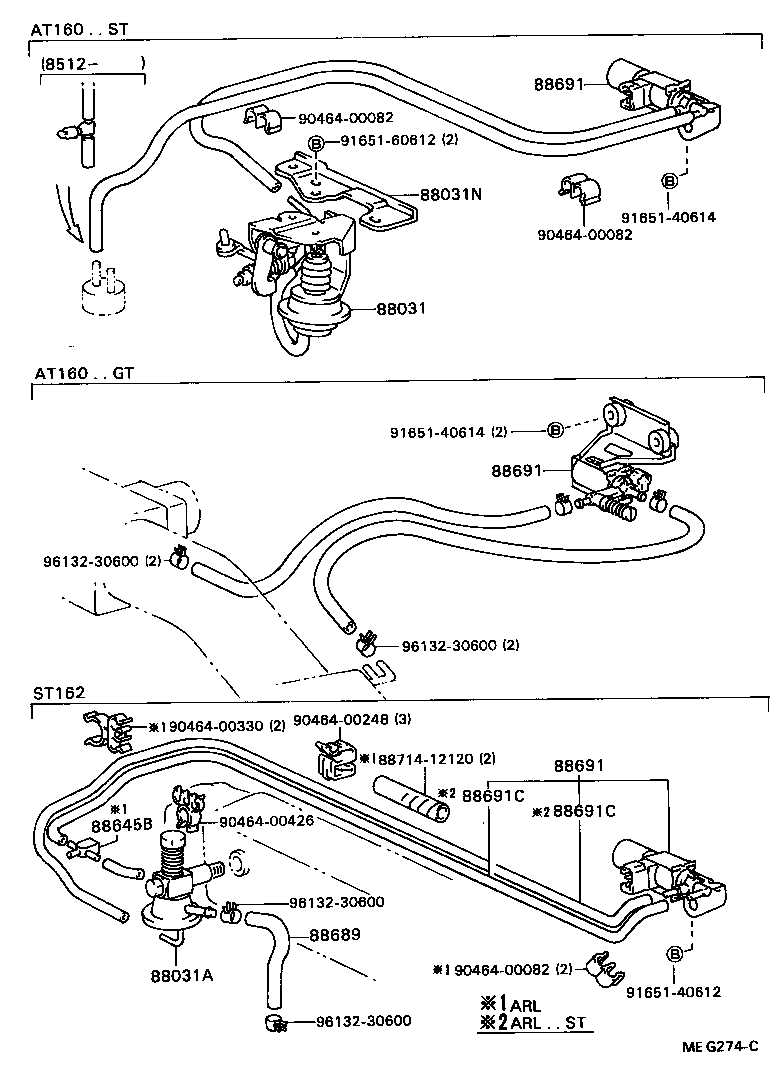

Click highlighted areas on diagram

diagram 88031 88031A 88031N 88645B 88689 88691 88691 88691 88691C 88691C 8871412120 9046400082 9046400082 9046400082 9046400248 9046400330 9046400426 9165140612 9165140614 9165140614 9165160612 9613230600 9613230600 9613230600 9613230600
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-12140

AT160..CBR

 1
88031N - BRACKET, IDLE-UP ACTUATOR
88688-12280

AT160..CBR

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-20621

AT160..CBR

 1
88690-20620

AT160..CBR

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-20621

AT160..CBR

 1
88690-20620

AT160..CBR

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-20621

AT160..CBR

 1
88690-20620

AT160..CBR

 1
Common parts
88714-12120
90464-00082
90464-00248
90464-00330
90464-00426
91651-40612
91651-40614
91651-60612
96132-30600
