AT160L-BCPSS (1985)
Toyota Celica
(8508- )

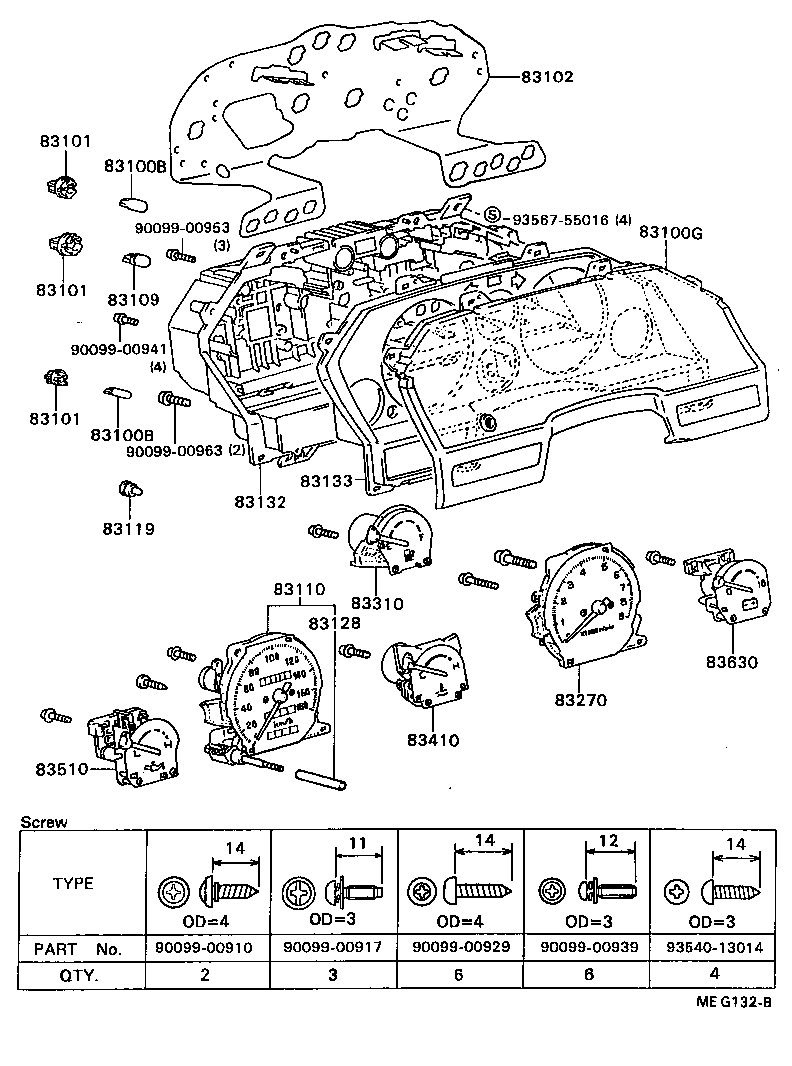

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AT160,ST162,182 12V 3.4W,12V 3.4W |
4 | ||
| 90981-11018 |
AT160,ST162,182 12V 1.2W W/O SOCKET,12V 1.4W |
8 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AT160,ST162,182 12V 3.4W,12V 3.4W |
4 | ||
| 90981-11018 |
AT160,ST162,182 12V 1.2W W/O SOCKET,12V 1.4W |
8 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-1B150 |
AT160,ST162..LHD |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AT160,ST162,182 BULB;12V 1.4W |
8 | ||
| 83101-14030 |
AT160,ST162,182 BULB;12V 3.4W |
8 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AT160,ST162,182 BULB;12V 1.4W |
8 | ||
| 83101-14030 |
AT160,ST162,182 BULB;12V 3.4W |
8 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AT160,ST162,182 BULB;12V 1.4W |
8 | ||
| 83101-14030 |
AT160,ST162,182 BULB;12V 3.4W |
8 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1J310 |
AT160..CBR |
1 | ||
| 83247-1J620 |
AT160..CBR |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
AT160 12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP |
4 | ||
| 83109-24020 |
AT160 12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2B470 |
AT160..CBR KM |
1 | ||
| 83110-2B500 |
AT160..CBR MILE/KM |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-14670 |
AT160,ST162,182 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1J350 |
AT160..CBR |
1 | ||
| 83132-1D280 |
AT160..CBR |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1B490 |
AT160,ST162..LHD |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1B190 |
AT160..CBR |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-14730 |
AT160,ST162..LHD |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1B130 |
AT160,ST162..LHD |
1 | ||
| 83244-1B110 |
AT160,ST162,182 |
1 | ||
| 83510 - GAGE ASSY, OIL PRESSURE RECEIVER | ||||
| 83246-14650 |
AT160,ST162,182 |
1 | ||
| 83630 - VOLTMETER ASSY | ||||
| 83251-14630 |
AT160,ST162,182 |
1 | ||
| Common parts | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90099-00941 | ||||
| 90099-00953 | ||||
| 90099-00963 | ||||
| 93540-13014 | ||||
| 93567-55016 | ||||
(8508- )

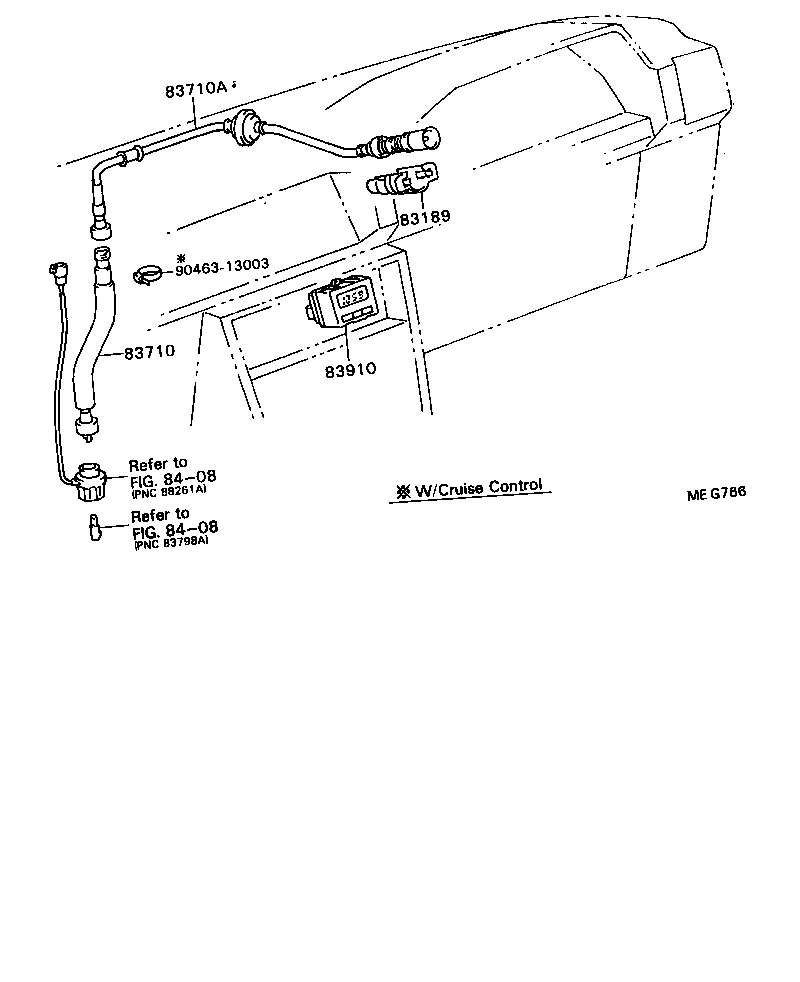

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
AT160,ST162,182 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-20510 |
AT160,ST162..LHD |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-20530 |
AT160,ST162..LHD |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20580 |
AT160,ST162,182 |
1 | ||
| Common parts | ||||
| 90463-13003 | ||||
| Linked diagrams | ||||
| 8408 | ||||
