AT160L-BCMSS (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 4AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )CBR

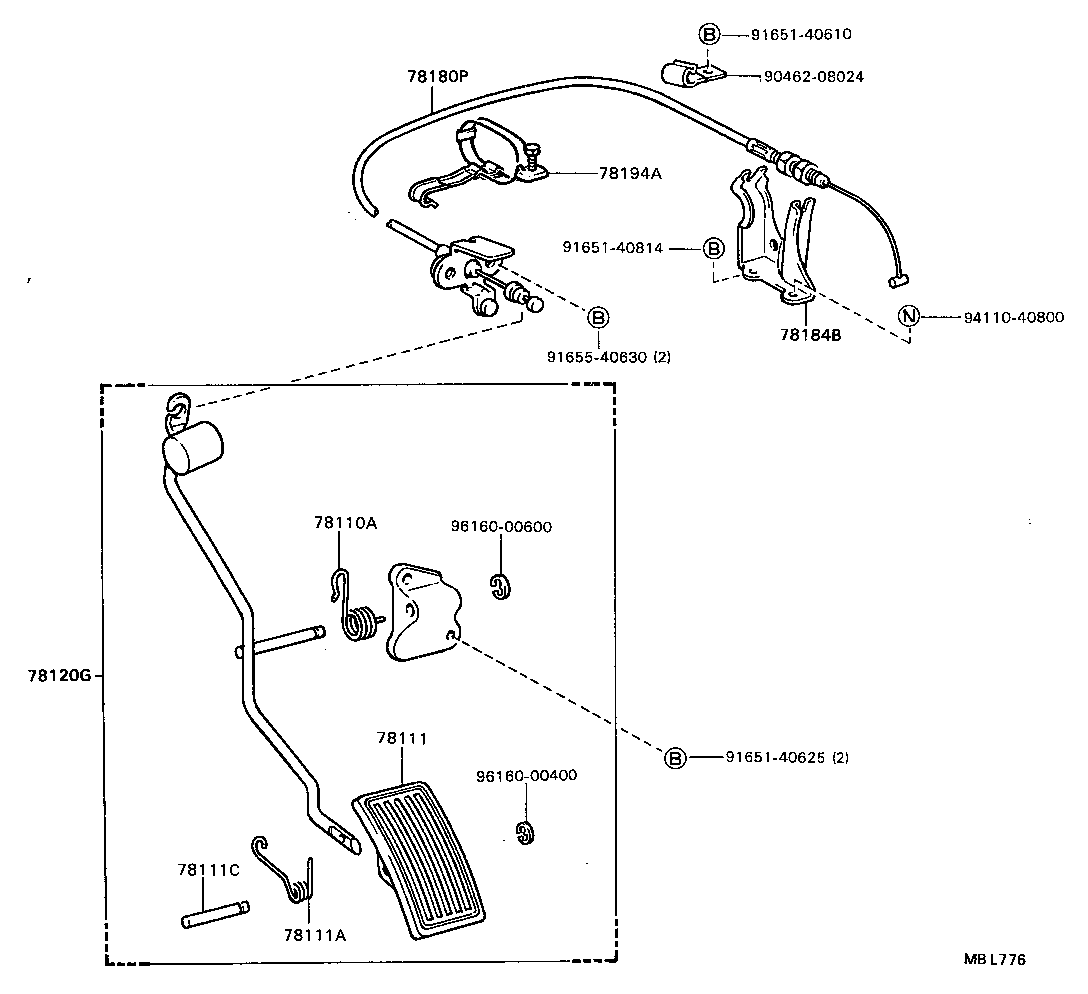

Click highlighted areas on diagram

diagram 78110A 78111 78111A 78111C 78120G 78180P 78184B 78194A 9046208024 9165140610 9165140625 9165140814 9165540630 9411040800 9616000400 9616000600
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26062

AT160,ST162..LHD..5F

 1
78111 - PEDAL, ACCELERATOR
78111-20030

AT160,ST162

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18050

ST162..4FC..ME;AT160,ST162..5F

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

AT160,ST162

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-20280

AT160,ST162..LHD..5F

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-20240

AT160..CBR

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-12160

AT160..CBR

 1
78194A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.4
78194-20040

AT160..CBR

 1
Common parts
90462-08024
91651-40610
91651-40625
91651-40814
91655-40630
94110-40800
96160-00400
96160-00600
