AT160L-BCMSS (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 4AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )CP ; (8508- )LB..ME

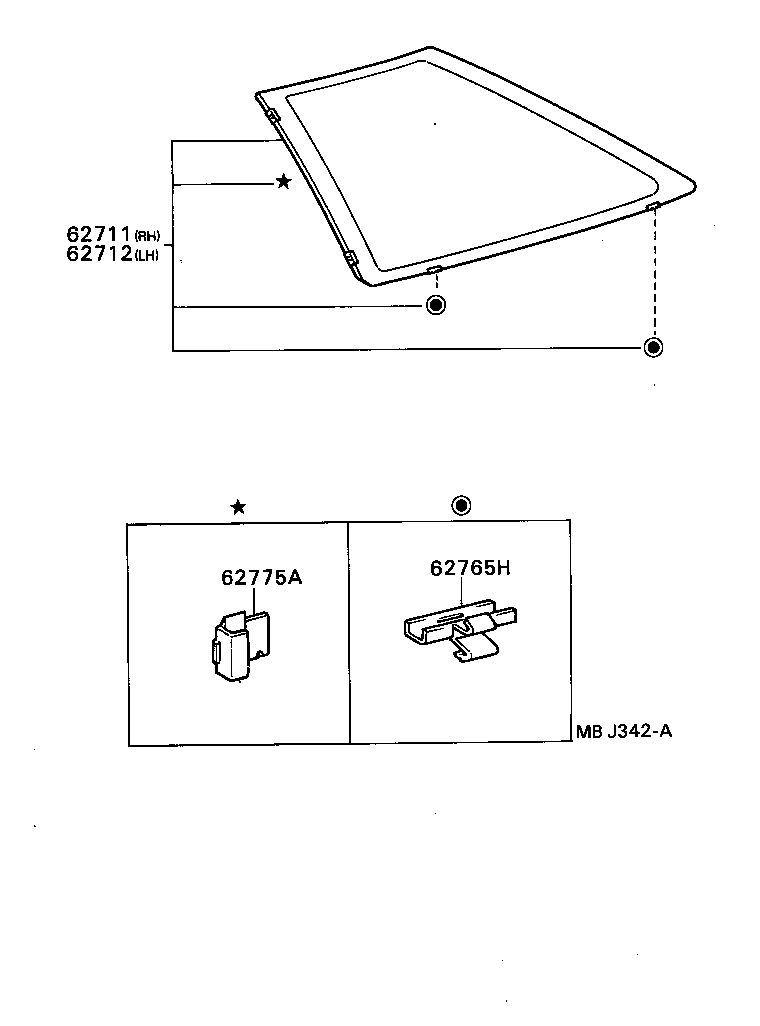

Click highlighted areas on diagram

diagram 62711 62712 62765H 62775A
Part # Description Qty Price
62711 - GLASS, QUARTER WINDOW, RH
62710-20070

AT160,ST162..CP

*TT,T=3.5,*TT,T=3.5

 1
62712 - GLASS, QUARTER WINDOW, LH
62720-20070

AT160,ST162..CP

*TT,T=3.5,*TT,T=3.5

 1
62765H - RETAINER, QUARTER WINDOW GLASS, LOWER
62765-20040

AT160,ST162,182

 4
62775A - CLIP, QUARTER WINDOW
62775-20010

AT160,ST162,182

 2
