AA63R-BCMQF (1983)

Toyota Celica

Production Aug 1983 - Jul 1985
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8507)AA63

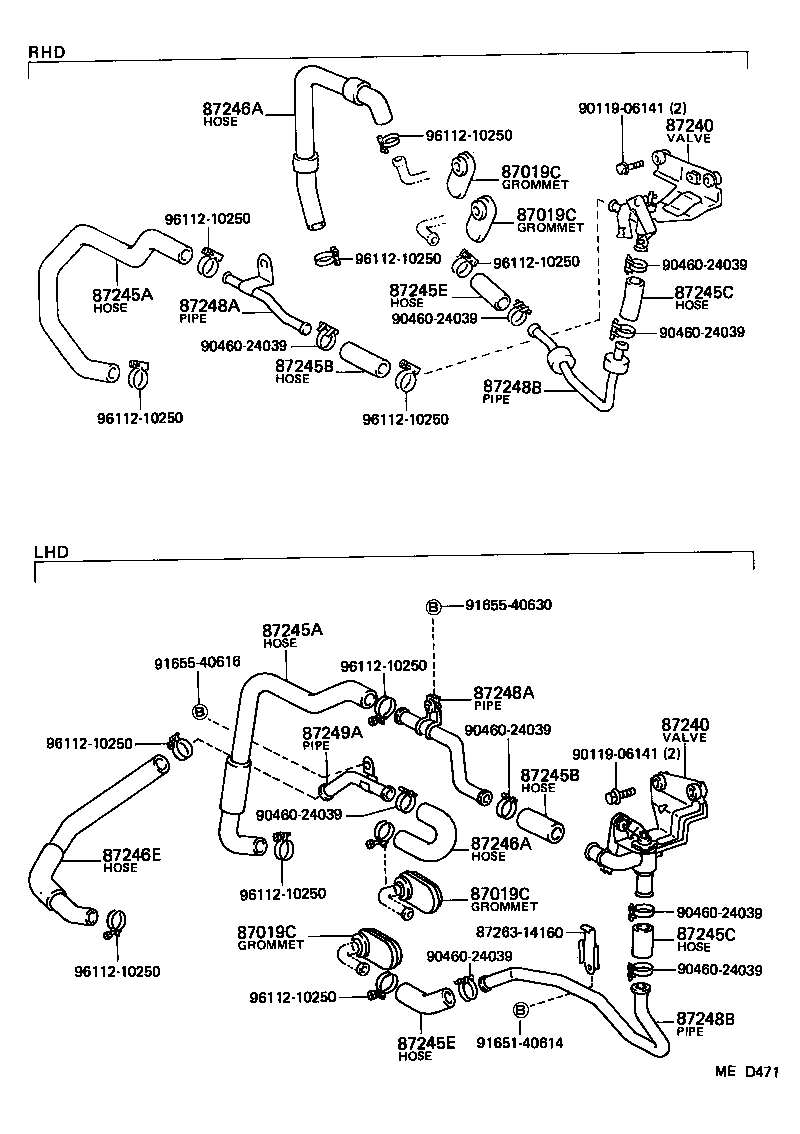

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87019C 87240 87240 87245A 87245A 87245B 87245B 87245C 87245C 87245E 87245E 87246A 87246A 87246E 87248A 87248A 87248B 87248B 87249A 8726314160 9011906141 9011906141 9046024039 9046024039 9046024039 9046024039 9046024039 9046024039 9046024039 9046024039 9046024039 9165140614 9165540616 9165540630 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01015

AA63,MA61,RA6#,SA63,TA60

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AA63,MA61,RA6#,SA63,TA60

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AA63,MA61,RA6#,SA63,TA60

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AA63,MA61,RA6#,SA63,TA60

 2
87240 - VALVE ASSY, HEATER WATER
87240-14110

AA63,MA61,RA6#,SA63..RHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-14110

AA63,MA61,RA6#,SA63..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-1B130

AA63..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-1B130

AA63..RHD

 1
87245B - HOSE, HEATER WATER, INLET B
99552-30100

AA63..RHD

*H,L=55

 1
99552-30055

AA63

 1
87245B - HOSE, HEATER WATER, INLET B
99552-30100

AA63..RHD

*H,L=55

 1
99552-30055

AA63

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-20570

AA63..RHD

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-20570

AA63..RHD

 1
87245E - HOSE, HEATER WATER, INLET E
99552-30100

AA63..RHD

*H,L=55

 1
99556-30055

AA63..RHD

*H,L=55

 1
87245E - HOSE, HEATER WATER, INLET E
99552-30100

AA63..RHD

*H,L=55

 1
99556-30055

AA63..RHD

*H,L=55

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-1B140

AA63..RHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-1B140

AA63..RHD

 1
87248A - PIPE, HEATER WATER INLET, A
87208-14260

AA63..RHD

 1
87248A - PIPE, HEATER WATER INLET, A
87208-14260

AA63..RHD

 1
87248B - PIPE, HEATER WATER INLET, B
87248-20260

AA63..RHD

 1
87248B - PIPE, HEATER WATER INLET, B
87248-20260

AA63..RHD

 1
Common parts
87263-14160
90119-06141
90460-24039
91651-40614
91655-40616
91655-40630
96112-10250
