AA63R-BCMQF (1983)

Toyota Celica

Production Aug 1983 - Jul 1985
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)AA63,TA60..5F

Click highlighted areas on diagram

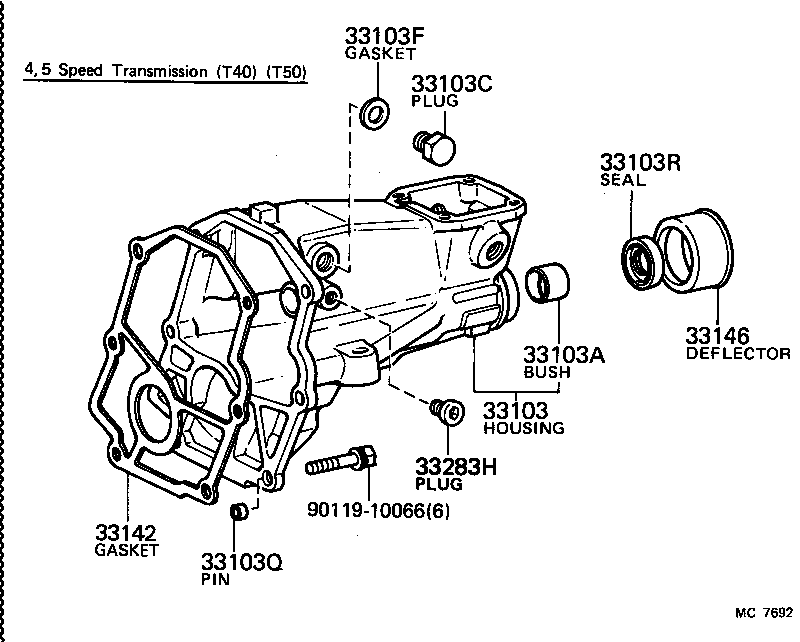

diagram 33103 33103A 33103C 33103F 33103Q 33103R 33142 33146 33283H 9011910066
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-14041

AA63,TA60

 1
33103-12130

AA63,TA60

 1
33103-14040

AA63,TA60..5F

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-72022

AA63,TA60..5F

 1
33103C - PLUG, NO.1(FOR EXTENSION HOUSING)
90341-18006

AA63,TA60

 1
33103F - GASKET(FOR EXTENSION HOUSING PLUG NO.1)
90430-18007

AA63,TA60..5F

 1
90430-18008

AA63,TA60

 1
33103Q - PIN, RING(FOR EXTENSION HOUSING)
90253-13017

AA63,TA60..5F

 2
33142 - GASKET, EXTENSION HOUSING(MTM)
33142-14010

AA63,TA60..5F

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-12010

AA63,TA60..5F

 1
33283H - PLUG, W/HEAD STRAIGHT SCREW
90341-10065

AA63,MA61,RA6#,SA63,TA60..5F

 2
Common parts
90119-10066
