AA63R-BCMQF (1983)

Toyota Celica

Production Aug 1983 - Jul 1985
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8507)4AGE

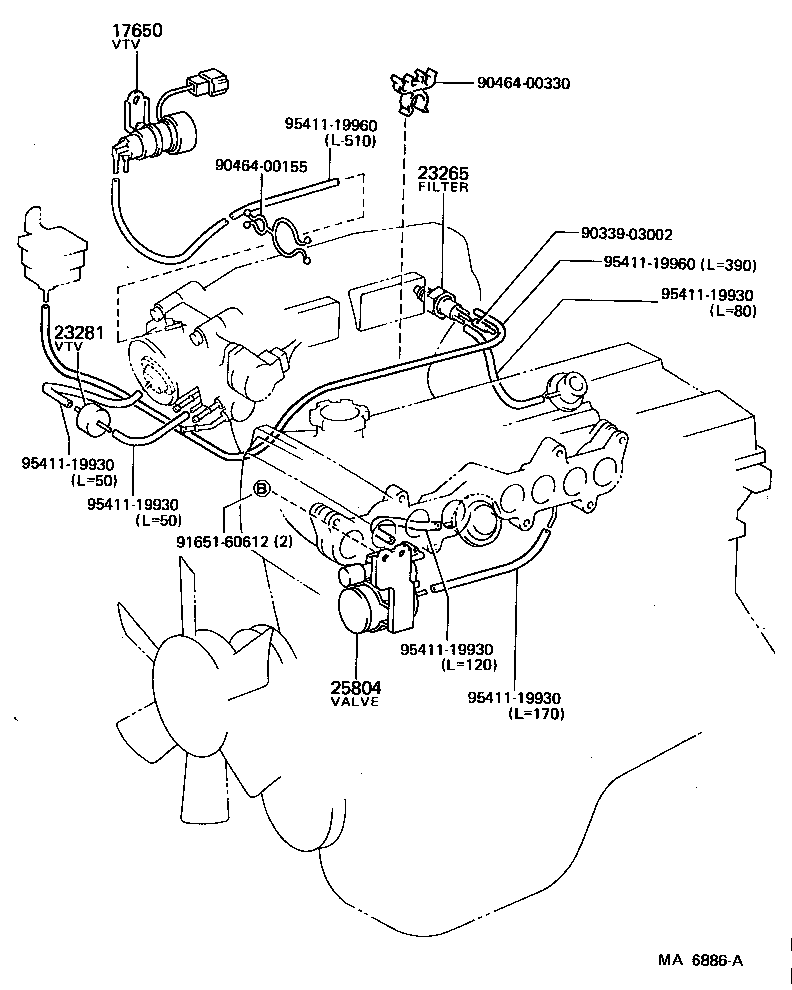

Click highlighted areas on diagram

diagram 17650 23265 23281 25804 9033903002 9046400155 9046400330 9165160612 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960 9541119960
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
89570-14191

4AGE..AA63

 1
23265 - FILTER, GAS, NO.1
90917-11027

4AGE..AA63

 1
25804 - VALVE SET, VACUUM CONTROL
25804-16010

4AGE..AA63

 1
Common parts
90339-03002
90464-00155
90464-00330
91651-60612
95411-19930
95411-19960
