TA62R-AEMNSW (1981)

Toyota Carina

Production Aug 1981 - Aug 1982
Engine 3T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )SED,WG

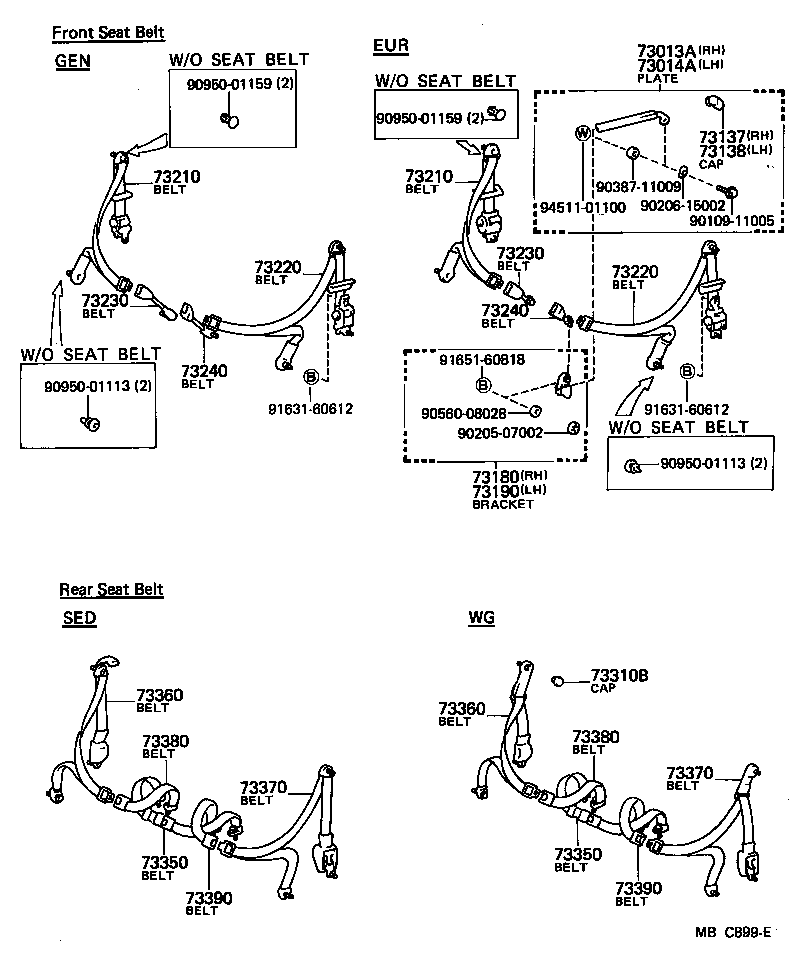

Click highlighted areas on diagram

diagram 73013A 73014A 73137 73138 73180 73190 73210 73210 73220 73220 73230 73230 73240 73240 73310B 73350 73350 73360 73360 73370 73370 73380 73380 73390 73390 9010911005 9020507002 9020615002 9038711009 9056008028 9095001113 9095001113 9095001159 9095001159 9163160612 9163160612 9165160818 9451101100
Part # Description Qty Price
73013A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
73013-1401004

CA60,TA6#..(CP,SED)..EUR

BLUE,BLUE,TRIM8#

 1
73013-1401006

CA60,TA6#..EUR

DARK BROWN,BROWN,TRIM4#

 1
73013-1401001

CA60,TA6#..EUR

BLACK,BLACK,TRIM2#

 1
73014A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
73014-1401004

CA60,TA6#..(CP,SED)..EUR

BLUE,BLUE,TRIM8#

 1
73014-1401006

CA60,TA6#..EUR

DARK BROWN,BROWN,TRIM4#

 1
73014-1401001

CA60,TA6#..EUR

BLACK,BLACK,TRIM2#

 1
73137 - CAP, FRONT SEAT BELT INNER ANCHOR, RH
73137-1401004

CA60,TA6#..(CP,SED)..EUR

BLUE,BLUE,TRIM8#

 1
73137-1401006

CA60,TA6#..EUR

DARK BROWN,BROWN,TRIM4#

 1
73137-1401001

CA60,TA6#..EUR

BLACK,BLACK,TRIM2#

 1
73138 - CAP, FRONT SEAT BELT INNER ANCHOR, LH
73138-1401006

CA60,TA6#..EUR

DARK BROWN,BROWN,TRIM4#

 1
73138-1401001

CA60,TA6#..EUR

BLACK,BLACK,TRIM2#

 1
73138-1401004

CA60,TA6#..(CP,SED)..EUR

BLUE,BLUE,TRIM8#

 1
73180 - BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
73011-14010

TA6#..EUR

 1
73190 - BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
73012-14010

TA6#..EUR

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-1421004

CA60,TA6#..SED..EUR

BLUE,BLUE,TRIM8#

 1
73210-1421001

CA60,TA6#..(SED,WG)..EUR

BLACK,BLACK,TRIM2#

 1
73210-1421006

CA60,TA6#..(SED,WG)..EUR

DARK BROWN,BROWN,TRIM4#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-1421004

CA60,TA6#..SED..EUR

BLUE,BLUE,TRIM8#

 1
73210-1421001

CA60,TA6#..(SED,WG)..EUR

BLACK,BLACK,TRIM2#

 1
73210-1421006

CA60,TA6#..(SED,WG)..EUR

DARK BROWN,BROWN,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-1415004

CA60,TA6#..SED..EUR

BLUE,BLUE,TRIM8#

 1
73220-1415006

CA60,TA6#..(SED,WG)..EUR

DARK BROWN,BROWN,TRIM4#

 1
73220-1415001

CA60,TA6#..(SED,WG)..EUR

BLACK,BLACK,TRIM2#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-1415004

CA60,TA6#..SED..EUR

BLUE,BLUE,TRIM8#

 1
73220-1415006

CA60,TA6#..(SED,WG)..EUR

DARK BROWN,BROWN,TRIM4#

 1
73220-1415001

CA60,TA6#..(SED,WG)..EUR

BLACK,BLACK,TRIM2#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-1418004

TA6#..(CP,SED)..EUR

BLUE,BLUE,TRIM8#

 1
73230-1418001

TA6#..EUR

BLACK,BLACK,TRIM2#

 1
73230-1418006

TA6#..EUR

DARK BROWN,BROWN,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-1418004

TA6#..(CP,SED)..EUR

BLUE,BLUE,TRIM8#

 1
73230-1418001

TA6#..EUR

BLACK,BLACK,TRIM2#

 1
73230-1418006

TA6#..EUR

DARK BROWN,BROWN,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-1418001

TA6#..EUR

BLACK,BLACK,TRIM2#

 1
73230-1418004

TA6#..(CP,SED)..EUR

BLUE,BLUE,TRIM8#

 1
73230-1418006

TA6#..EUR

DARK BROWN,BROWN,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-1418001

TA6#..EUR

BLACK,BLACK,TRIM2#

 1
73230-1418004

TA6#..(CP,SED)..EUR

BLUE,BLUE,TRIM8#

 1
73230-1418006

TA6#..EUR

DARK BROWN,BROWN,TRIM4#

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-1402001

TA6#..EUG

BLACK,BLACK,TRIM2#

 1
73350-1402006

TA6#..EUG

DARK BROWN,BROWN,TRIM4#

 1
73350-1402004

TA6#..EUG

BLUE,BLUE,TRIM8#

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-1402001

TA6#..EUG

BLACK,BLACK,TRIM2#

 1
73350-1402006

TA6#..EUG

DARK BROWN,BROWN,TRIM4#

 1
73350-1402004

TA6#..EUG

BLUE,BLUE,TRIM8#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-1411004

CA60,TA6#..SED

BLUE,BLUE,TRIM8#

 1
73360-1411001

CA60,TA6#..SED

BLACK,BLACK,TRIM2#

 1
73360-1411006

CA60,TA6#..SED

DARK BROWN,BROWN,TRIM4#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-1411004

CA60,TA6#..SED

BLUE,BLUE,TRIM8#

 1
73360-1411001

CA60,TA6#..SED

BLACK,BLACK,TRIM2#

 1
73360-1411006

CA60,TA6#..SED

DARK BROWN,BROWN,TRIM4#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-1403004

CA60,TA6#..SED

BLUE,BLUE,TRIM8#

 1
73370-1403001

CA60,TA6#..SED

BLACK,BLACK,TRIM2#

 1
73370-1403006

CA60,TA6#..SED

DARK BROWN,BROWN,TRIM4#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-1403004

CA60,TA6#..SED

BLUE,BLUE,TRIM8#

 1
73370-1403001

CA60,TA6#..SED

BLACK,BLACK,TRIM2#

 1
73370-1403006

CA60,TA6#..SED

DARK BROWN,BROWN,TRIM4#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-1406001

CA60,TA6#..SED

BLACK,BLACK,TRIM2#

 1
73380-1406006

CA60,TA6#..SED

DARK BROWN,BROWN,TRIM4#

 1
73380-1406004

CA60,TA6#..SED

BLUE,BLUE,TRIM8#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-1406001

CA60,TA6#..SED

BLACK,BLACK,TRIM2#

 1
73380-1406006

CA60,TA6#..SED

DARK BROWN,BROWN,TRIM4#

 1
73380-1406004

CA60,TA6#..SED

BLUE,BLUE,TRIM8#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-1406004

CA60,TA6#..SED

BLUE,BLUE,TRIM8#

 1
73380-1406001

CA60,TA6#..SED

BLACK,BLACK,TRIM2#

 1
73380-1406006

CA60,TA6#..SED

DARK BROWN,BROWN,TRIM4#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-1406004

CA60,TA6#..SED

BLUE,BLUE,TRIM8#

 1
73380-1406001

CA60,TA6#..SED

BLACK,BLACK,TRIM2#

 1
73380-1406006

CA60,TA6#..SED

DARK BROWN,BROWN,TRIM4#

 1
Common parts
90109-11005
90205-07002
90206-15002
90387-11009
90560-08028
90950-01113
90950-01159
91631-60612
91651-60818
94511-01100
