TA62R-AEMNSW (1981)

Toyota Carina

Production Aug 1981 - Aug 1982
Engine 3T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

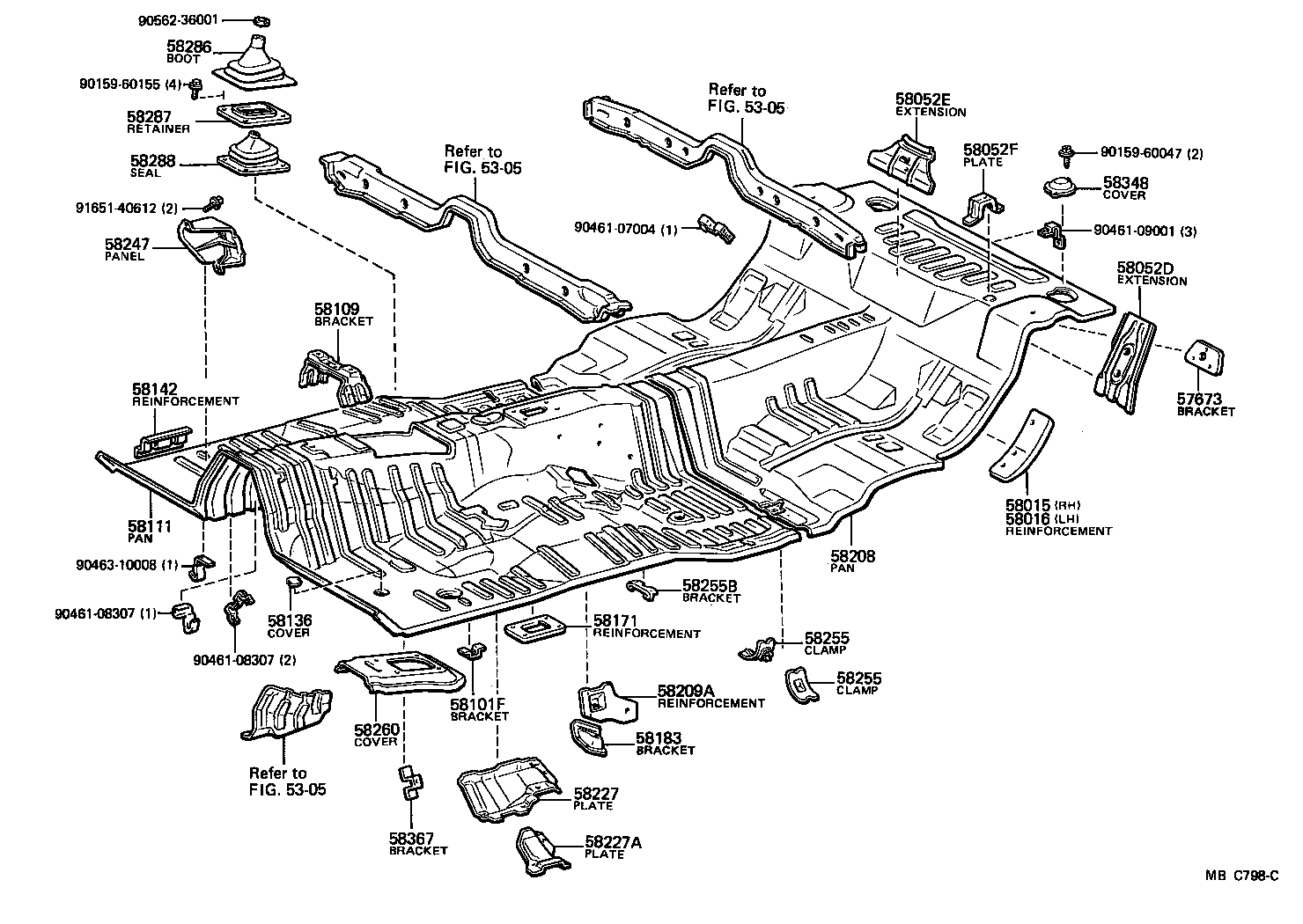

Click highlighted areas on diagram

diagram 5305 5305 5305 57673 58015 58016 58052D 58052E 58052F 58101F 58109 58111 58136 58142 58171 58183 58208 58209A 58227 58227A 58247 58255 58255 58255B 58260 58286 58287 58288 58348 58367 9015960047 9015960155 9046107004 9046108307 9046108307 9046109001 9046310008 9056236001 9165140612
Part # Description Qty Price
58015 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58015-20011

CA60,TA6#..SED,WG

 1
58016 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58016-20011

CA60,TA6#..SED,WG

 1
58052D - EXTENSION, CENTER FLOOR TO PACKAGE TRAY
64218-14020

CA60,TA6#..SED

LH

 1
64217-14030

CA60,TA6#..SED

RH

 1
58052E - EXTENSION, CENTER FLOOR TO BRACE
64227-14040

CA60,TA6#..SED

 1
58101F - BRACKET, MOUNTING, FLOOR, NO.1
58131-12020

CA60,TA6#

 7
58109 - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING
58193-24010

CA60,TA6#

 1
58111 - PAN, FRONT FLOOR
58111-24010

CA60,TA6#

 1
58136 - COVER, FRONT FLOOR HOLE
58136-24010

CA60,TA6#

 2
58142 - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN
58141-24010

CA60,TA6#

 2
58171 - REINFORCEMENT, PARKING BRAKE BASE
58171-24010

CA60,TA6#

 1
58183 - BRACKET, FRONT SEAT MOUNTING, INNER
58183-24010

CA60,TA6#

RH

 1
58184-24010

CA60,TA6#

LH

 1
58208 - PAN, CENTER FLOOR
58211-14080

CA60,TA6#..SED

 1
58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58278-24010

CA60,TA6#

LH

 1
58205-14020

TA6#

RH

 1
58227 - PLATE, AIR GUIDE, OUTSIDE
58227-24010

CA60,TA6#

LH

 1
58226-24010

CA60,TA6#

RH

 1
58227A - PLATE, AIR GUIDE
58228-24010

CA60,TA6#

RH

 1
58229-24010

CA60,TA6#

LH

 1
58247 - PANEL, FOOTREST, INSIDE
58191-24010

CA60,TA6#..(CP,SED)..RHD

 1
58255 - CLAMP, PARKING BRAKE CABLE, NO.1
58208-14020

CA60,TA6#

LH

 1
58207-14020

CA60,TA6#

RH

 1
58255 - CLAMP, PARKING BRAKE CABLE, NO.1
58208-14020

CA60,TA6#

LH

 1
58207-14020

CA60,TA6#

RH

 1
58255B - BRACKET, PARKING BRAKE CABLE GUIDE, NO.1
58264-14010

CA60,TA6#

 1
58260 - COVER ASSY, TRANSMISSION, FRONT
58281-14080

CA60,TA6#..MTM

 1
58286 - BOOT, SHIFT & SELECT LEVER, NO.1
58286-14060

CA60,TA6#..MTM

 1
58287 - RETAINER, SHIFT LEVER BOOT
58287-14040

CA60,TA6#..MTM

 1
58288 - SEAL, SHIFT LEVER BOOT
58288-14070

CA60,TA6#..MTM

 1
58348 - COVER, REAR ABSORBER SERVICE HOLE
58348-14010

TA6#

RH

 1
58349-14010

TA6#

LH

 1
58367 - BRACKET, FUEL TUBE CLAMP
58266-14040

CA60,TA6#

 1
Common parts
90159-60047
90159-60155
90461-07004
90461-08307
90461-09001
90463-10008
90562-36001
91651-40612
Linked diagrams
5305

(8108- )CP,SED

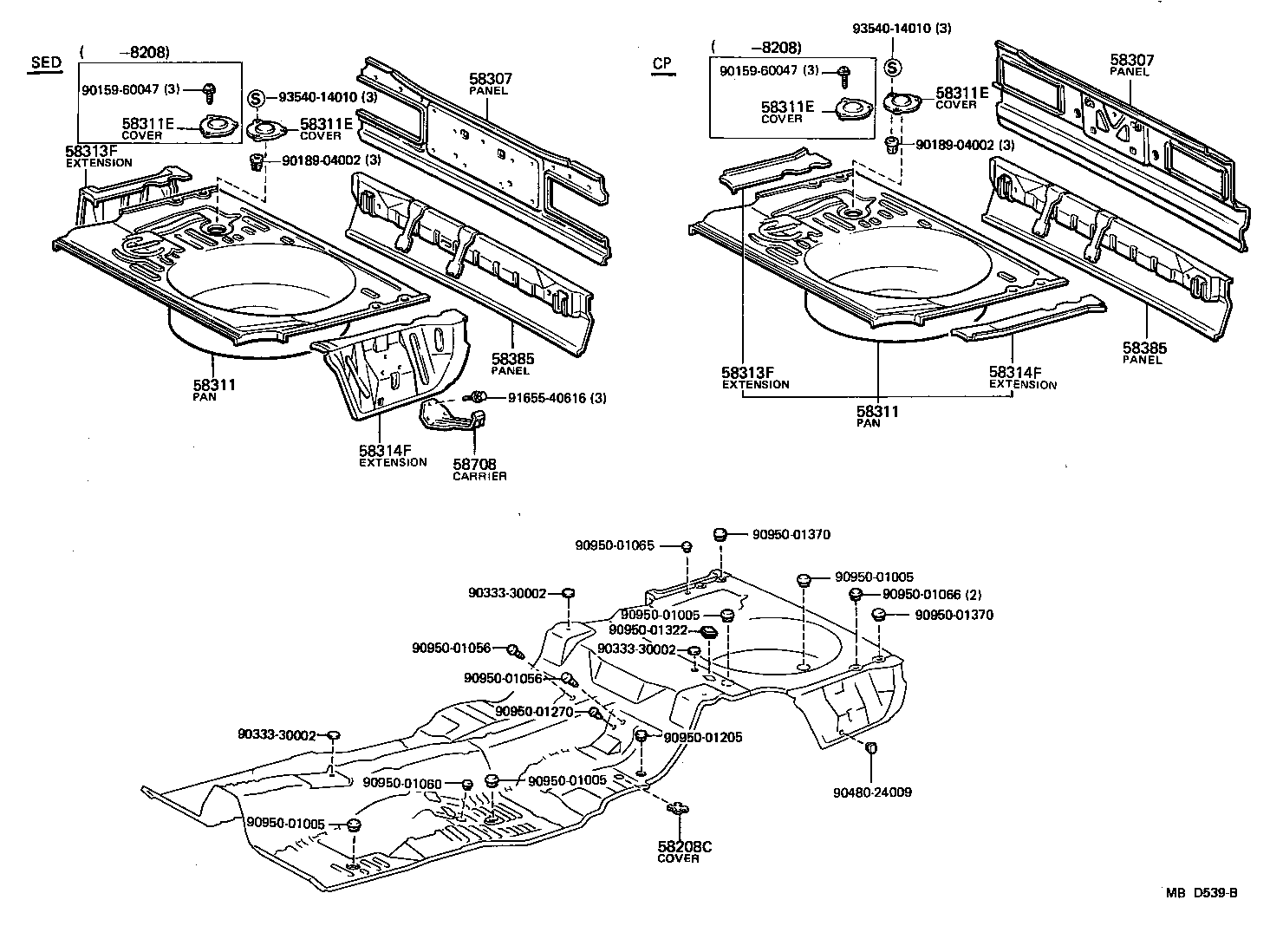

Click highlighted areas on diagram

diagram 58208C 58307 58307 58311 58311 58311E 58311E 58311E 58311E 58313F 58313F 58314F 58314F 58385 58385 58708 9015960047 9015960047 9018904002 9018904002 9033330002 9033330002 9033330002 9048024009 9095001005 9095001005 9095001005 9095001005 9095001056 9095001056 9095001060 9095001065 9095001066 9095001205 9095001270 9095001322 9095001370 9095001370 9165540616 9354014010 9354014010
Part # Description Qty Price
58208C - COVER, CENTER FLOOR HOLE
58285-14010

CA60,TA6#

 2
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-14350

CA60,TA6#..SED..EUG

W/O LICENCE BRACKET

 1
58307-14520

CA60,TA6#..SED

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-14350

CA60,TA6#..SED..EUG

W/O LICENCE BRACKET

 1
58307-14520

CA60,TA6#..SED

 1
58311 - PAN, REAR FLOOR
58301-14920

CA60,TA6#..SED

 1
58311 - PAN, REAR FLOOR
58301-14920

CA60,TA6#..SED

 1
58311E - COVER, REAR FLOOR SERVICE HOLE
58325-14020

CA60,TA6#

 1
58311E - COVER, REAR FLOOR SERVICE HOLE
58325-14020

CA60,TA6#

 1
58311E - COVER, REAR FLOOR SERVICE HOLE
58325-14020

CA60,TA6#

 1
58311E - COVER, REAR FLOOR SERVICE HOLE
58325-14020

CA60,TA6#

 1
58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58313-14110

CA60,TA6#..SED

 1
58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58313-14110

CA60,TA6#..SED

 1
58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58306-14050

CA60,TA6#..SED

 1
58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58306-14050

CA60,TA6#..SED

 1
58385 - PANEL, REAR VALANCE
58308-14060

CA60,TA6#..CP,SED

 1
58385 - PANEL, REAR VALANCE
58308-14060

CA60,TA6#..CP,SED

 1
58708 - CARRIER SUB-ASSY, JACK
58791-12050

CA60,TA6#..SED

 1
Common parts
90159-60047
90189-04002
90333-30002
90480-24009
90950-01005
90950-01056
90950-01060
90950-01065
90950-01066
90950-01205
90950-01270
90950-01322
90950-01370
91655-40616
93540-14010
