TA62R-AEMNSW (1981)

Toyota Carina

Production Aug 1981 - Aug 1982
Engine 3T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

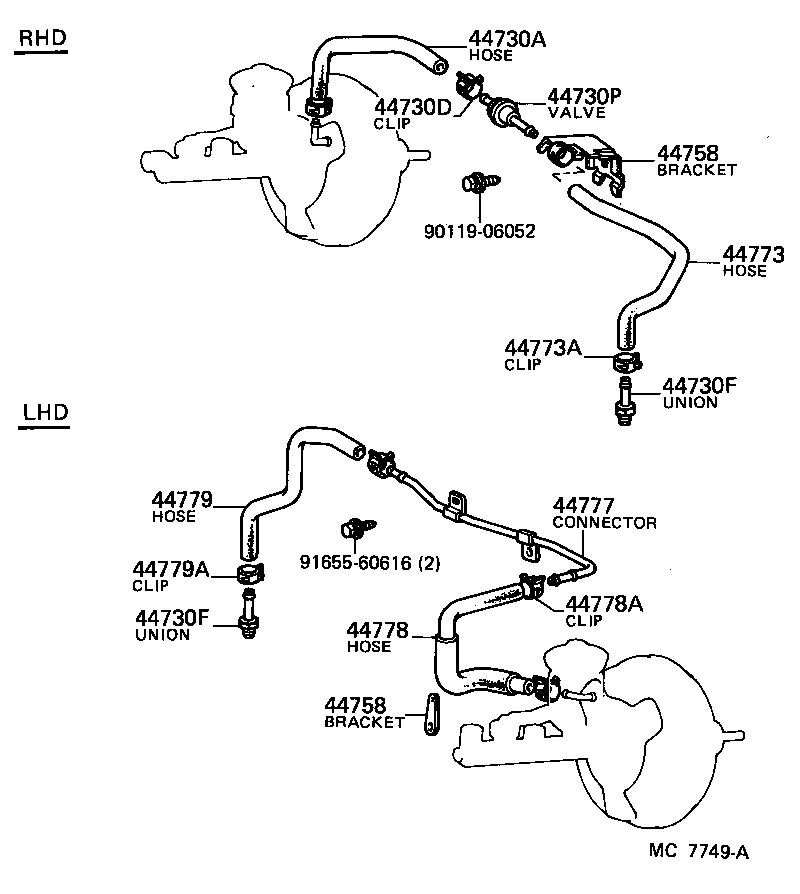

(8108- )TA6#

Click highlighted areas on diagram

diagram 44730A 44730D 44730F 44730F 44730P 44758 44758 44773 44773A 44777 44778 44778A 44779 44779A 9011906052 9165560616
Part # Description Qty Price
44730A - HOSE, VACUUM, NO.1
44772-14120

TA6#..RHD

 1
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16002

CA60;TA6#..RHD

 2
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

TA6#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

TA6#

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-10010

TA6#..RHD

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-14100

TA6#..RHD

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-14100

TA6#..RHD

 1
44773 - HOSE, VACUUM, NO.2
44773-14340

TA6#..RHD

 1
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16002

CA60;TA6#..RHD

 2
Common parts
90119-06052
91655-60616

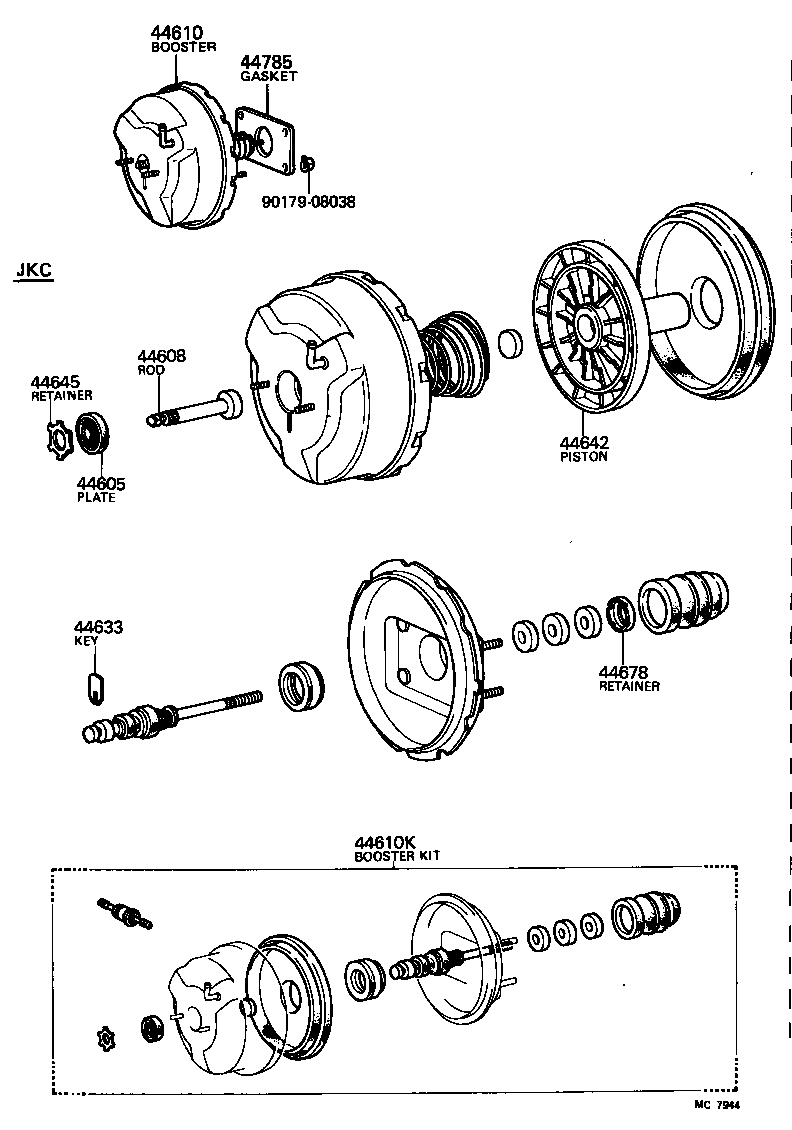

(8108- )TA6#..RHD

Click highlighted areas on diagram

diagram 44605 44608 44610 44610K 44633 44642 44645 44678 44785 9017908038
Part # Description Qty Price
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-22021

TA6#..RHD

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-14040

TA6#..RHD

JKC

 1
44610 - BOOSTER ASSY, BRAKE
44610-14510

TA6#..RHD

JKC

 1
44610K - BOOSTER KIT, BRAKE
04443-14330

TA6#..RHD

JKC

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-22020

TA6#..RHD

 1
44642 - PISTON, BRAKE BOOSTER
44642-20140

TA6#..RHD

JKC

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

TA6#..RHD

 1
44678 - RETAINER, BOOSTER AIR CLEANER
44678-22020

TA6#..RHD

 1
44785 - GASKET, BRAKE BOOSTER
44785-20030

CA60,TA6#

 1
Common parts
90179-08038
