TA62R-ACMESW (1981)
Toyota Carina
Production
Aug 1981
-
Sep 1983
Engine
3T
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )CP

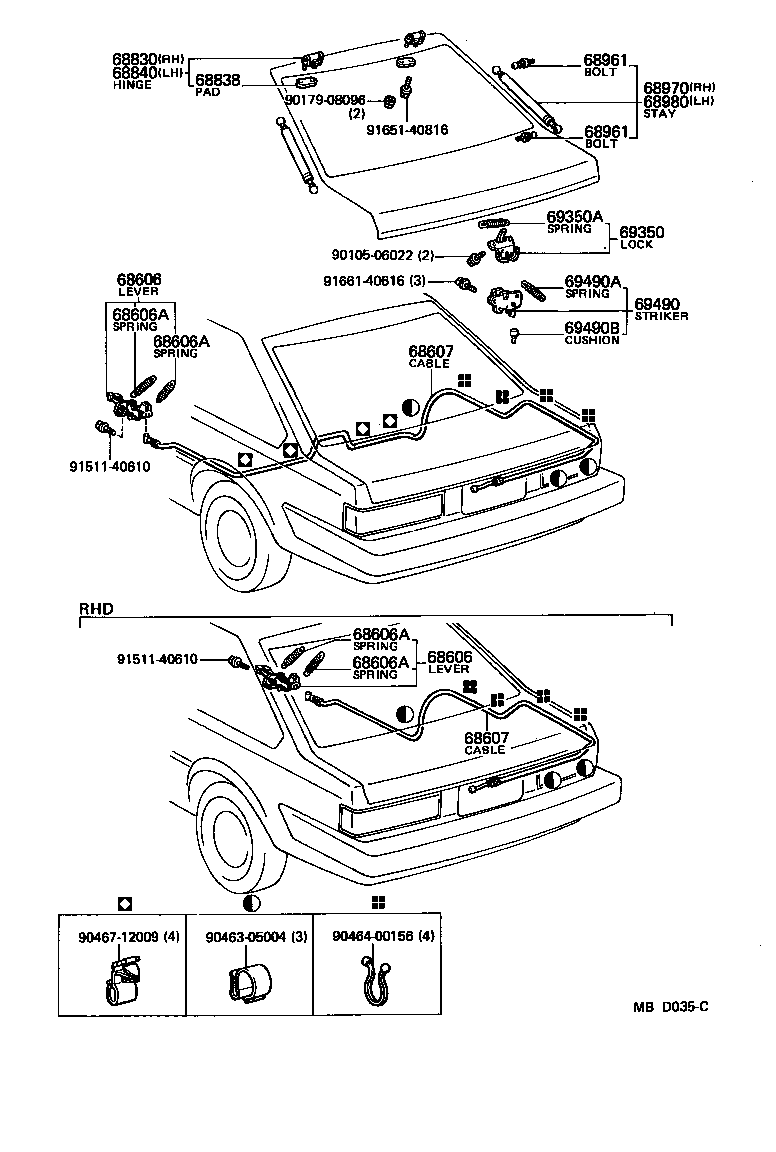

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68830 - HINGE ASSY, BACK DOOR, RH | ||||
| 68801-14030 |
TA6#..CP |
1 | ||
| 68801-20020 |
TA6#..CP |
1 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-14021 |
TA6#..CP |
2 | ||
| 68840 - HINGE ASSY, BACK DOOR, LH | ||||
| 68801-14030 |
TA6#..CP |
1 | ||
| 68801-20020 |
TA6#..CP |
1 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-14020 |
TA6#..CP |
4 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-14020 |
TA6#..CP |
4 | ||
| 68970 - STAY ASSY, BACK DOOR, RH | ||||
| 68950-19205 |
TA6#..CP..EUR |
1 | ||
| 68950-19195 |
TA6#..CP..EUR W/RR WIPER |
1 | ||
| 68980 - STAY ASSY, BACK DOOR | ||||
| 68950-19195 |
TA6#..CP..EUR W/RR WIPER |
1 | ||
| 68950-19205 |
TA6#..CP..EUR |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-14031 |
TA6#..CP |
1 | ||
| 69350A - SPRING(FOR BACK DOOR LOCK) | ||||
| 90506-08020 |
TA6#..CP |
1 | ||
| 69490 - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-14080 |
TA6#..CP |
1 | ||
| 69490A - SPRING(FOR BACK DOOR LOCK STRIKER) | ||||
| 90501-07484 |
TA6#..CP WD=0.7 |
1 | ||
| 69490B - CUSHION(FOR BACK DOOR LOCK STRIKER) | ||||
| 90541-06010 |
TA6#..CP |
1 | ||
| Common parts | ||||
| 90105-06022 | ||||
| 90179-08096 | ||||
| 90463-05004 | ||||
| 90464-00156 | ||||
| 90467-12009 | ||||
| 91511-40610 | ||||
| 91651-40816 | ||||
| 91661-40616 | ||||
