TA62L-AEHNSW (1981)
Toyota Carina
Production
Aug 1981
-
Aug 1982
Engine
3T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )

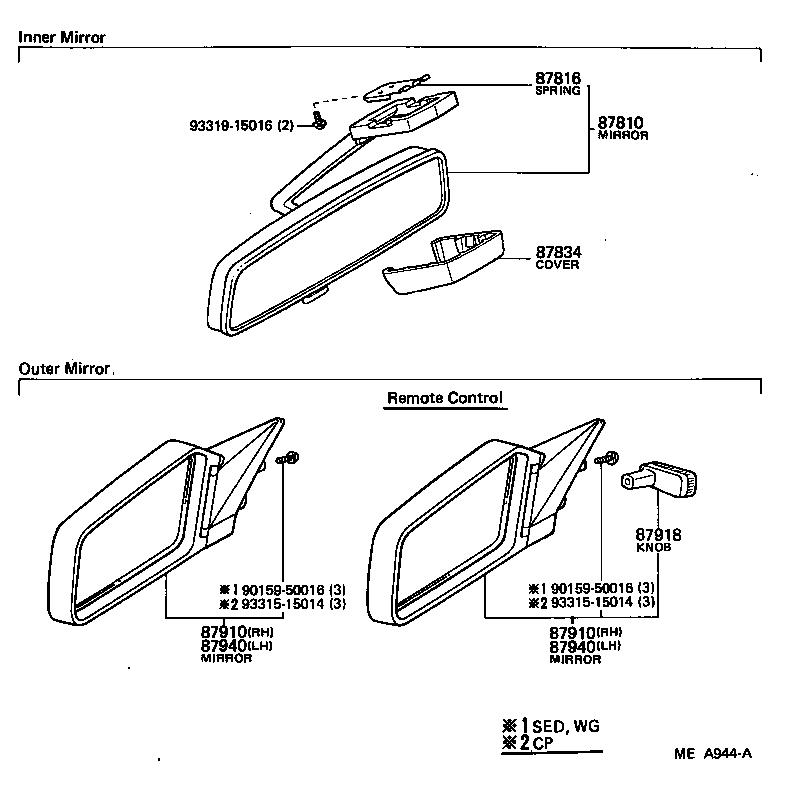

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-2216126 |
CA60,TA6#..EUR DARK BROWN,BROWN,TRIM4# |
1 | ||
| 87810-2216124 |
CA60,TA6#..EUR BLUE,BLUE,TRIM8# |
1 | ||
| 87810-2216101 |
CA60,TA6#..EUR BLACK,BLACK,TRIM2# |
1 | ||
| 87816 - SPRING, INNER REAR VIEW MIRROR | ||||
| 74372-30030 |
CA60,TA6# |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87834-2008008 |
CA60,TA6# IVORY,IVORY |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-14370 |
CA60,TA6#..(SED,WG)..LHD |
1 | ||
| 87910-14620 |
CA60,TA6#..(SED,WG)..LHD REMOTE-CONTROL |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-14370 |
CA60,TA6#..(SED,WG)..LHD |
1 | ||
| 87910-14620 |
CA60,TA6#..(SED,WG)..LHD REMOTE-CONTROL |
1 | ||
| 87918 - KNOB, CONTROL OUTER MIRROR | ||||
| 87918-14050 |
TA6#..SED,WG |
2 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-14380 |
CA60,TA6#..(SED,WG)..LHD REMOTE-CONTROL |
1 | ||
| 87940-14370 |
CA60,TA6#..(SED,WG)..LHD |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-14380 |
CA60,TA6#..(SED,WG)..LHD REMOTE-CONTROL |
1 | ||
| 87940-14370 |
CA60,TA6#..(SED,WG)..LHD |
1 | ||
| Common parts | ||||
| 90159-50016 | ||||
| 93315-15014 | ||||
| 93319-15016 | ||||
