TA62L-AEHNSW (1981)

Toyota Carina

Production Aug 1981 - Aug 1982
Engine 3T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

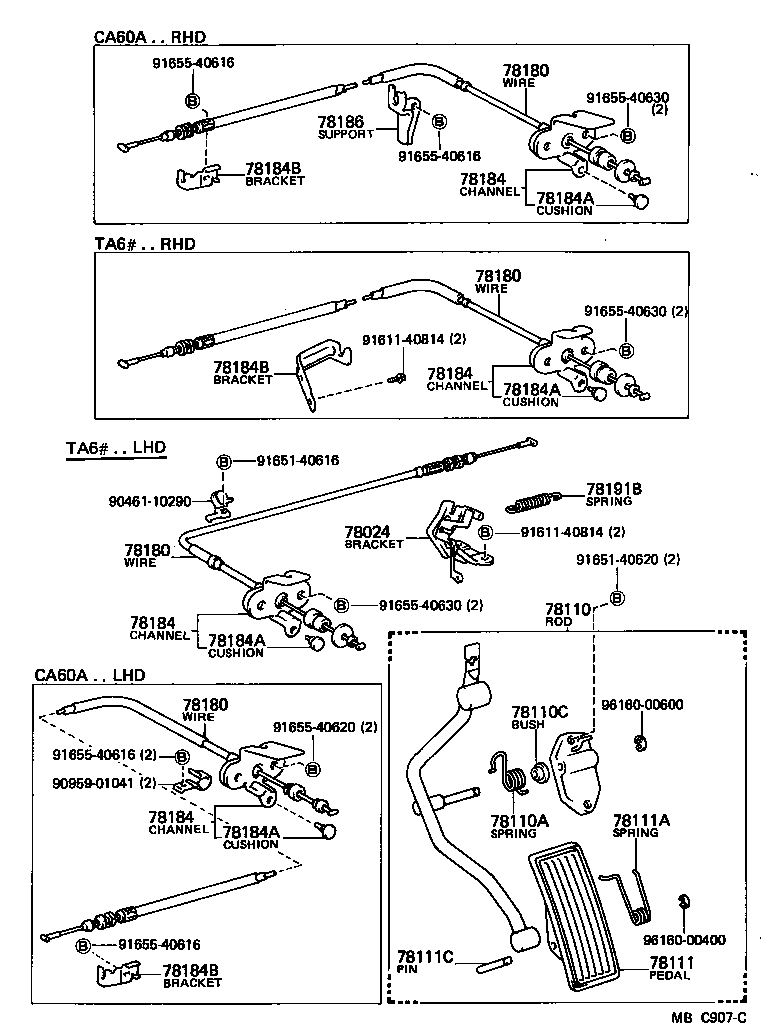

Click highlighted areas on diagram

diagram 78024 78110 78110A 78110C 78111 78111A 78111C 78180 78180 78180 78180 78184 78184 78184 78184 78184A 78184A 78184A 78184A 78184B 78184B 78184B 78186 78191B 9046110290 9095901041 9161140814 9161140814 9165140616 9165140620 9165540616 9165540616 9165540616 9165540616 9165540620 9165540630 9165540630 9165540630 9616000400 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-12010

TA6#..LHD

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-14340

TA6#..LHD..3FC

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18033

TA6#..3FC

 1
78111 - PEDAL, ACCELERATOR
78111-12100

CA60,TA6#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23003

CA60,TA6#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

CA60,TA6#

 1
78180 - WIRE ASSY, ACCELERATOR
78180-14350

TA6#..LHD

 1
78180 - WIRE ASSY, ACCELERATOR
78180-14350

TA6#..LHD

 1
78180 - WIRE ASSY, ACCELERATOR
78180-14350

TA6#..LHD

 1
78180 - WIRE ASSY, ACCELERATOR
78180-14350

TA6#..LHD

 1
78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER
78181-14060

CA60,TA6#

 1
78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER
78181-14060

CA60,TA6#

 1
78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER
78181-14060

CA60,TA6#

 1
78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER
78181-14060

CA60,TA6#

 1
78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
90541-06008

CA60,TA6#

 1
78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
90541-06008

CA60,TA6#

 1
78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
90541-06008

CA60,TA6#

 1
78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
90541-06008

CA60,TA6#

 1
78191B - SPRING, TENSION (FOR ACCELERATOR WIRE SUPPORT BRACKET)
90507-08002

TA6#..LHD

 2
Common parts
90461-10290
90959-01041
91611-40814
91651-40616
91651-40620
91655-40616
91655-40620
91655-40630
96160-00400
96160-00600
