TA62L-AEHNSW (1981)

Toyota Carina

Production Aug 1981 - Aug 1982
Engine 3T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )SED,WG

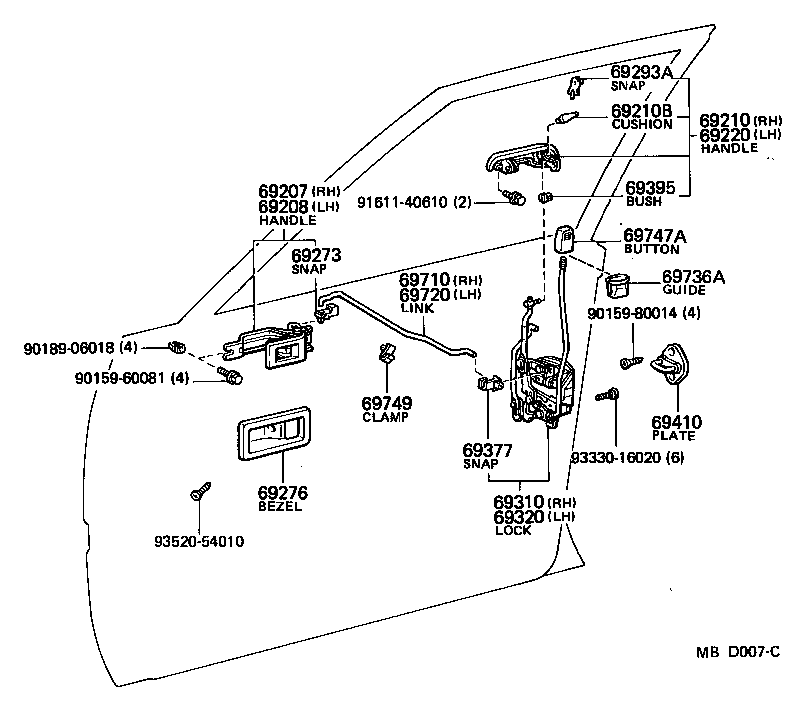

Click highlighted areas on diagram

diagram 69207 69208 69210 69210B 69220 69273 69276 69293A 69310 69320 69377 69395 69410 69710 69720 69736A 69747A 69749 9015960081 9015980014 9018906018 9161140610 9333016020 9352054010
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-1404001

CA60,TA6#..SED,WG

BLACK,BLACK,TRIM2#

 1
69205-1404006

CA60,TA6#..SED,WG

DARK BROWN,BROWN,TRIM4#

 1
69205-1404004

CA60,TA6#..SED

BLUE,BLUE,TRIM8#

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-1404006

CA60,TA6#..SED,WG

DARK BROWN,BROWN,TRIM4#

 1
69206-1404001

CA60,TA6#..SED,WG

BLACK,BLACK,TRIM2#

 1
69206-1404004

CA60,TA6#..SED

BLUE,BLUE,TRIM8#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-14050

CA60,TA6#..DLX,GL

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

CA60,TA6#

 2
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-14050

CA60,TA6#..DLX,GL

 1
69273 - SNAP, DOOR INSIDE HANDLE ROD
69759-14050

CA60,TA6#..SED,WG

RH

 1
69759-24070

CA60,TA6#..SED,WG

LH

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-1604006

CA60,TA6#..SED,WG

DARK BROWN,BROWN,TRIM4#

 2
69277-1604001

CA60,TA6#..SED,WG

BLACK,BLACK,TRIM2#

 2
69277-1604014

CA60,TA6#..SED

BLUE,BLUE,TRIM8#

 2
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-16020

CA60,TA6#

LH

 1
69293-16010

CA60,TA6#

RH

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-14150

CA60,TA6#..SED,WG

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-14120

CA60,TA6#..SED,WG

 1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69759-24050

CA60,TA6#..SED,WG

LH

 1
69759-24060

CA60,TA6#..SED,WG

RH

 1
69395 - BUSH(FOR DOOR OUTSIDE HANDLE)
90386-06030

CA60,TA6#

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-14040

CA60,TA6#

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-14050

CA60,TA6#..SED,WG

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-14050

CA60,TA6#..SED,WG

 1
69736A - GUIDE, FRONT DOOR LOCK LINK
69736-22021

CA60,TA6#..SED,WG

 2
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69741-2002001

TA6#..SED,WG

BLACK,BLACK,TRIM2#

 2
69741-2002014

TA6#..SED,WG

BLUE,BLUE,TRIM8#

 2
69741-2002016

TA6#..SED,WG

DARK BROWN,BROWN,TRIM4#

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-12010

CA60,TA6#..SED,WG

 4
Common parts
90159-60081
90159-80014
90189-06018
91611-40610
93330-16020
93520-54010
