TA62L-AEHNCC (1982)
Toyota Carina
Production
Aug 1982
-
Sep 1983
Engine
3TC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )GEN ; (8305- )LHD..EUR

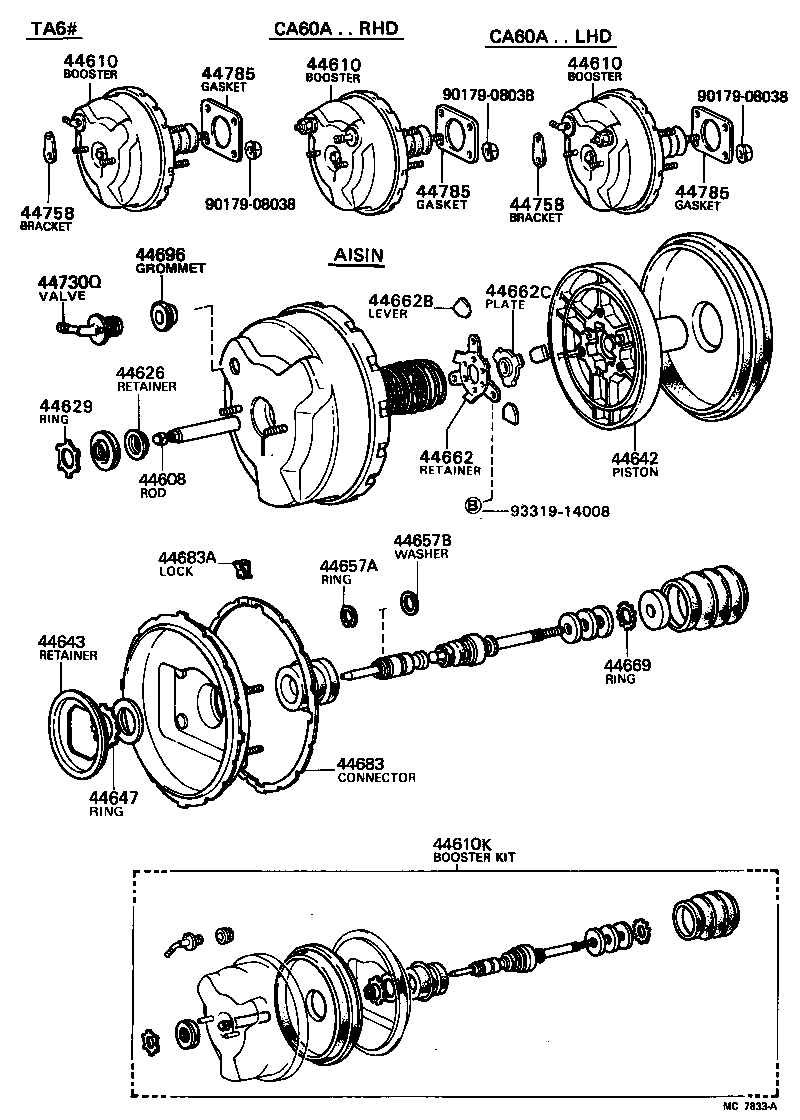

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-35100 |
CA60;TA6#..LHD |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-14630 |
TA6#..LHD |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-14630 |
TA6#..LHD |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-14630 |
TA6#..LHD |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-22190 |
TA6#..LHD |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
CA60;TA6#..LHD |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-60010 |
CA60;TA6#..LHD |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-14170 |
CA60;TA6#..LHD |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
CA60;TA6#..LHD |
1 | ||
| 44647 - RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER) | ||||
| 44629-30090 |
CA60;TA6#..LHD |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
CA60;TA6#..LHD |
1 | ||
| 44657B - WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 44645-20100 |
CA60;TA6#..LHD |
1 | ||
| 44662 - RETAINER, REACTION, NO.1 | ||||
| 44662-35100 |
CA60;TA6#..LHD |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-35100 |
CA60;TA6#..LHD |
3 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44607-22330 |
CA60;TA6#..LHD |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-60010 |
CA60;TA6#..LHD |
1 | ||
| 44683 - CONNECTOR, BOOSTER BODY | ||||
| 44682-20150 |
CA60;TA6#..LHD |
1 | ||
| 44683A - LOCK, CONNECTOR | ||||
| 44683-20100 |
CA60;TA6#..LHD |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
CA60;TA6#..LHD |
1 | ||
| 44730Q - VALVE ASSY, VACUUM CHECK, NO.2 | ||||
| 44730-20060 |
CA60,TA6#..LHD |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20090 |
CA60,TA6#..LHD VALVE NO.2 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20090 |
CA60,TA6#..LHD VALVE NO.2 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-20030 |
CA60,TA6# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-20030 |
CA60,TA6# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-20030 |
CA60,TA6# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 93319-14008 | ||||
