TA62L-AEHDCC (1981)
Toyota Carina
Production
Aug 1981
-
Aug 1982
Engine
3TC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )

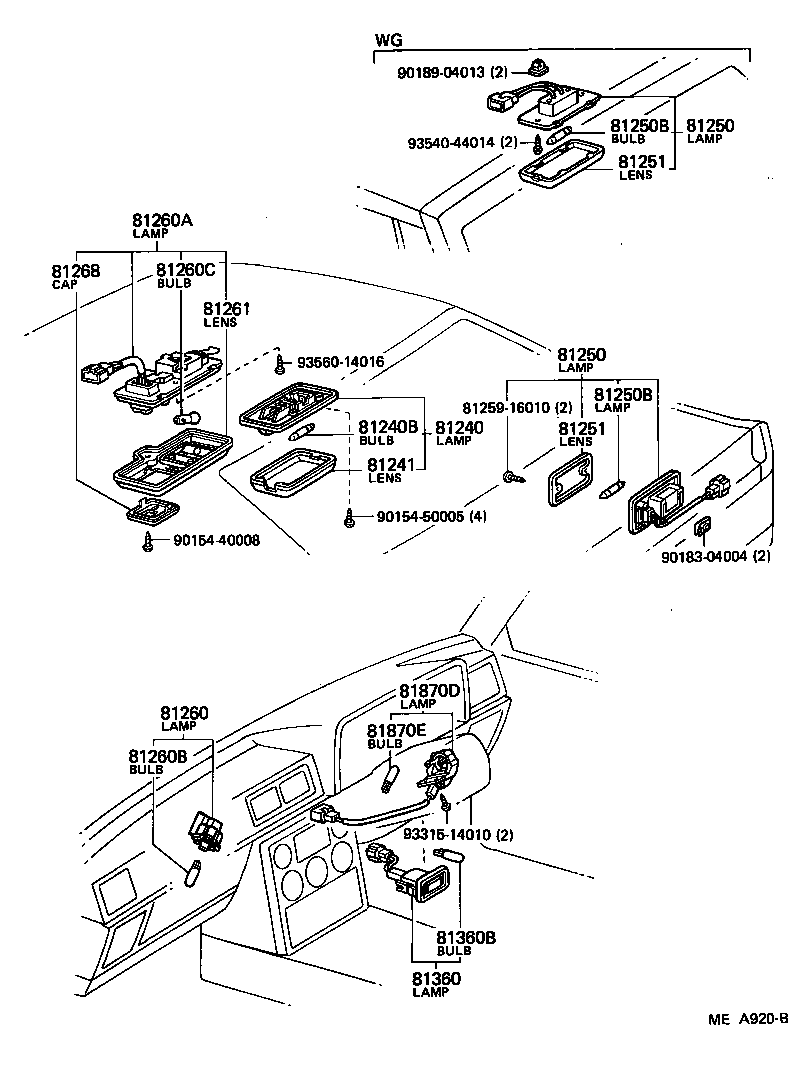

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-1601008 |
CA60,TA6#..CP,SED W/MOULDED HEADLINING,IVORY,IVORY |
1 | ||
| 81240-2006008 |
CA60,TA6#..SED,WG W/SUSPENDED HEADLINING,IVORY,IVORY |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-12100 |
CA60,TA6# 12V 10W,12V 10W |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-16010 |
CA60,TA6#..CP,SED W/MOULDED HEADLINING |
1 | ||
| 81241-20060 |
CA60,TA6#..SED,WG W/SUSPENDED HEADLINING |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81260-22070 |
CA60,TA6# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-2006008 |
CA60,TA6#..CP,SED IVORY,IVORY |
1 | ||
| 81260B - BULB(FOR GLOVE BOX) | ||||
| 90981-11018 |
CA60,TA6# 12V 1.2W W/O SOCKET,12V 1.2W |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 99132-11100 |
CA60,TA6#..CP,SED 12V 10W,12V 10W |
1 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-2006008 |
CA60,TA6#..CP,SED IVORY,IVORY |
1 | ||
| 81268 - CAP MAP LAMP | ||||
| 81268-2006008 |
CA60,TA6#..CP,SED IVORY,IVORY |
1 | ||
| Common parts | ||||
| 81259-16010 | ||||
| 90154-40008 | ||||
| 90154-50005 | ||||
| 90183-04004 | ||||
| 90189-04013 | ||||
| 93315-14010 | ||||
| 93540-44014 | ||||
| 93560-14016 | ||||
