TA60RG-AWMDSW (1981)
Toyota Carina
Production
Aug 1981
-
Sep 1983
Engine
2T
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )

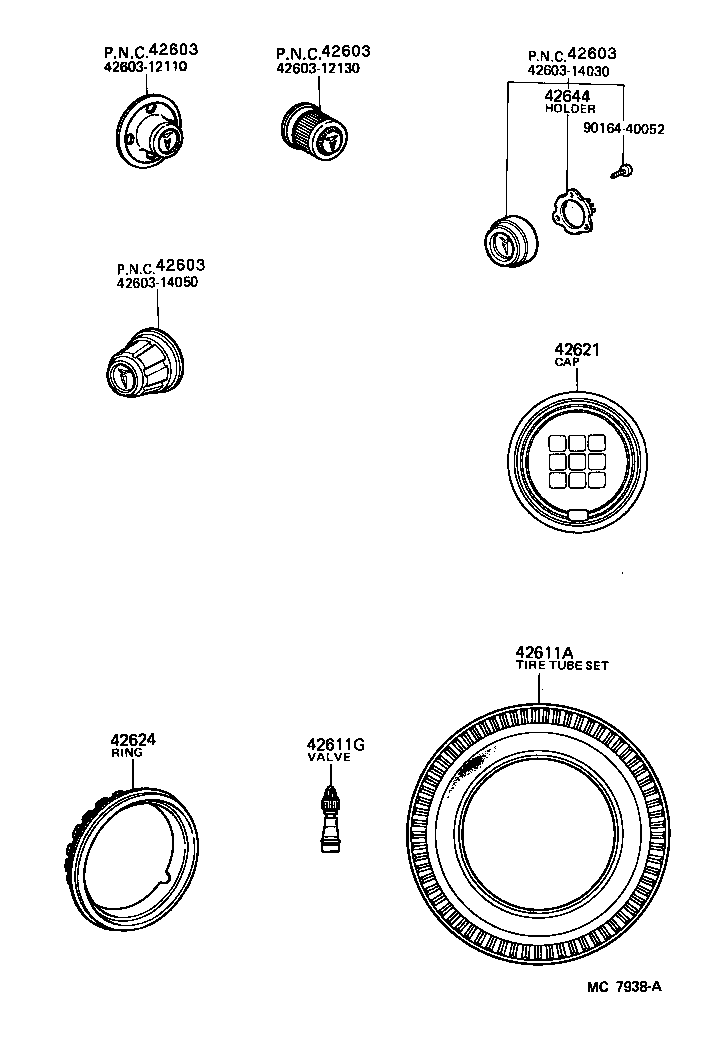

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-14050 |
CA60,TA6#..WG |
4 | ||
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-14050 |
CA60,TA6#..WG |
4 | ||
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-14050 |
CA60,TA6#..WG |
4 | ||
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-14050 |
CA60,TA6#..WG |
4 | ||
| 42611A - TIRE TUBE SET OR TUBELESS TIRE | ||||
| 42652-14140 |
CA60,TA6# 165SR13,T/L |
5 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
CA60,TA6# |
5 | ||
| Common parts | ||||
| 42603-12110 | ||||
| 42603-12130 | ||||
| 42603-14030 | ||||
| 42603-14050 | ||||
| 90164-40052 | ||||
(8108- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-14410 |
CA60,TA6#..WG 5J-13,TYPE C |
5 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01021 |
CA60,TA6# CAP NUT |
16 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03020 |
CA60,TA6# 30G,T=10,30G |
1 | ||
| 90942-03031 |
CA60,TA6# 80G,T=9.5,80G |
1 | ||
| 90942-03022 |
CA60,TA6# 40G,T=9.5,40G |
1 | ||
| 90942-03025 |
CA60,TA6# 50G,T=9.5,50G |
1 | ||
| 90942-03027 |
CA60,TA6# 60G,T=9.5,60G |
1 | ||
| 90942-03099 |
CA60,TA6# 25G,25G |
1 | ||
| 90942-03101 |
CA60,TA6# 45G,45G |
1 | ||
| 90942-03102 |
CA60,TA6# 55G,55G |
1 | ||
| 90942-03029 |
CA60,TA6# 70G,T=9.5,70G |
1 | ||
| 90942-03041 |
CA60,TA6# 10G,T=7.5,10G |
1 | ||
| 90942-03098 |
CA60,TA6# 15G,15G |
1 | ||
| 90942-03109 |
CA60,TA6# 75G,75G |
1 | ||
| 90942-03100 |
CA60,TA6# 35G,35G |
1 | ||
| 90942-03017 |
CA60,TA6# 20G,T=8,20G |
1 | ||
| 90942-03108 |
CA60,TA6# 65G,65G |
1 | ||
