TA60RG-AWKDS (1981)

Toyota Carina

Production Aug 1981 - Sep 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

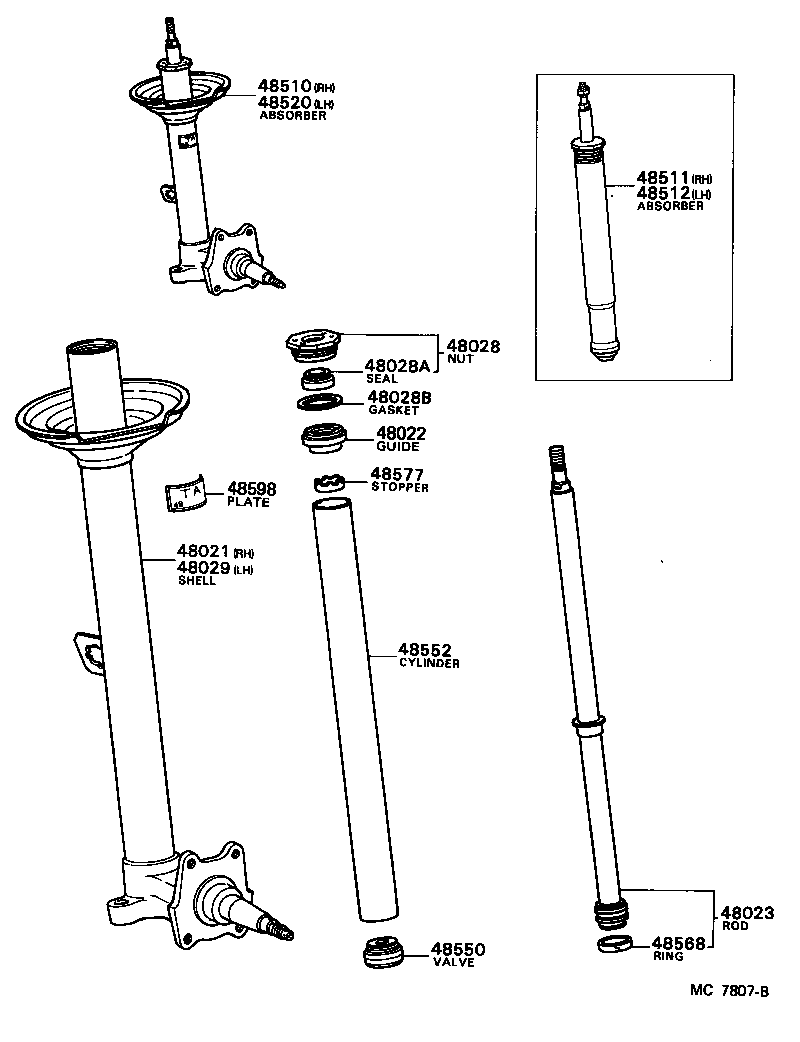

Click highlighted areas on diagram

diagram 48021 48022 48023 48028 48028A 48028B 48029 48510 48511 48512 48520 48550 48552 48568 48577 48598
Part # Description Qty Price
48021 - SHELL SUB-ASSY, W/STEERING KNUCKLE, RH
48021-14060

CA60,TA6#

 1
48022 - GUIDE SUB-ASSY, SHOCK ABSORBER ROD
48022-14010

CA60,TA6#

 2
48023 - ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)
48023-14052

CA60,TA6#..WG

 2
48028 - NUT SUB-ASSY, SHOCK ABSORBER RING
48028-14011

CA60,TA6#

 2
48028A - SEAL, OIL(FOR SHOCK ABSORBER RING NUT)
90316-22001

CA60,TA6#

 2
48028B - GASKET(FOR SHOCK ABSORBER RING NUT)
90430-43206

CA60,TA6#

 2
48029 - SHELL SUB-ASSY, W/STEERING KNUCKLE, LH
48029-14010

CA60,TA6#

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-14150

CA60,TA6#..WG

 1
48511 - ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)
48511-14140

CA60,TA6#..WG

 1
48512 - ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)
48511-14140

CA60,TA6#..WG

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-14010

CA60,TA6#..WG

 1
48550 - VALVE ASSY, SHOCK ABSORBER BASE
48550-14050

CA60,TA6#..WG

 2
48552 - CYLINDER, SHOCK ABSORBER(FOR FRONT)
48552-14010

CA60,TA6#

 2
48568 - RING, SHOCK ABSORBER PISTON
48568-22021

CA60,TA6#

 2
48568-22020

CA60,TA6#

 2
48577 - STOPPER, SHOCK ABSORBER REBOUND
48579-14011

CA60,TA6#

 2
48598 - PLATE, ABSORBER NAME
48598-14270

CA60,TA6#..WG

RH

 1
48598-14280

CA60,TA6#..WG

LH

 1

(8108- )

Click highlighted areas on diagram

diagram 48131 48132 48157 48331 48471 48660 48670 48674 48674A 48674A 48674B 48680 48680A 48680D 48684 48811 48815 48817 48817 48817 48817 48817A 48817A 48817A 48817A 48817B 48817D 48824 9017010191 9017016183 9017910016 9161160825 9418210800 9418210800 9451201600 9453101000
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-1B070

TA60..RHD

 1
48131-1B150

TA60..WG..RHD

W/COOLER

 1
48131-1B130

TA6#..RHD

 1
48132 - SPRING, FRONT COIL, LH
48131-1B110

TA6#..RHD

 1
48131-1B050

TA60..RHD

 1
48131-1B130

TA60..WG..RHD

W/COOLER

 1
48157 - INSULATOR, FRONT COIL SPRING, UPPER
48157-14010

CA60,TA6#

 2
48331 - BUMPER, FRONT SPRING, NO.1
48331-14020

CA60,TA6#

 2
48471 - SEAT, FRONT SPRING, UPPER
48044-14030

CA60,TA6#

 2
48660 - BAR ASSY, STRUT, RH
48660-19135

CA60,TA6#

 1
48670 - BAR ASSY, STRUT, LH
48670-19115

CA60,TA6#

 1
48674 - CUSHION, STRUT BAR
48674-29045

CA60,TA6#

RH

 1
48674-19058

CA60,TA6#

LH

 1
48674-19085

CA60,TA6#

RH

 1
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02036

CA60,TA6#

 4
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02036

CA60,TA6#

 4
48674B - COLLAR(FOR STRUT BAR CUSHION)
90387-16108

CA60,TA6#

 2
48680 - SUPPORT ASSY, FRONT SUSPENSION
48609-14040

CA60,TA6#

 2
48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
94182-11400

CA60,TA6#

 2
48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
90303-22049

CA60,TA6#

 2
48684 - COVER, BEARING DUST
48684-10010

CA60,TA6#

 2
48811 - BAR, STABILIZER, FRONT
48811-14230

TA60..WG..GEN

OD=22

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-14150

TA60..WG..GEN

 2
48817 - CUSHION, FRONT STABILIZER
48817-20020

CA60,TA6#

 8
48817 - CUSHION, FRONT STABILIZER
48817-20020

CA60,TA6#

 8
48817 - CUSHION, FRONT STABILIZER
48817-20020

CA60,TA6#

 8
48817 - CUSHION, FRONT STABILIZER
48817-20020

CA60,TA6#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02038

CA60,TA6#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02038

CA60,TA6#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02038

CA60,TA6#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02038

CA60,TA6#

 8
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02037

CA60,TA6#

 2
48817D - BOLT(FOR FRONT STABILIZER)
48819-20010

CA60,TA6#

 2
48824 - BRACKET, STABILIZER, FRONT
48824-24010

CA60,TA6#

 2
Common parts
90170-10191
90170-16183
90179-10016
91611-60825
94182-10800
94512-01600
94531-01000
