Toyota Carina TA60 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
GR
CARINA
TA60R-AEMDSW (1981)
5201 - FRONT BUMPER & BUMPER STAY

TA60R-AEMDSW (1981)

Toyota Carina

Production Aug 1981 - Sep 1983

Engine 2T

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8108- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-14060	CA60,TA6#	08/1981 - 09/1983	1
52021-14080	CA60,TA6#..CP,SED URETHANE BUMPER	08/1981 - 09/1983	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-14070	CA60,TA6#..CP,SED URETHANE BUMPER	08/1981 - 09/1983	1
52115-14061	CA60,TA6#	08/1981 - 09/1983	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-14041	CA60,TA6#	08/1981 - 09/1983	1
52116-14050	CA60,TA6#..CP,SED URETHANE BUMPER	08/1981 - 09/1983	1
52119A - COVER, FRONT BUMPER
52119-14090	CA60,TA6#..EUR W/*HC	08/1981 - 09/1983	1
52119-14120	CA60,TA6#..(CP,SED)..EUR URETHANE BUMPER,W/*HC	08/1981 - 09/1983	1
52119-14080	CA60,TA6# W/O *HC	08/1982 - 09/1983	1
52119-14110	TA62..EUG;CA60,TA60..CP,SED URETHANE BUMPER,W/O *HC	08/1981 - 08/1982	1
52119-14110	CA60,TA6#..CP,SED URETHANE BUMPER,W/O *HC	08/1982 - 09/1983	1
52119-14080	CA60,TA60;TA62..EUG W/O *HC	08/1981 - 08/1982	1
52701 - MOULDING SUB-ASSY, FRONT BUMPER
52711-14030	CA60,TA6#..DLX,XE	08/1981 - 09/1983	1
Common parts
90119-10240
90468-04029
91655-40620
91655-61030
93568-15012

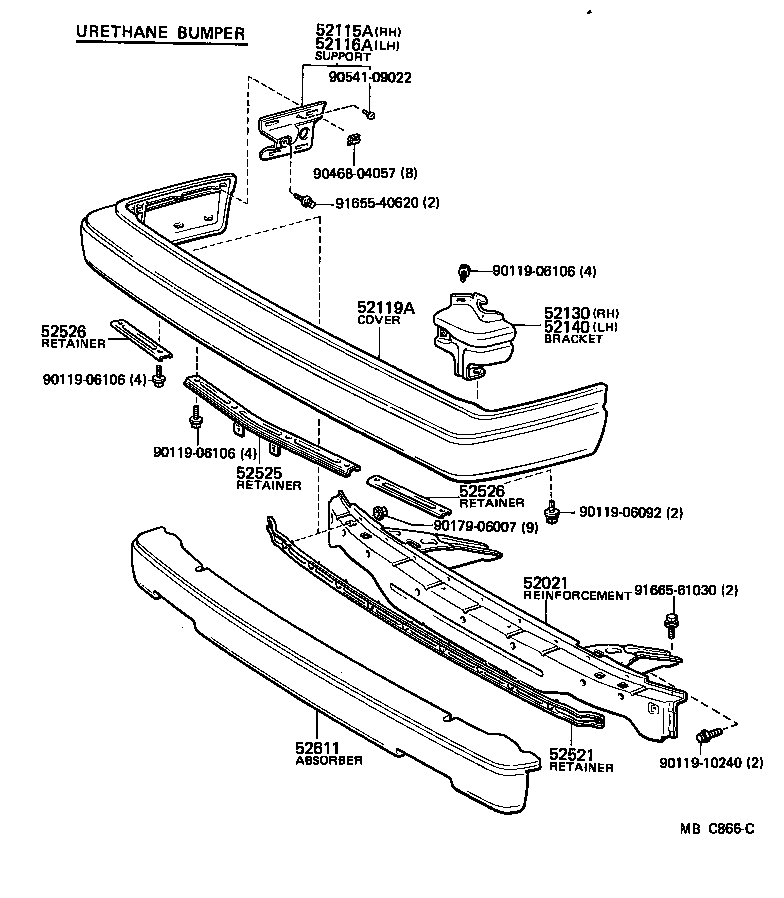

(8108- )CP,SED

Click highlighted areas on diagram

Part #	Description	Period	Qty
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-14060	CA60,TA6#	08/1981 - 09/1983	1
52021-14080	CA60,TA6#..CP,SED URETHANE BUMPER	08/1981 - 09/1983	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-14070	CA60,TA6#..CP,SED URETHANE BUMPER	08/1981 - 09/1983	1
52115-14061	CA60,TA6#	08/1981 - 09/1983	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-14041	CA60,TA6#	08/1981 - 09/1983	1
52116-14050	CA60,TA6#..CP,SED URETHANE BUMPER	08/1981 - 09/1983	1
52119A - COVER, FRONT BUMPER
52119-14090	CA60,TA6#..EUR W/*HC	08/1981 - 09/1983	1
52119-14120	CA60,TA6#..(CP,SED)..EUR URETHANE BUMPER,W/*HC	08/1981 - 09/1983	1
52119-14080	CA60,TA6# W/O *HC	08/1982 - 09/1983	1
52119-14110	TA62..EUG;CA60,TA60..CP,SED URETHANE BUMPER,W/O *HC	08/1981 - 08/1982	1
52119-14110	CA60,TA6#..CP,SED URETHANE BUMPER,W/O *HC	08/1982 - 09/1983	1
52119-14080	CA60,TA60;TA62..EUG W/O *HC	08/1981 - 08/1982	1
52130 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH
52145-14100	CA60,TA6#..CP,SED URETHANE BUMPER	08/1981 - 09/1983	1
52140 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH
52146-14070	CA60,TA6#..CP,SED URETHANE BUMPER	08/1981 - 09/1983	1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-14040	CA60,TA6#..CP,SED URETHANE BUMPER	08/1981 - 09/1983	1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52072-14010	CA60,TA6#..CP,SED URETHANE BUMPER	08/1981 - 09/1983	1
52526 - RETAINER, FRONT BUMPER, LOWER SIDE
52526-14020	CA60,TA6#..CP,SED URETHANE BUMPER	08/1981 - 09/1983	2
52526 - RETAINER, FRONT BUMPER, LOWER SIDE
52526-14020	CA60,TA6#..CP,SED URETHANE BUMPER	08/1981 - 09/1983	2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-14050	CA60,TA6#..CP,SED URETHANE BUMPER	08/1981 - 09/1983	1
Common parts
90119-06092
90119-06106
90119-10240
90179-06007
90468-04057
90541-09022
91655-40620
91665-61030

TA60R-AEMDSW (1981)

(8108- )

(8108- )CP,SED
