TA60R-AEMDSW (1981)
Toyota Carina
Production
Aug 1981
-
Sep 1983
Engine
2T
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )2T,3T..EUG

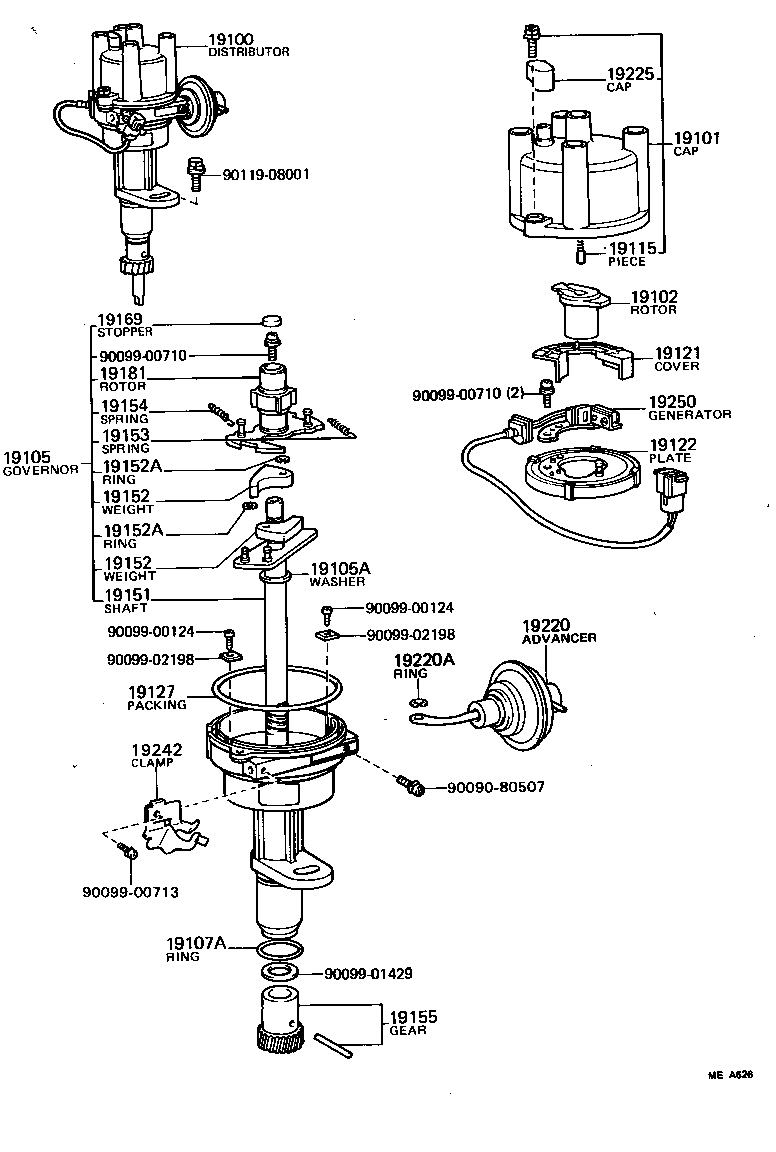

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-26330 |
2T,3T..TA6#..EUG |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-27050 |
2T,3T#..TA6#..EUR |
1 | ||
| 19101-27051 |
2T,3T#..TA6#..EUR |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-38210 |
2T,3T#..TA6#..EUR |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-26330 |
2T,3T..TA6#..EUG |
1 | ||
| 19105A - WASHER(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01385 |
2T,3T#..TA6# T=2.5,T=2.5 |
1 | ||
| 90099-01386 |
2T,3T#..TA6# T=2.7,T=2.7 |
1 | ||
| 90099-01387 |
2T,3T#..TA6# T=2.9,T=2.9 |
1 | ||
| 90099-01412 |
2T,3T#..TA6# T=2.3,T=2.3 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14020 |
2T,3T#..TA6# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
2T,3T#..TA6# |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-38210 |
2T,3T#..TA6#..EUR |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-88262 |
2T,3T#..TA6#..EUR |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-15021 |
2T,3T#..TA6#..EUR |
1 | ||
| 19151 - SHAFT, GOVERNOR | ||||
| 19151-27050 |
2T,3T#..TA6#..EUR |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-44170 |
2T,3T#..TA6# |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-44170 |
2T,3T#..TA6# |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07109 |
2T,3T#..TA6# |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07109 |
2T,3T#..TA6# |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-26330 |
2T,3T..TA6#..EUG |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-26330 |
2T,3T..TA6#..EUG |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-25011 |
2T,3T#..TA6# |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-32010 |
2T,3T#..TA6# |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-26280 |
2T,3T..TA6#..EUG |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-26330 |
2T,3T..TA6#..EUG |
1 | ||
| 19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER) | ||||
| 90099-07109 |
2T,3T#..TA6#..EUR |
1 | ||
| 19225 - CAP, RUBBER | ||||
| 19225-41140 |
2T,3T#..TA6#..EUR |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-28060 |
2T,3T#..TA6#..EUR |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19250-18050 |
2T,3T#..TA6#..EUR |
1 | ||
| Common parts | ||||
| 90090-80507 | ||||
| 90099-00124 | ||||
| 90099-00710 | ||||
| 90099-00713 | ||||
| 90099-01429 | ||||
| 90099-02198 | ||||
| 90119-08001 | ||||
