TA60LG-AWMDSW (1981)
Toyota Carina
Production
Aug 1981
-
Sep 1983
Engine
2T
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )WG

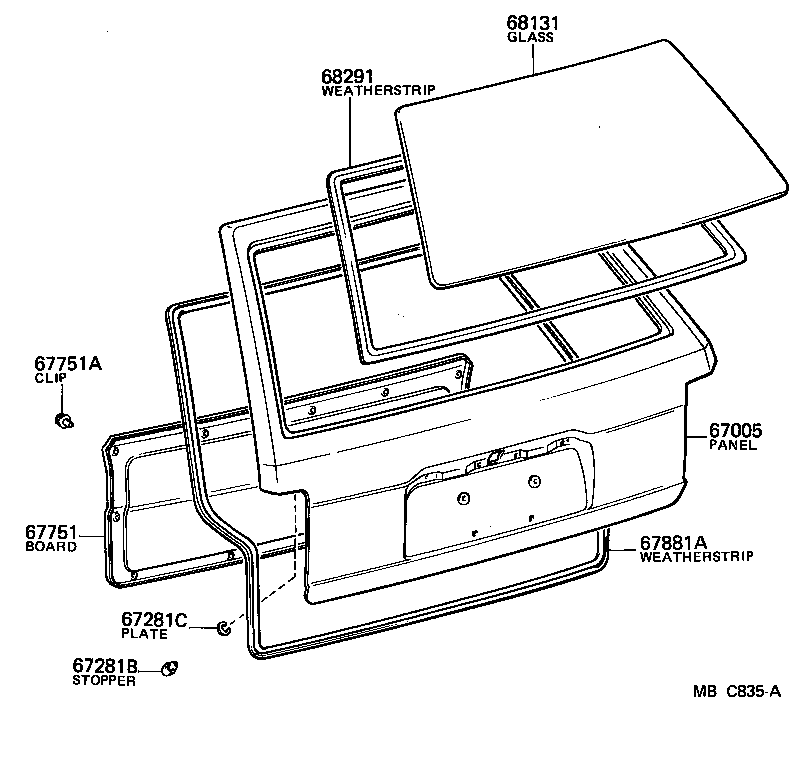

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-91C17 |
CA60,TA6#..WG |
1 | ||
| 67005-91C18 |
CA60,TA6#..WG W/RR WIPER |
1 | ||
| 67281B - STOPPER, BACK DOOR, LOWER | ||||
| 67281-13030 |
CA60,TA6#..WG |
4 | ||
| 67281C - PLATE, BACK DOOR LOWER STOPPER | ||||
| 90213-12020 |
CA60,TA6#..WG T=2.3 |
1 | ||
| 90213-12019 |
CA60,TA6#..WG T=1.0 |
1 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 64780-91C0101 |
CA60,TA6#..WG BLACK,BLACK,TRIM2# |
1 | ||
| 64781-91C0106 |
CA60,TA6#..WG DARK BROWN,BROWN,TRIM4# |
1 | ||
| 64780-91C0106 |
CA60,TA6#..WG DARK BROWN,BROWN,TRIM4# |
1 | ||
| 64781-91C0101 |
CA60,TA6#..WG BLACK,BLACK,TRIM2# |
1 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-0601716 |
CA60,TA6#..WG DARK BROWN,BROWN,TRIM4# |
11 | ||
| 90467-0601701 |
CA60,TA6#..WG BLACK,BLACK,TRIM2# |
11 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-91702 |
CA60,TA6#..WG |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-91C02 |
CA60,TA60..WG *EHTT,T=3.5,T=3.5,*TT,W/*DEF |
1 | ||
| 68105-91C03 |
CA60,TA6#..WG..LHD..EUR *EHTT,T=3.5,T=3.5,*TT,W/HEAVY *DEF |
1 | ||
| 68105-91C02 |
CA60,TA6#..WG *EHTT,T=3.5,T=3.5,*TT,W/*DEF |
1 | ||
| 68131-91C02 |
CA60,TA60..WG T=3.5,*TT |
1 | ||
| 68291 - WEATHERSTRIP, BACK DOOR GLASS | ||||
| 68291-91C02 |
CA60,TA6#..WG |
1 | ||
