TA60LG-AWKDSW (1981)

Toyota Carina

Production Aug 1981 - Sep 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )SED,WG

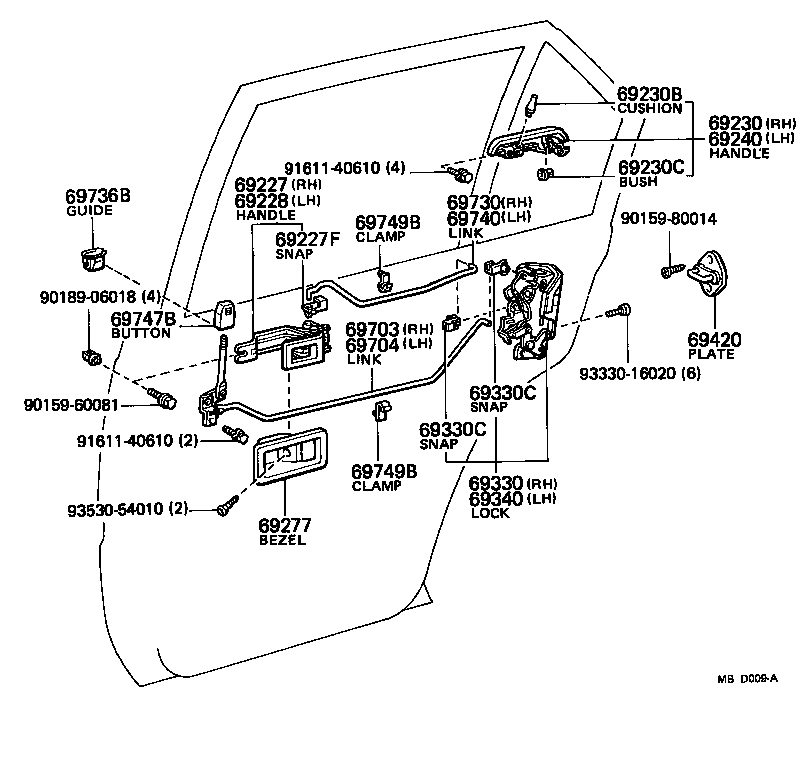

Click highlighted areas on diagram

diagram 69227 69227F 69228 69230 69230B 69230C 69240 69277 69330 69330C 69330C 69340 69420 69703 69704 69730 69736B 69740 69747B 69749B 69749B 9015960081 9015980014 9018906018 9161140610 9161140610 9333016020 9353054010
Part # Description Qty Price
69227 - HANDLE, REAR DOOR INSIDE, RH
69205-1404106

CA60,TA6#..SED,WG

DARK BROWN,BROWN,TRIM4#

 1
69205-1404006

CA60,TA6#..SED,WG

DARK BROWN,BROWN,TRIM4#

 1
69205-1404001

CA60,TA6#..SED,WG

BLACK,BLACK,TRIM2#

 1
69205-1404101

CA60,TA6#..SED,WG

BLACK,BLACK,TRIM2#

 1
69227F - SNAP(FOR REAR DOOR INSIDE HANDLE)
69759-24070

CA60,TA6#..SED,WG

LH

 1
69759-20070

CA60,TA6#..SED,WG

LH

 1
69759-14050

CA60,TA6#..SED,WG

RH

 1
69759-20060

CA60,TA6#..SED,WG

RH

 1
69228 - HANDLE, REAR DOOR INSIDE, LH
69206-1404001

CA60,TA6#..SED,WG

BLACK,BLACK,TRIM2#

 1
69206-1404101

CA60,TA6#..SED,WG

BLACK,BLACK,TRIM2#

 1
69206-1404006

CA60,TA6#..SED,WG

DARK BROWN,BROWN,TRIM4#

 1
69206-1404106

CA60,TA6#..SED,WG

DARK BROWN,BROWN,TRIM4#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-14030

CA60,TA6#..SED,WG

 1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90541-03021

CA60,TA6#..SED,WG

 2
69230C - BUSH(FOR REAR DOOR OUTSIDE HANDLE)
90386-06030

CA60,TA6#..SED,WG

 2
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-14030

CA60,TA6#..SED,WG

 1
69277 - BEZEL, REAR DOOR INSIDE HANDLE
69277-1604001

CA60,TA6#..SED,WG

BLACK,BLACK,TRIM2#

 2
69277-1604006

CA60,TA6#..SED,WG

DARK BROWN,BROWN,TRIM4#

 2
69330 - LOCK ASSY, REAR DOOR, RH
69330-14050

CA60,TA6#..SED,WG

 1
69330-14051

CA60,TA6#..SED,WG

 1
69330C - SNAP(FOR REAR DOOR LOCK)
69759-20040

CA60,TA6#..SED,WG

RH,OPEN LINK;LH,LOCKING LINK

 1
69759-24060

CA60,TA6#..SED,WG

RH,LOCKING LINK;LH,OPEN LINK

 1
69759-24050

CA60,TA6#..SED,WG

RH,OPEN LINK;LH,LOCKING LINK

 1
69759-20050

CA60,TA6#..SED,WG

RH,LOCKING LINK;LH,OPEN LINK

 1
69330C - SNAP(FOR REAR DOOR LOCK)
69759-20040

CA60,TA6#..SED,WG

RH,OPEN LINK;LH,LOCKING LINK

 1
69759-24060

CA60,TA6#..SED,WG

RH,LOCKING LINK;LH,OPEN LINK

 1
69759-24050

CA60,TA6#..SED,WG

RH,OPEN LINK;LH,LOCKING LINK

 1
69759-20050

CA60,TA6#..SED,WG

RH,LOCKING LINK;LH,OPEN LINK

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-14050

CA60,TA6#..SED,WG

 1
69340-14051

CA60,TA6#..SED,WG

 1
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-14040

CA60,TA6#..SED,WG

 2
69410-12050

CA60,TA6#..SED,WG

 2
69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69770-14020

CA60,TA6#..SED,WG

 1
69770-14021

CA60,TA6#..SED,WG

 1
69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69780-14021

CA60,TA6#..SED,WG

 1
69780-14020

CA60,TA6#..SED,WG

 1
69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH
69713-14020

CA60,TA6#..SED,WG

 1
69713-14021

CA60,TA6#..SED,WG

 1
69736B - GUIDE, REAR DOOR LOCK LINK
69736-22021

CA60,TA6#..SED,WG

 2
69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH
69714-14020

CA60,TA6#..SED,WG

 1
69714-14021

CA60,TA6#..SED,WG

 1
69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR)
69741-2002016

TA6#..SED,WG

DARK BROWN,BROWN,TRIM4#

 2
69741-2002001

TA6#..SED,WG

BLACK,BLACK,TRIM2#

 2
69741-3201004

CA60,TA6#..SED,WG

BLUE,BLUE,TRIM8#

 2
69741-3201016

CA60,TA6#..SED,WG

DARK BROWN,BROWN,TRIM4#

 2
69741-3201001

CA60,TA6#..SED,WG

BLACK,BLACK,TRIM2#

 2
69741-2002014

TA6#..SED,WG

BLUE,BLUE,TRIM8#

 2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-12010

CA60,TA6#..SED,WG

 4
69749-20010

CA60,TA6#..SED,WG

 4
69749-30020

CA60,TA6#..SED,WG

 4
69749B - CLAMP, REAR DOOR LOCK LINK
69749-12010

CA60,TA6#..SED,WG

 4
69749-20010

CA60,TA6#..SED,WG

 4
69749-30020

CA60,TA6#..SED,WG

 4
Common parts
90159-60081
90159-80014
90189-06018
91611-40610
93330-16020
93530-54010
