TA60LG-AWKDSW (1981)

Toyota Carina

Production Aug 1981 - Sep 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

Click highlighted areas on diagram

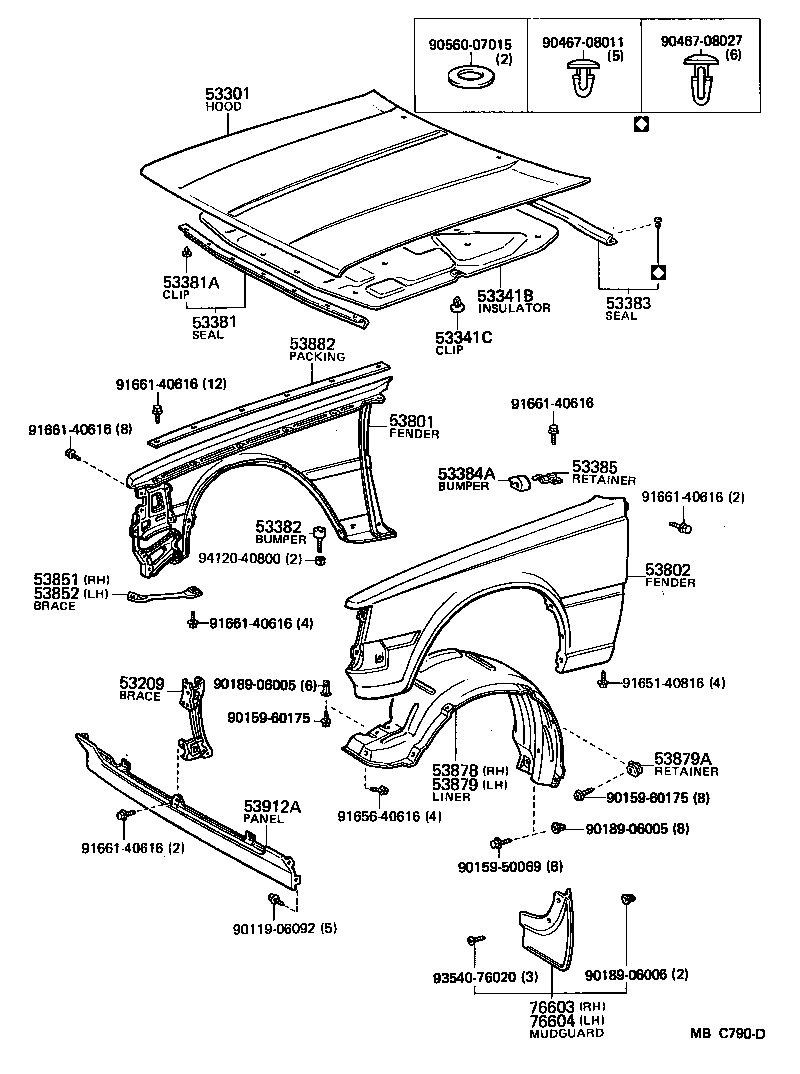

diagram 53209 53301 53341B 53341C 53381 53381A 53382 53383 53384A 53385 53801 53802 53851 53852 53878 53879 53879A 53882 53912A 76603 76604 9011906092 9015950069 9015960175 9015960175 9018906005 9018906005 9018906006 9046708011 9046708027 9056007015 9165140816 9165640616 9166140616 9166140616 9166140616 9166140616 9166140616 9166140616 9354076020 9412040800
Part # Description Qty Price
53209 - BRACE SUB-ASSY, HOOD LOCK
53208-14130

CA60,TA6#

 1
53301 - HOOD SUB-ASSY
53301-14190

CA60,TA6#

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-14090

CA60,TA6#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

CA60,TA6#

 7
53382 - BUMPER, HOOD, FRONT
53382-20011

CA60,TA6#

 2
53383 - SEAL, HOOD TO COWL TOP
53383-14080

CA60,TA6#

 1
53384A - BUMPER, FENDER TO HOOD
53384-14030

CA60,TA6#

 2
53385 - RETAINER, HOOD, BUMPER
53385-14010

CA60,TA6#

RH

 1
53386-14010

CA60,TA6#

LH

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-14590

CA60,TA6#..EUR

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-14550

CA60,TA6#..EUR

 1
53851 - BRACE, FRONT FENDER TO RADIATOR SUPPORT, RH
53851-14010

CA60,TA6#

 1
53852 - BRACE, FRONT FENDER TO RADIATOR SUPPORT, LH
53852-14010

CA60,TA6#

 1
53878 - LINER, FRONT FENDER, RH
53875-14090

CA60,TA6#

 1
53879 - LINER, FRONT FENDER, LH
53876-14090

CA60,TA6#

 1
53879A - RETAINER, FRONT FENDER LINER
53879-14010

CA60,TA6#

 8
53882 - PACKING, FRONT FENDER MAIN
53882-14090

CA60,TA6#

 2
53912A - PANEL, FRONT VALANCE, LOWER
53911-14130

CA60,TA6#

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76603-19055

TA60..4F..EUG;CA60,TA6#..3FC,5F;TA60..SED..4F..GEN

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76604-19055

TA60..4F..EUG;CA60,TA6#..3FC,5F;TA60..SED..4F..GEN

 1
Common parts
90119-06092
90159-50069
90159-60175
90189-06005
90189-06006
90467-08011
90467-08027
90560-07015
91651-40816
91656-40616
91661-40616
93540-76020
94120-40800
