TA60LG-AWKDS (1981)

Toyota Carina

Production Aug 1981 - Sep 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )WG

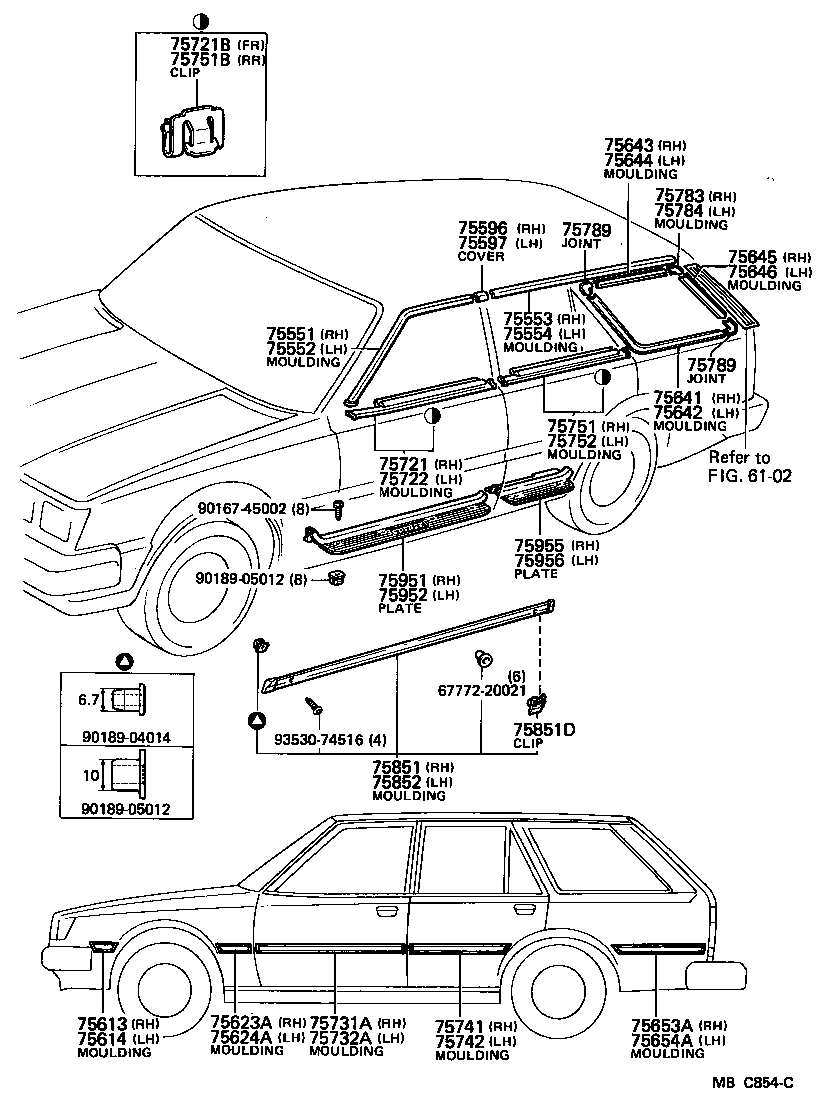

Click highlighted areas on diagram

diagram 6102 6777220021 75551 75552 75553 75554 75596 75597 75613 75614 75623A 75624A 75641 75642 75643 75644 75645 75646 75653A 75654A 75721 75721B 75722 75731A 75732A 75741 75742 75751 75751B 75752 75783 75784 75789 75789 75851 75851D 75852 75951 75952 75955 75956 9016745002 9018904014 9018905012 9018905012 9353074516
Part # Description Qty Price
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-91C01

CA60,TA6#..WG

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-91C01

CA60,TA6#..WG

 1
75553 - MOULDING, ROOF DRIP SIDE FINISH, RH
75553-91C01

CA60,TA6#..WG

 1
75554 - MOULDING, ROOF DRIP SIDE FINISH, LH
75554-91C01

CA60,TA6#..WG

 1
75596 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH
75596-91C01

CA60,TA6#..WG

 1
75597 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH
75596-91C01

CA60,TA6#..WG

 1
75613 - MOULDING, FRONT FENDER, OUTSIDE RH
75611-14070

CA60,TA6#

W/P.P.BUMPER

 1
75614 - MOULDING, FRONT FENDER, OUTSIDE LH
75611-14070

CA60,TA6#

W/P.P.BUMPER

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75623-14040

CA60,TA6#

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75624-14050

CA60,TA6#

 1
75641 - MOULDING, QUARTER WINDOW, OUTSIDE FRONT RH
75641-91C01

CA60,TA6#..WG

 1
75642 - MOULDING, QUARTER WINDOW, OUTSIDE FRONT LH
75642-91C01

CA60,TA6#..WG

 1
75643 - MOULDING, QUARTER WINDOW, OUTSIDE UPPER RH
75643-91C01

CA60,TA6#..WG

 1
75644 - MOULDING, QUARTER WINDOW, OUTSIDE UPPER LH
75643-91C01

CA60,TA6#..WG

 1
75645 - MOULDING, QUARTER WINDOW, OUTSIDE REAR RH
75645-91C01

CA60,TA6#..WG

 1
75646 - MOULDING, QUARTER WINDOW, OUTSIDE REAR LH
75645-91C01

CA60,TA6#..WG

 1
75653A - MOULDING, QUARTER, OUTSIDE REAR RH
75653-91C02

CA60,TA6#..WG

 1
75654A - MOULDING, QUARTER, OUTSIDE REAR LH
75654-91C02

CA60,TA6#..WG

 1
75721 - MOULDING, FRONT DOOR BELT, RH
75710-14150

CA60,TA6#..SED,WG

 1
75721B - CLIP(FOR FRONT DOOR BELT MOULDING SET)
68211-14080

CA60,TA6#..SED,WG

 10
75722 - MOULDING, FRONT DOOR BELT, LH
75720-14150

CA60,TA6#..SED,WG

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-14160

CA60,TA6#..SED,WG

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-14140

CA60,TA6#..SED,WG

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-14070

CA60,TA6#..SED,WG

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-14070

CA60,TA6#..SED,WG

 1
75751 - MOULDING, REAR DOOR BELT, RH
75730-14030

CA60,TA6#..SED,WG

 1
75751B - CLIP (FOR REAR DOOR BELT MOULDING SET)
68211-14080

CA60,TA6#..SED,WG

 8
75752 - MOULDING, REAR DOOR BELT, LH
75740-14070

CA60,TA6#..SED,WG

 1
75783 - MOULDING, QUARTER WINDOW, UPPER RH
62791-91C01

CA60,TA6#..WG

 1
75784 - MOULDING, QUARTER WINDOW, UPPER LH
62791-91C01

CA60,TA6#..WG

 1
75789 - JOINT, QUARTER WINDOW MOULDING
62795-91C01

CA60,TA6#..WG

UPR

 1
62796-91C01

CA60,TA6#..WG

LWR

 1
75789 - JOINT, QUARTER WINDOW MOULDING
62795-91C01

CA60,TA6#..WG

UPR

 1
62796-91C01

CA60,TA6#..WG

LWR

 1
75851 - MOULDING, ROCKER PANEL, RH
75850-19135

CA60,TA6#

 1
75851D - CLIP(FOR ROCKER PANEL MOULDING SET)
75867-14050

CA60,TA6#

 6
75852 - MOULDING, ROCKER PANEL, LH
75860-19155

CA60,TA6#

 1
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-1409001

CA60,TA6#..SED,WG

BLACK,BLACK,TRIM2#

 1
67913-1409006

CA60,TA6#..SED,WG

DARK BROWN,BROWN,TRIM4#

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67914-1408001

CA60,TA6#..SED,WG

BLACK,BLACK,TRIM2#

 1
67914-1408006

CA60,TA6#..SED,WG

DARK BROWN,BROWN,TRIM4#

 1
75955 - PLATE, REAR DOOR SCUFF, OUTSIDE RH
67917-1403001

CA60,TA6#..SED,WG

BLACK,BLACK,TRIM2#

 1
67917-1403006

CA60,TA6#..SED,WG

DARK BROWN,BROWN,TRIM4#

 1
75956 - PLATE, REAR DOOR SCUFF, OUTSIDE LH
67918-1403006

CA60,TA6#..SED,WG

DARK BROWN,BROWN,TRIM4#

 1
67918-1403001

CA60,TA6#..SED,WG

BLACK,BLACK,TRIM2#

 1
Common parts
67772-20021
90167-45002
90189-04014
90189-05012
93530-74516
Linked diagrams
6102
