TA60LG-AWKDS (1981)

Toyota Carina

Production Aug 1981 - Sep 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )TA6#..MTM

Click highlighted areas on diagram

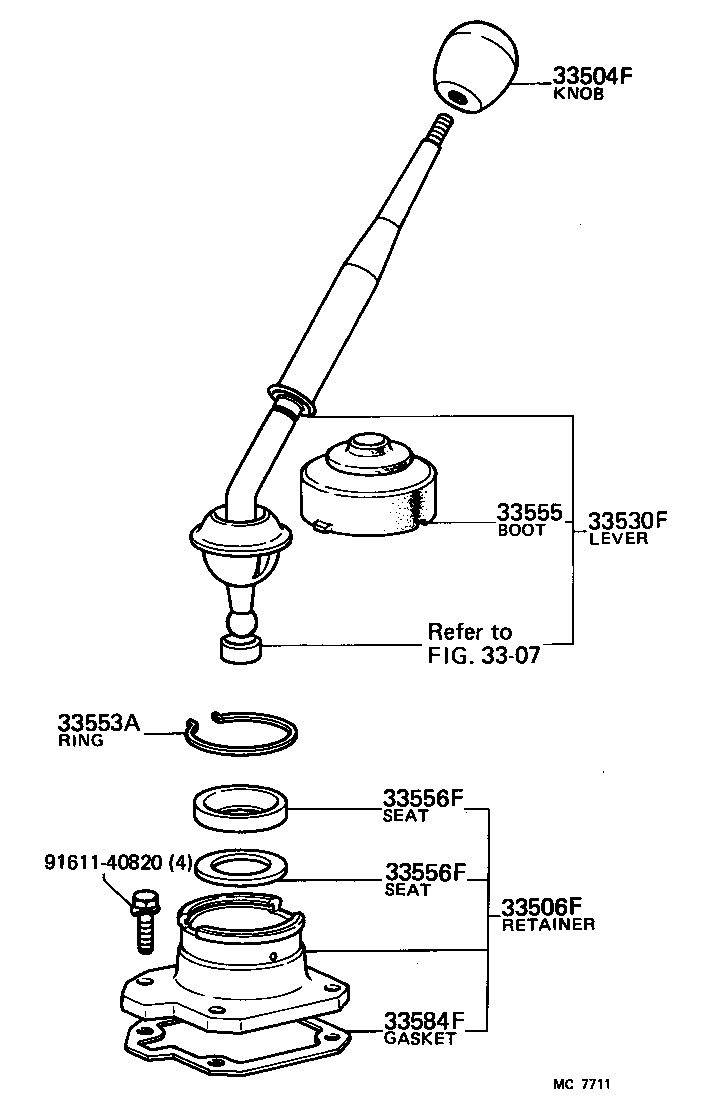

diagram 3307 33504F 33506F 33530F 33553A 33555 33556F 33556F 33584F 9161140820
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-1404016

TA60..4F

DARK BROWN,BROWN,TRIM4#

 1
33504-1404001

TA60..4F

BLACK,BLACK,TRIM2#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33570-14021

TA6#..MTM

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-14261

TA6#..LHD..MTM

 1
33553A - RING, SNAP (FOR SHIFT LEVER SPRING SHEET)
90521-49003

TA6#..MTM

 1
33555 - BOOT, SHIFT LEVER
33555-12090

TA6#..MTM

 1
33556F - SEAT, TRANSMISSION SHIFT LEVER BALL
33556-14010

TA60..MTM

T=13.5

 1
33556-14020

TA60..MTM

T=3.0

 1
33556F - SEAT, TRANSMISSION SHIFT LEVER BALL
33556-14010

TA60..MTM

T=13.5

 1
33556-14020

TA60..MTM

T=3.0

 1
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33584-20010

TA6#..MTM

 1
Common parts
91611-40820
Linked diagrams
3307
